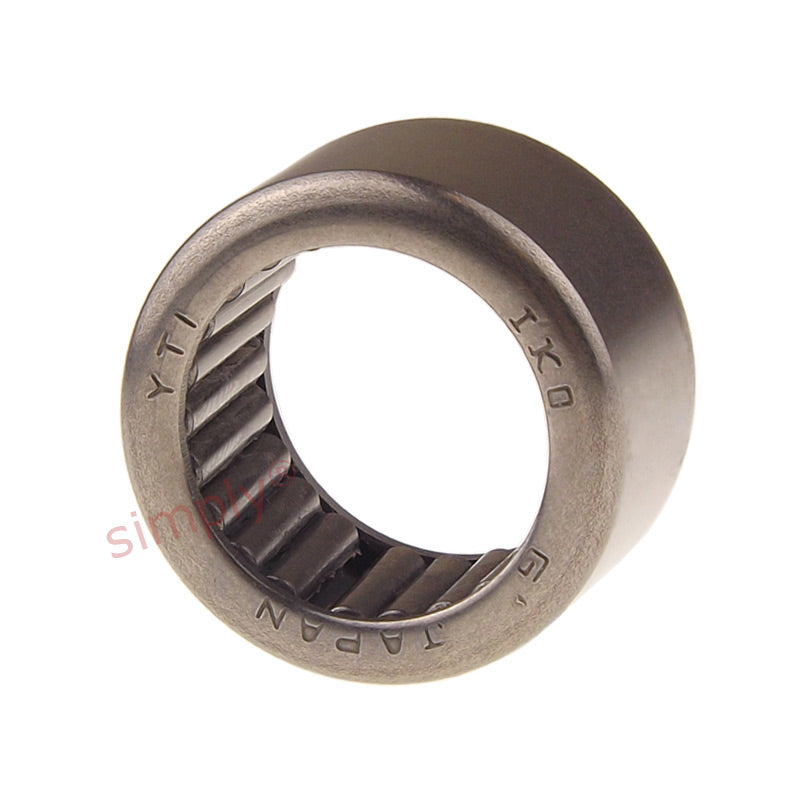

• IKO YT202820 Drawn Cup Open End Type Full Complement Needle Roller Bearing 20x28x20mm
1 1

SKU: YT.202820

IKO YT202820 Drawn Cup Open End Type Full Complement Needle Roller Bearing 20x28x20mm

IKO YT202820 Drawn Cup Open End Type Full Complement Needle Roller Bearing 20x28x20mm
$17.56 ex VAT
$17.56 ex VAT
Sale Sold out

In stock

Price Break
10+ $15.63
19+ $14.75
29+ $14.57
39+ $14.40
49+ $14.22
74+ $14.05
99+ $13.17
199+ $12.99
249+ $12.82
499+ $12.64
999+ $12.29
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

YT and YTL Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs.
Brand / Quality:
IKO - High Quality
Inside Diameter:
20mm
Outside Diameter:
28mm
Width:
20mm
Technical
Fw 20mm
D 28mm
C 20mm
Dynamic load 26800 N
Static load 44600 N
Inner ring IRT1520-2
Weight 37.5 g
