Oiless Bronze Bushings
What are oilless bronze bushings?

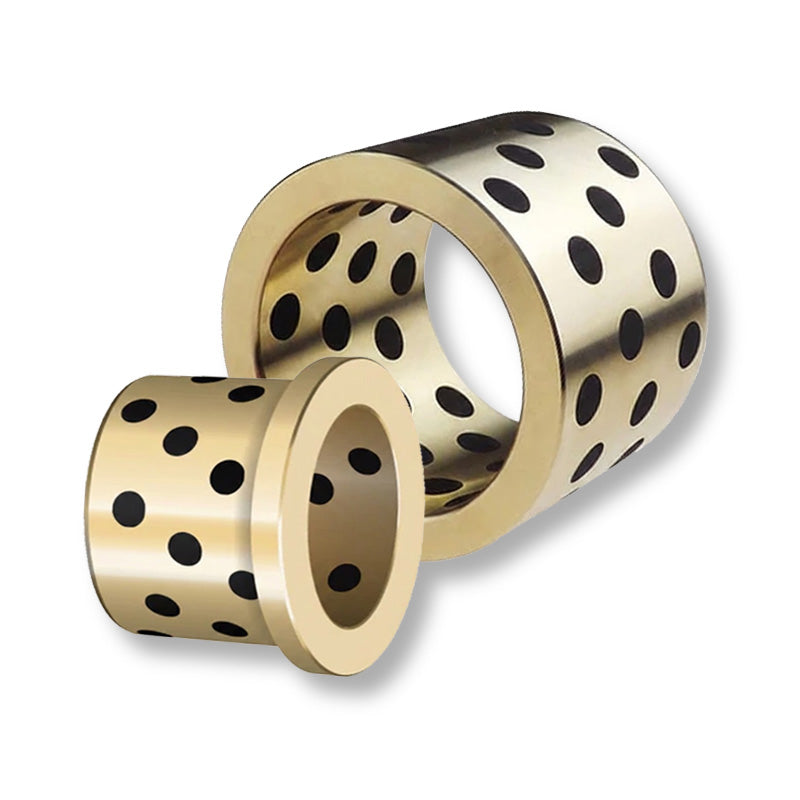

Oilless bronze bushings are self-lubricating plain bearings made from solid, high-strength bronze with solid lubricant, usually graphite, set into the bearing surface. The graphite inserts are arranged across the bore in a pattern of plugs or pockets. As the shaft moves, a fine layer of graphite is transferred onto the shaft and bush, forming a dry lubricating film. This lets the bush run without oil or grease, even under heavy loads, at extreme temperatures, and in wet or dirty conditions.
A standard oilless bronze bushing is made up of:
- A solid body of high-strength bronze, such as CuZn25Al6Mn4, which carries heavy loads
- Solid graphite lubricant inserts, set into holes or grooves in the bearing surface
- A plain cylindrical shape, or a cylinder with a flange at one end
- A precision-machined bore and outside diameter.
The solid graphite inserts make the bush lubricated for life.
- The graphite covers enough of the bearing surface to keep a lubricating film on the shaft as it moves.
- Because the lubricant is solid, it does not drain away, dry out, or wash out like oil or grease.
Oilless bronze bushings are sized by their bore, outside diameter, and length, with flange diameter and thickness on flanged bushes.
Why are oilless bronze bushings essential?
Many bearings work where oil and grease are impractical, such as at high temperatures where lubricants burn off, underwater or in washdown areas where they wash out, or in hard-to-reach places where regular greasing is not possible. Oilless bronze bushings solve these problems. They carry heavy loads at slow speeds, cope with shock and oscillating movement, and keep working without any maintenance.
The high-strength bronze resists corrosion and chemicals, and the solid lubricant works across a very wide temperature range, from cryogenic temperatures as low as -200°C up to around +300°C. This makes oilless bushes ideal for heavy machinery, outdoor equipment, and harsh environments.
Typical applications include:
- Construction and earthmoving machinery pivots
- Injection moulding machines and press tools
- Steel, foundry, and high-temperature equipment
- Hydraulic and water control gates, dams, and locks
- Cranes, lifting equipment, and hoists
- Agricultural machinery pivots and linkages
- Food processing and washdown equipment
- Automotive and marine equipment
The main types of oilless bronze bushings

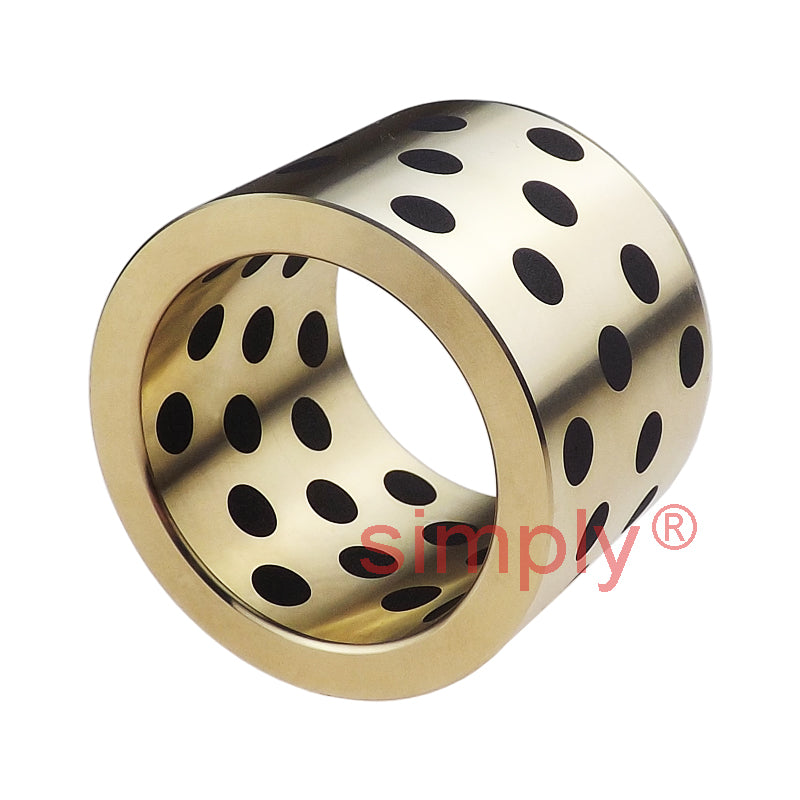

- Plain oilless bronze bushes - Straight, cylindrical bushes with graphite inserts in the bore. They are pressed into a housing and support the shaft radially.

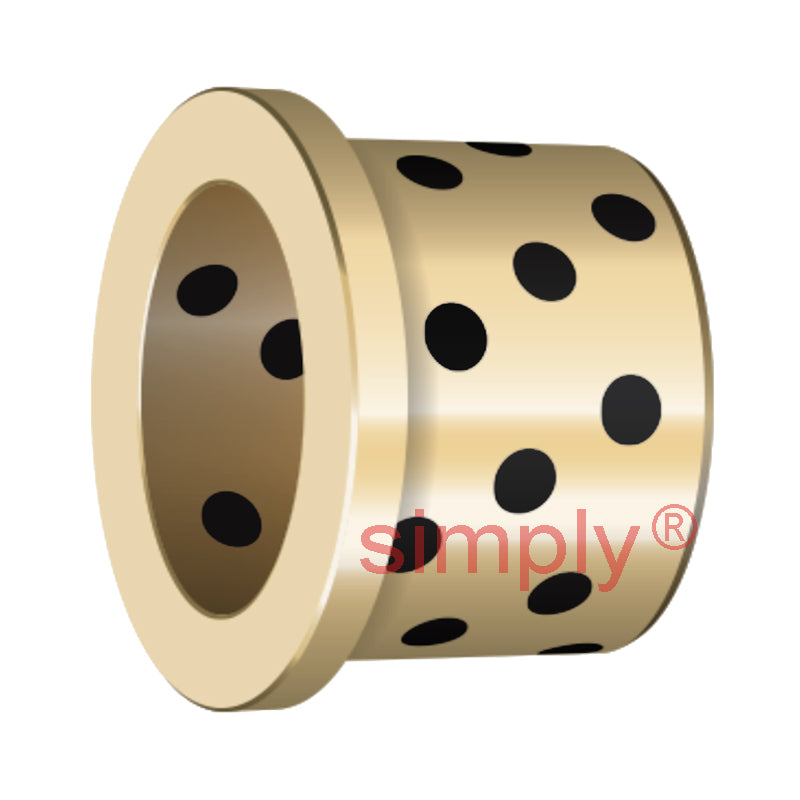

- Flanged oilless bronze bushes - Bushes with a flange at one end, which locates the bush in the housing and takes axial loads against a shoulder or collar. The flange face often has graphite inserts too.
- Oilless thrust washers - Flat bronze washers with graphite inserts, used to take axial loads between moving parts.
- Oilless wear plates and slide plates - Flat bronze plates with graphite inserts, used for sliding surfaces in moulds, presses, and machinery.
How to choose the right oilless bronze bushings?
- Size - Choose a bush with a bore to suit the shaft, an outside diameter to suit the housing, and a length to suit the space available.
- Plain or flanged - Choose a flanged bush where the bush needs locating in the housing or where there is an axial load. Choose a plain bush where there is only a radial load.
- Load and speed - Oilless bronze bushes are designed for heavy loads at low to moderate speeds, and for oscillating or intermittent movement. For high continuous speeds, a different bearing type may be better.
- Temperature - Choose oilless bushes where temperatures are too high or too low for oil and grease. They work from around -200°C up to around +300°C.
- Environment - Choose oilless bushes for dry, wet, humid, dirty, or washdown conditions, and where corrosion resistance is needed.
- Shaft - Use a hard, smooth shaft for the longest life.
Essential references and specialised ranges
How the numbering works:
Oilless bronze bushes are usually referenced by a type code followed by the bore, outside diameter, and length, in millimetres:
WMOF101415 = flanged oilless bronze bush, 10mm bore, 14mm outside diameter, 15mm long
WMOF9011080 = flanged oilless bronze bush, 90mm bore, 110mm outside diameter, 80mm long
The flange diameter and thickness are given in the product details for each flanged bush.
Suffixes:
F = flanged bush
Suffix codes vary between manufacturers, so check the supplier’s catalogue for the exact meaning.
FAQ - All you need to know about oilless bronze bushings
How does an oilless bronze bush lubricate itself?
The graphite inserts in the bearing surface transfer a thin film of graphite onto the shaft as it moves. This dry film lubricates the bearing, so no oil or grease is needed.
What is the difference between oilless and oil filled bushings?
Oil filled bushings are made from porous sintered bronze soaked in oil, and suit lighter loads and higher speeds. Oilless bronze bushings are made from solid high-strength bronze with graphite inserts, and suit heavier loads, slower speeds, extreme temperatures, and wet or dirty conditions.
Do oilless bronze bushes need greasing?
No. They are designed to run dry and are lubricated for life. In some applications, a small amount of grease at installation can help the bush bed in, but it is not needed for normal running.
Can oilless bushes be used underwater?
Yes. Because the lubricant is solid graphite, it is not washed out by water, so oilless bushes are widely used in wet, underwater, and washdown applications.
How do I fit an oilless bronze bush?
Press the bush squarely into the housing using a press and a fitting mandrel, never by hammering directly on it. Check the shaft runs freely once the bush is fitted, and avoid machining the bore, which could damage the graphite inserts.
How do I identify the bush I need?
Check the reference on the old bush or in the machine’s parts list. If it cannot be read, measure the bore, outside diameter, and length with callipers, and on a flanged bush, the flange diameter and thickness.
How can I tell if an oilless bronze bush needs replacing?
Warning signs include:
- Squeaking, grinding, or noise from the joint
- Play or wobble in the shaft or pin
- Graphite inserts that are worn away or missing
- Visible wear, scoring, or an oval-shaped bore
- The bush moving or turning in its housing
- Heavy wear or scoring on the shaft
