What is a bevel gear?

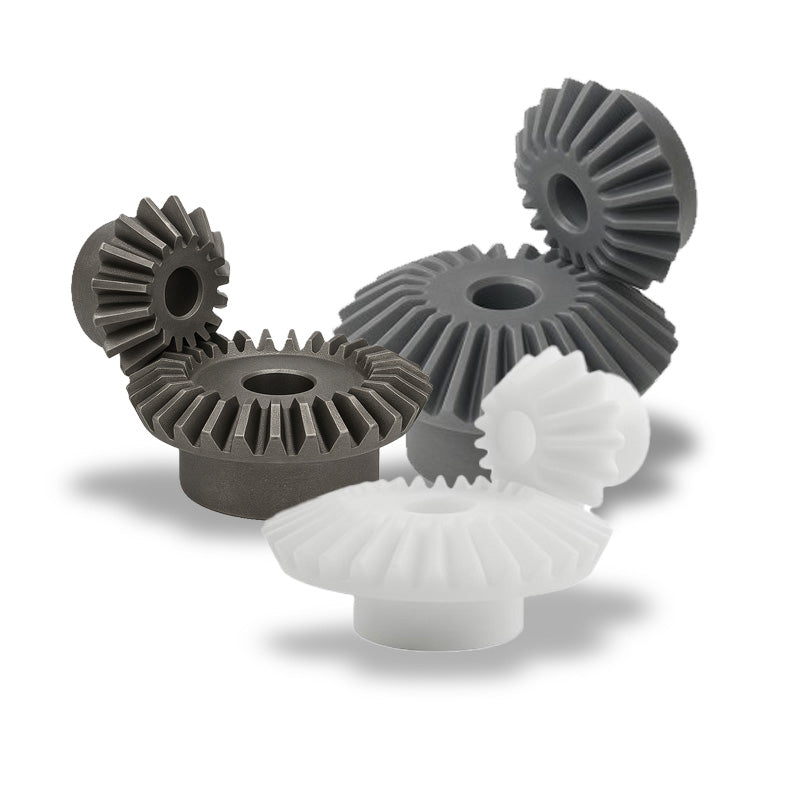

A bevel gear is a cone-shaped gear used to transmit power and motion between two shafts that meet at an angle, most commonly at 90 degrees. The teeth are cut on a conical surface, so when two bevel gears mesh, they turn the drive through a corner. Bevel gears are used wherever the direction of a drive needs to change, such as in gearboxes, differentials, hand drills, machinery drives, and right-angle mechanisms.
Bevel gears are usually supplied as matched pairs, made up of a larger gear and a smaller pinion. The ratio between the number of teeth on each gear sets the speed change. For example, a 2:1 pair turns the output at half the speed of the input, while increasing the torque. A pair with equal-sized gears and a 1:1 ratio is called a mitre gear pair.
A typical bevel gear has:
- Conical toothed face - teeth cut on a cone-shaped surface, which mesh with the matching gear
- Hub or boss - the body of the gear that holds the bore, often with space for a set screw or keyway
- Bore - the hole that fits the shaft, either a plain pilot bore or a finished bore
- Back face - the flat rear face, often used as a reference for setting the gear position
Bevel gears are usually described by:
- Module - the tooth size in metric gears, such as 1.0 or 1.5 module. A larger module means larger, stronger teeth
- Ratio - such as 1:1, 1.5:1, 2:1, 3:1, or 4:1, which sets the change in speed and torque
- Number of teeth - on both the gear and pinion
- Pitch circle diameter - the effective working diameter of the gear, which for metric gears is the module multiplied by the number of teeth
- Bore - the diameter of the shaft hole
- Material - such as acetal, nylon, or steel
For example, a 1.5 module bevel gear pair with a 1.5:1 ratio has 1.5 module teeth, and the larger gear turns at two thirds of the speed of the pinion.
Key features:
- Changes drive direction - transmits power between shafts at an angle, usually 90 degrees
- Speed and torque change - different ratios reduce or increase speed and torque
- Compact right-angle drive - turns a drive through a corner in a small space
- Matched pairs - supplied as pairs for correct meshing and ratio
- Range of materials - plastic gears for light, quiet drives, and steel gears for heavier loads
- Machinable bores - many gears have pilot bores that can be machined to suit the shaft
In simple terms, a bevel gear is a cone-shaped gear that lets one shaft drive another at a right angle, while changing speed and torque if needed.
Why are bevel gears essential?
Bevel gears are essential because many machines need to change the direction of a drive. Motors, engines, and handles often sit at a different angle to the part being driven, and bevel gears provide a simple, compact, and reliable way to turn power through a corner. They can also reduce speed and increase torque at the same time, making them a key part of many gearboxes and mechanisms.
Their main benefits are:
- Right-angle power transmission - changes the direction of a drive efficiently
- Speed reduction and torque increase - ratios allow speed and torque to be matched to the load
- Compact design - fits right-angle drives into small spaces
- Positive drive - meshing teeth give a reliable drive with no slipping
- Efficient - transmits power with low losses when correctly set up
- Versatile - suits light-duty mechanisms through to heavy-duty gearboxes
- Quiet options - plastic and spiral bevel gears give smoother, quieter running
Bevel gears are used across a wide range of industries and applications, including:
- Gearboxes - right-angle and reduction gearboxes
- Differentials - vehicle and machinery drive axles
- Agricultural machinery - drives, gearboxes, and implements
- Packaging and food machinery - right-angle drives on production lines
- Machine tools - drives, feeds, and adjustment mechanisms
- Hand tools and power tools - drills, grinders, and hand-operated mechanisms
- Automation and robotics - compact right-angle drives
- Printing and textile machinery - drive and timing mechanisms
- Model engineering and hobby projects - small right-angle drives and mechanisms
The main types of bevel gears
Bevel gears are usually grouped by tooth design, ratio, and material.
By tooth design:
- Straight bevel gears - have straight teeth running towards the apex of the cone. They are the most common type, simple, economical, and suitable for low to moderate speeds
- Spiral bevel gears - have curved, angled teeth that engage gradually, giving smoother, quieter running and higher load capacity at higher speeds
- Zerol bevel gears - have curved teeth with no spiral angle, combining some of the smoothness of spiral gears with the simpler thrust loads of straight gears
- Hypoid gears - similar to spiral bevel gears, but with offset shafts that do not intersect, commonly used in vehicle differentials
By ratio:
- Mitre gears - matched pairs with a 1:1 ratio, used to change direction without changing speed
- Reduction pairs - pairs with ratios such as 1.5:1, 2:1, 3:1, and 4:1, used to reduce speed and increase torque, or the reverse
By material:
- Acetal (POM) bevel gears - strong, tough, and low friction plastic gears that run quietly, resist wear, and can often run with little or no lubrication. Ideal for light and medium-duty drives
- Nylon bevel gears - lightweight, quiet, and resistant to wear, used for light-duty drives
- Steel bevel gears - strong and durable, used for higher loads and heavy-duty drives
- Hardened steel bevel gears - for high loads, high speeds, and long service life
- Stainless steel and brass bevel gears - for corrosive environments and specialist applications
By bore:
- Pilot bore gears - supplied with a small starter bore that can be machined to suit the shaft, often with a keyway added
- Finished bore gears - supplied ready-bored to a standard shaft size, sometimes with a keyway or set screw
How to choose the right bevel gears?
Choosing the right bevel gears means matching them to the drive, the load, and the layout. Work through these points in order:
- Shaft angle - most bevel gears are designed for shafts at 90 degrees. Check the angle your drive needs
- Ratio - choose a ratio that gives the speed and torque change you need, or a 1:1 mitre pair to change direction only
- Module - choose a module large enough for the load. Larger modules give stronger teeth
- Torque and speed - check the gears can handle the torque and speed of the application
- Tooth design - choose straight bevel gears for general use, or spiral bevel gears for smoother, quieter running at higher speeds and loads
- Material - choose acetal or nylon gears for light, quiet, low-maintenance drives, and steel gears for higher loads
- Bore - check the bore suits your shaft, or choose a pilot bore gear that can be machined to size
- Space - check the pitch circle diameter and overall dimensions fit the available space
- Matched pairs - always use the gear and pinion as a matched pair with the same module and ratio
- Environment - consider temperature, moisture, and chemicals, especially with plastic gears
- Quality and brand - choose gears from reputable suppliers for accurate tooth profiles and smooth meshing
How to fit bevel gears
Fitting bevel gears correctly is important for smooth, quiet running:
- Support the shafts rigidly - make sure both shafts are well supported by bearings, close to the gears, to prevent deflection
- Check the shaft angle - make sure the shafts meet at the correct angle, usually 90 degrees
- Set the mounting distance - position each gear along its shaft so the cone apexes meet at the same point, following the manufacturer’s mounting distance
- Set the backlash - leave a small amount of free play between the teeth to prevent binding, adjusting the gear positions if needed
- Allow for thrust - bevel gears create axial thrust along the shafts, so use shoulders, collars, or thrust bearings to hold the gears in position
- Secure the gears - fix the gears to their shafts with keys, set screws, or other suitable methods
- Lubricate - apply suitable grease or oil, especially for steel gears. Plastic gears may need little or no lubrication
- Check the mesh - turn the gears by hand to check for smooth, even meshing without tight spots
FAQ - All you need to know about bevel gears
What is a bevel gear used for?
A bevel gear transmits power between two shafts at an angle, usually 90 degrees, allowing a drive to change direction and, if needed, change speed and torque.
What is the difference between a bevel gear and a mitre gear?
A mitre gear is a type of bevel gear pair where both gears have the same number of teeth, giving a 1:1 ratio. It changes direction without changing speed.
What does the ratio on a bevel gear pair mean?
The ratio shows how the speed changes between the gears. For example, a 2:1 ratio means the larger gear turns at half the speed of the pinion, with roughly twice the torque.
What does module mean?
Module describes the size of the teeth. A larger module means larger, stronger teeth. Both gears in a pair must have the same module.
How do I work out the pitch circle diameter?
For metric gears, the pitch circle diameter is the module multiplied by the number of teeth. For example, a 1.5 module gear with 30 teeth has a pitch circle diameter of 45 mm.
What is acetal, and why use acetal bevel gears?
Acetal, also known as POM, is a strong, tough engineering plastic with low friction and good wear resistance. Acetal gears run quietly, resist corrosion, and can often run with little or no lubrication, making them ideal for light and medium-duty drives.
Can I mix gears from different pairs?
No. Bevel gears should be used as matched pairs with the same module, ratio, and pressure angle. Mixing gears can cause poor meshing, noise, and rapid wear.
What is the difference between straight and spiral bevel gears?
Straight bevel gears have straight teeth and suit low to moderate speeds. Spiral bevel gears have curved teeth that engage gradually, giving smoother, quieter running and higher load capacity.
Do bevel gears create thrust loads?
Yes. Bevel gears push along their shafts as they turn, so they need shoulders, collars, or thrust bearings to hold them in position.
Can I bore out a bevel gear?
Yes, if it has a pilot bore. Pilot bore gears can be machined to the shaft size, and a keyway can be added. Make sure the bore is concentric with the teeth.
Why are my bevel gears noisy or wearing quickly?
Common causes include incorrect mounting distance, too little or too much backlash, misaligned or flexing shafts, overloading, lack of lubrication, or using unmatched gears. Check the setup and replace worn gears as a pair.
