PTFE Sealing Rings & Cord
What are PTFE sealing rings and cord?

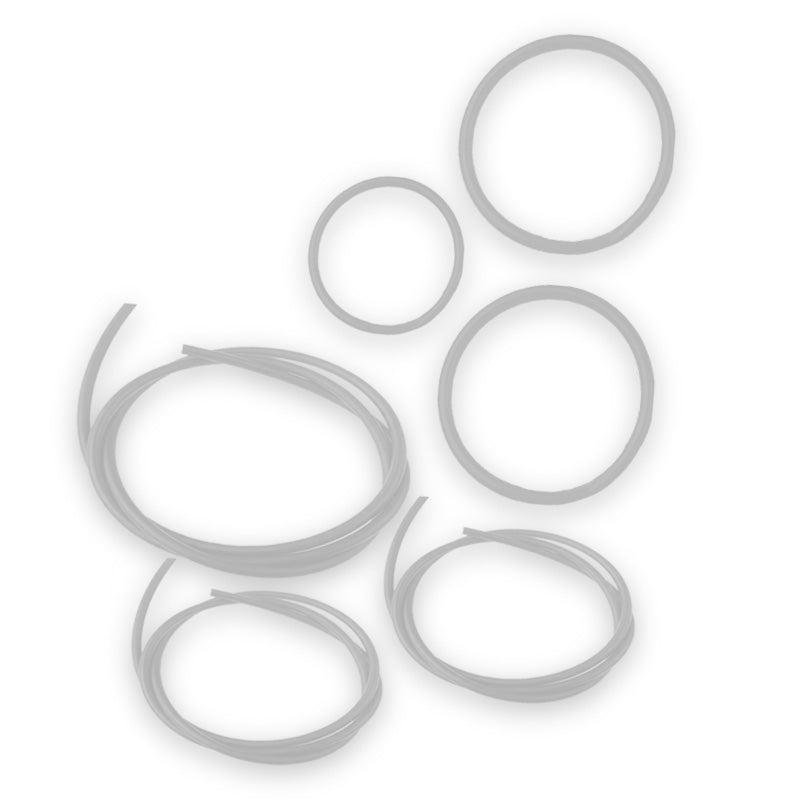

PTFE sealing rings are O-rings made from PTFE (polytetrafluoroethylene), and PTFE cord is the same material supplied as a continuous length. PTFE is not a rubber but a tough, slippery plastic polymer. It is the most chemically inert of all O-ring materials, has extremely low friction, and works across a very wide temperature range, which makes it the choice for aggressive chemicals, food processing, and very hot or very cold conditions.
A standard PTFE sealing ring or cord has these main features:
- A solid, round cross section, measured as its section diameter
- PTFE polymer, which resists almost all chemicals and does not absorb moisture
- A very smooth, low-friction surface that resists sticking
- A hardness of around 55 on the Shore D scale, much harder than rubber O-rings.
PTFE is rigid compared with rubber.
- It does not stretch or spring back like nitrile or EPDM, so it cannot be stretched over a shaft or into a closed groove in the same way.
- Because of this, PTFE seals are often used with a supporting energiser ring, such as a rubber O-ring behind them, which pushes the PTFE against the sealing surface.
PTFE O-rings are referenced by section and bore. For example, a 3x84 PTFE O-ring has a 3mm section and an 84mm bore.
Why are PTFE sealing rings and cord essential?
Some fluids attack every type of rubber, and some jobs run too hot or too cold for rubber seals to survive. PTFE solves these problems. It resists almost all acids, alkalis, solvents, and fuels, and works from extremely low temperatures up to well over 200°C, so it can seal where other O-rings would swell, harden, or dissolve.
PTFE is also non-flammable, does not absorb moisture, and is suitable for food environments. Its low friction makes it ideal for moving seals, where it reduces wear and the force needed to move the shaft or piston.
Typical applications include:
- Chemical processing and pumping equipment
- Valves and fittings handling aggressive fluids
- Food, drink, and pharmaceutical machinery
- Hydraulic and pneumatic cylinders, with an energiser ring
- Very high or very low temperature equipment
- Laboratory and analytical equipment
- Pumps, engines, and gearboxes handling aggressive fluids
- Static seals in flanges and covers
The main types of PTFE sealing rings and cord
- Solid PTFE O-rings - Rings made entirely from PTFE, in set section sizes and bores. They give the highest chemical resistance and suit static seals and open or split grooves.
- PTFE O-ring cord - PTFE supplied as a continuous length, which can be cut to size for seals and packing, especially in larger or non-standard sizes.
- PTFE seals with energiser rings - PTFE rings backed by a rubber O-ring, which pushes the PTFE against the sealing surface. This combines PTFE’s low friction and chemical resistance with the springiness of rubber.
How to choose the right PTFE sealing ring or cord?
- Chemical resistance - Choose PTFE where the fluid attacks rubber seals, or where the seal must resist a wide range of chemicals.
- Temperature - PTFE suits a very wide temperature range, from around -185°C up to around +232°C, covering both cryogenic and high-temperature jobs.
- Groove and fitting - PTFE does not stretch easily, so check the groove can be opened, split, or assembled around the ring. For closed grooves, a rubber O-ring may be easier to fit.
- Sealing force - In low-pressure or moving applications, consider an energiser ring behind the PTFE to keep it pressed against the sealing surface.
- Section and bore - Choose a section diameter that suits the groove, and a bore that matches the shaft or groove diameter.
Essential references and specialised ranges
How the numbering works:
PTFE O-rings are referenced by their section diameter and bore, in mm:
3x84 PTFE = 3mm section, 84mm bore
3x136 PTFE = 3mm section, 136mm bore
3x196 PTFE = 3mm section, 196mm bore
The outside diameter is the bore plus twice the section, so a 3x84 ring has a 90mm outside diameter.
PTFE cord is referenced by its section diameter.
Suffixes:
PTFE = polytetrafluoroethylene polymer
55 = hardness on the Shore D scale
Suffix codes vary between manufacturers, so check the supplier’s catalogue for the exact meaning.
FAQ - All you need to know about PTFE sealing rings and cord
What is the difference between PTFE and rubber O-rings?
Rubber O-rings, such as nitrile, EPDM, and FKM, are flexible and spring back after being squeezed. PTFE is a harder, more rigid polymer, so it has far better chemical and temperature resistance and lower friction, but it does not stretch or spring back in the same way.
Why are PTFE seals used with an energiser ring?
Because PTFE is rigid, it does not push itself against the sealing surface as strongly as rubber does. A rubber energiser ring fitted behind it provides that pressure, so the PTFE seals reliably, especially at low pressure.
Is PTFE safe for food use?
PTFE is widely used in food environments, as it is inert and does not absorb moisture. Check the product is supplied as food-grade if this is required for your application.
Do PTFE seals need lubrication?
PTFE has a naturally low-friction surface, so it often needs little or no lubrication. In moving applications, a light film of a compatible lubricant can still help reduce wear.
How do I fit a PTFE O-ring?
Clean the groove and remove any burrs or sharp edges. Because PTFE does not stretch easily, fit it into open or split grooves where possible, or warm it slightly to make it more flexible. Avoid twisting or kinking the ring, as it will not recover like rubber.
How do I identify the size I need?
Measure the section diameter and bore of the old ring with callipers, or measure the groove it fits in. Remember that PTFE ring sizes are usually given as section first, then bore.
How can I tell if a PTFE seal needs replacing?
Warning signs include:
- Leaks around the seal
- A ring that has flattened or crept out of shape under pressure
- Scratches, nicks, or cuts on the sealing surface
- Cracks or kinks from fitting
- Wear on moving seals
