• IKO YT2025 Drawn Cup Open End Type Full Complement Needle Roller Bearing 20x27x25mm
1 1

SKU: YT.2025

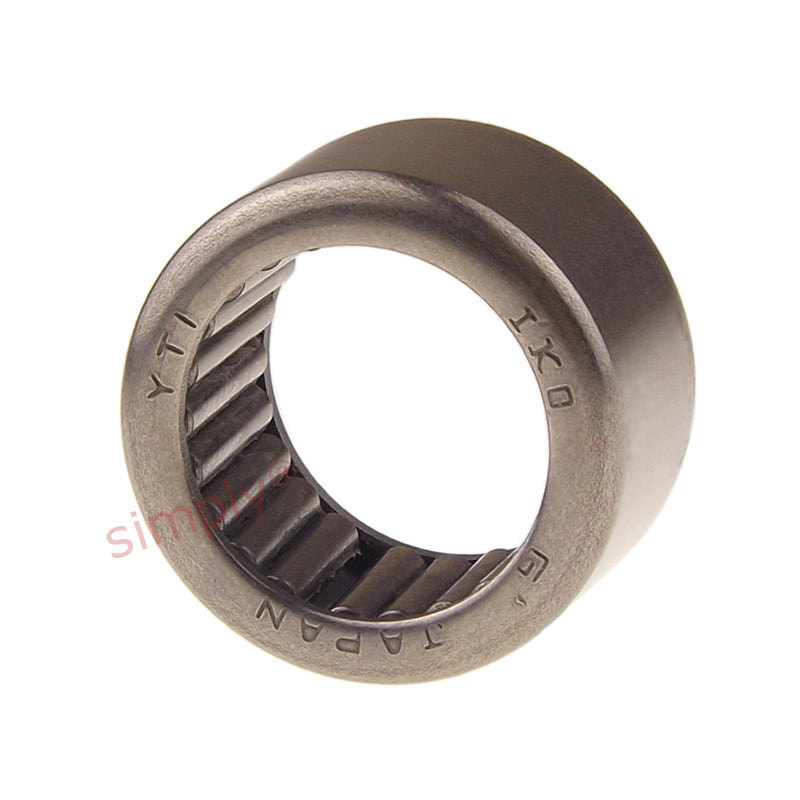

IKO YT2025 Drawn Cup Open End Type Full Complement Needle Roller Bearing 20x27x25mm

IKO YT2025 Drawn Cup Open End Type Full Complement Needle Roller Bearing 20x27x25mm
$21.85 ex VAT
$21.85 ex VAT
Sale Sold out

In stock

Price Break
10+ $19.45
19+ $18.35
29+ $18.14
39+ $17.92
49+ $17.70
74+ $17.48
99+ $16.39
199+ $16.17
249+ $15.95
499+ $15.73
999+ $15.30
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

YT and YTL Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs.
Brand / Quality:
IKO - High Quality
Inside Diameter:
20mm
Outside Diameter:
27mm
Width:
25mm
Technical
Fw 20mm
D 27mm
C 25mm
Dynamic load 30000 N
Static load 58300 N
Inner ring IRT1525-2
Weight 41 g
