SKU: YT.2015

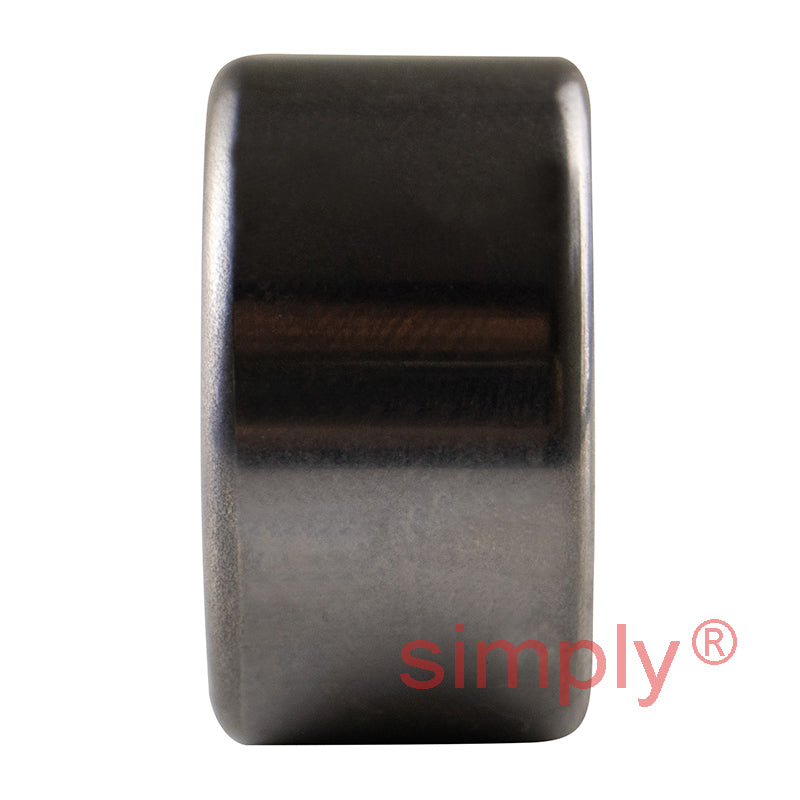

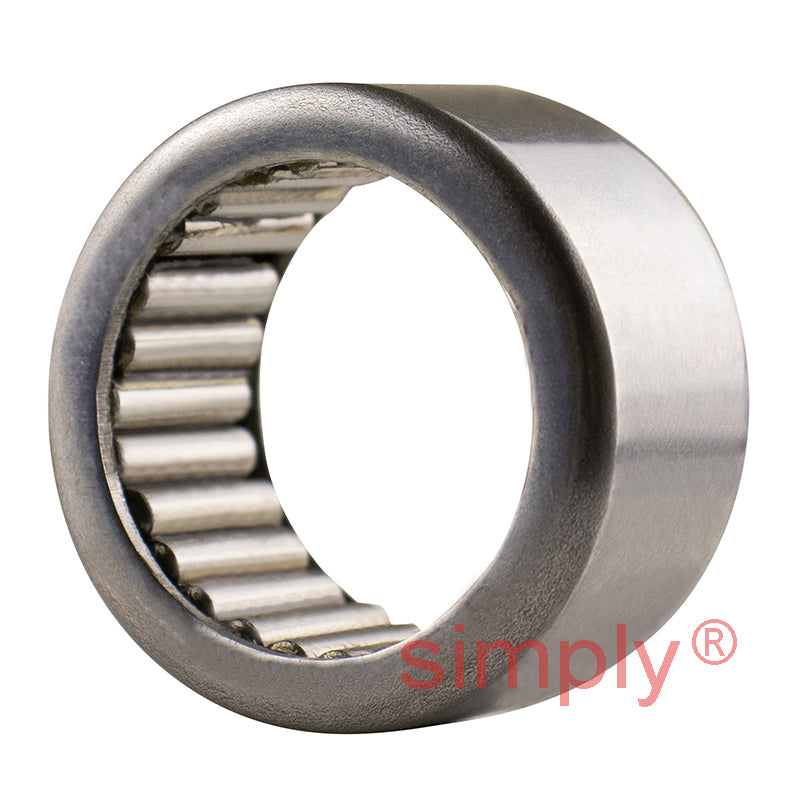

Major Brand YT2015 Drawn Cup Open End Type Needle Roller Bearing 20x27x15mm
Major Brand YT2015 Drawn Cup Open End Type Needle Roller Bearing 20x27x15mm
Regular price
$16.15
ex VAT
Regular price
Sale price
$16.15
ex VAT
In stock
Price Break
10+
$7.63
19+
$7.20
29+
$7.11
39+
$7.03
49+
$6.94
74+
$6.86
99+
$6.43
199+
$6.34
249+
$6.26
499+
$6.17
999+
$6.00
Share this product
Description
Description
|
YT and YTL Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 27mm
- Width:
- 15mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 27mm |
| C | 15mm |
| Dynamic load | 18400 N |
| Static load | 30900 N |
| Inner ring | IRT1515-2 |
| Weight | 23.5 g |
