• IKO YT1212 Drawn Cup Open End Type Full Complement Needle Roller Bearing 12x19x12mm
1 1

SKU: YT.1212

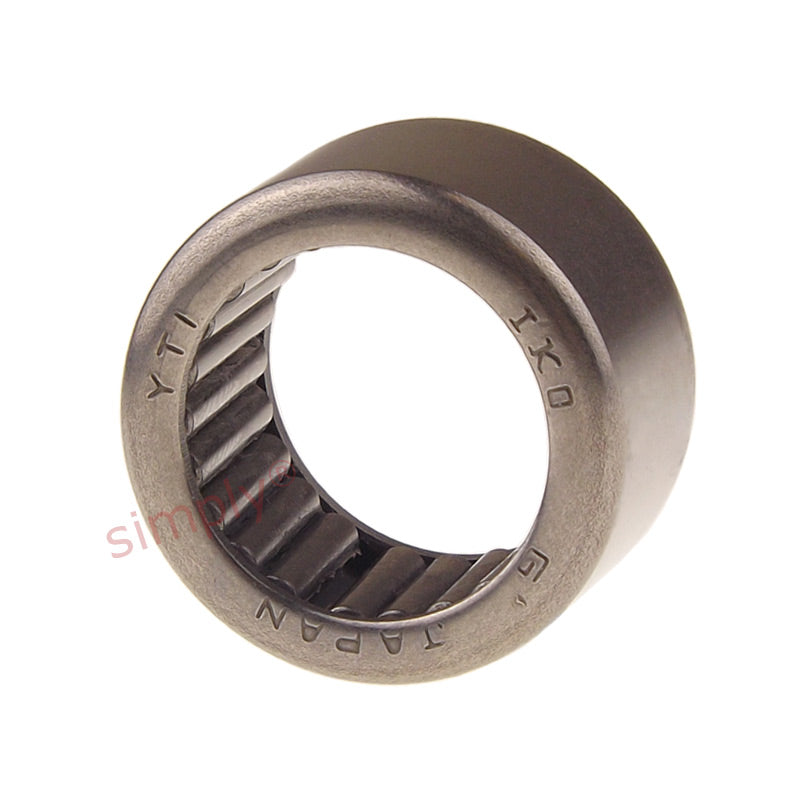

IKO YT1212 Drawn Cup Open End Type Full Complement Needle Roller Bearing 12x19x12mm

IKO YT1212 Drawn Cup Open End Type Full Complement Needle Roller Bearing 12x19x12mm
$13.39 ex VAT
$13.39 ex VAT
Sale Sold out

In stock

Price Break
10+ $11.92
19+ $11.25
29+ $11.11
39+ $10.98
49+ $10.85
74+ $10.71
99+ $10.04
199+ $9.91
249+ $9.77
499+ $9.64
999+ $9.37
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

YT and YTL Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs.
Brand / Quality:
IKO - High Quality
Inside Diameter:
12mm
Outside Diameter:
19mm
Width:
12mm
Technical
Fw 12mm
D 19mm
C 12mm
Dynamic load 11800 N
Static load 15200 N
Inner ring IRT812
Weight 12.8 g
