SKU: YSP207SB-2F-SKF

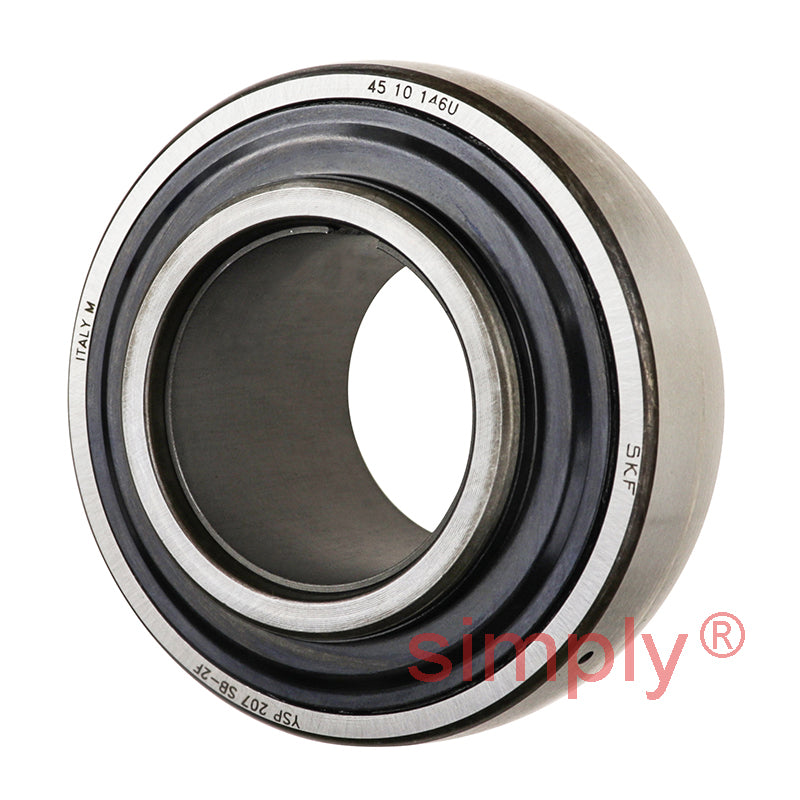

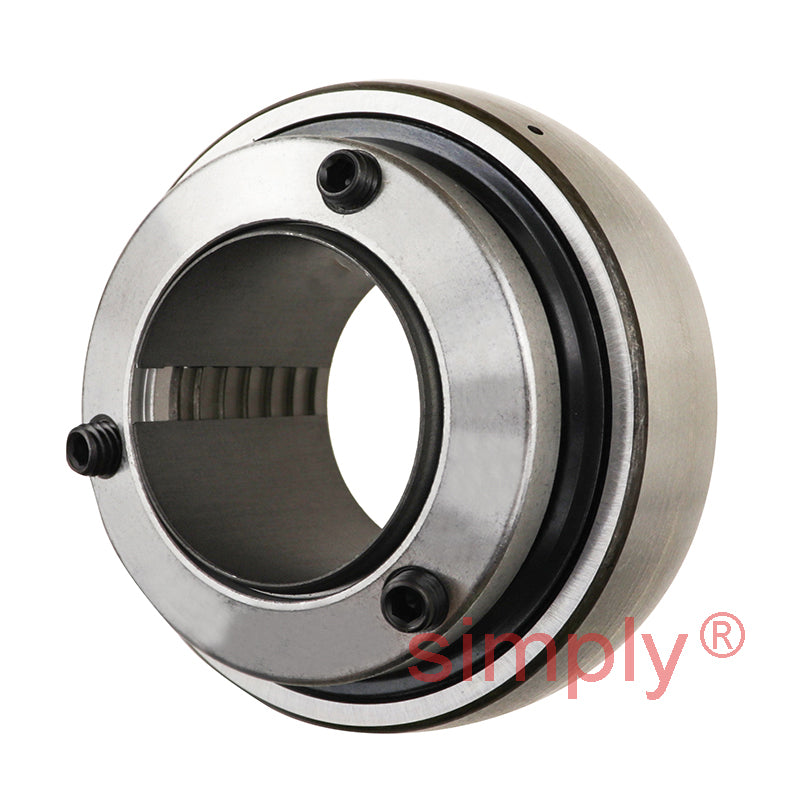

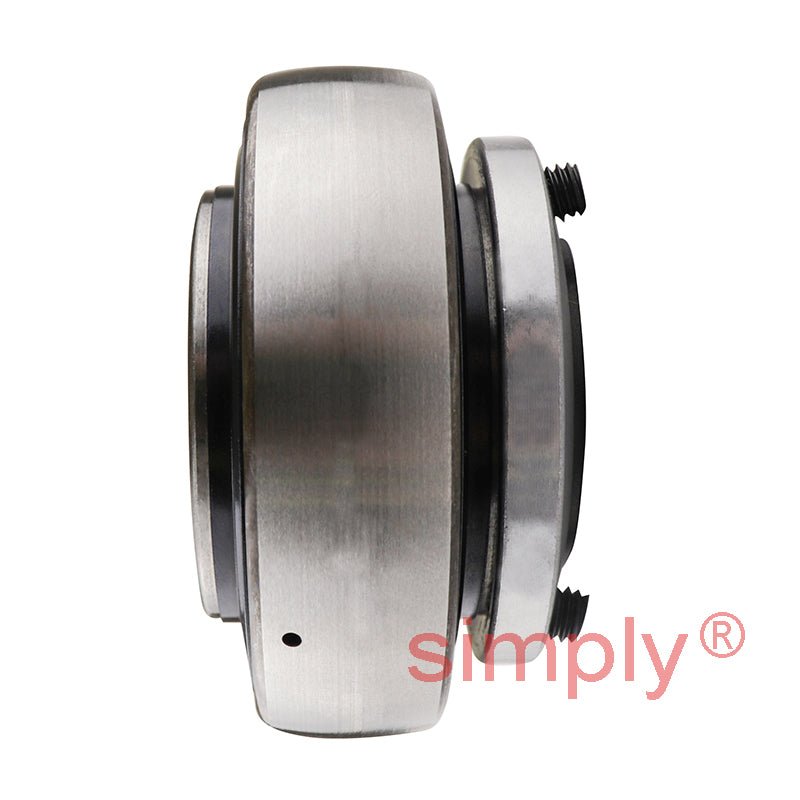

SKF YSP207SB2F Bearing Insert with ConCentra Locking 35x72x39.7mm
SKF YSP207SB2F Bearing Insert with ConCentra Locking 35x72x39.7mm
Regular price
$99.90
ex VAT
Regular price
Sale price
$99.90
ex VAT
In stock
Price Break
10+
$47.18
19+
$44.53
29+
$44.00
39+
$43.47
49+
$42.94
74+
$42.41
99+
$39.76
199+
$39.23
249+
$38.70
499+
$38.17
999+
$37.11
Share this product
Description
Description
SKF Bearing Inserts with ConCentra Locking These insert bearings were inspired by sealed deep groove ball bearings. Typically used in applications where there is a constant or if there are alternating directions of rotation, heavy loads and/or high speeds. This insert has an inner ring extended on both sides and also benefits from SKF ConCentra locking which enables quick and easy mounting onto a shaft.
Benefits: Accommodate static initial misalignment, quick and easy to mount onto the shaft, reduce noise and vibration levels, long service life.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 39.7mm

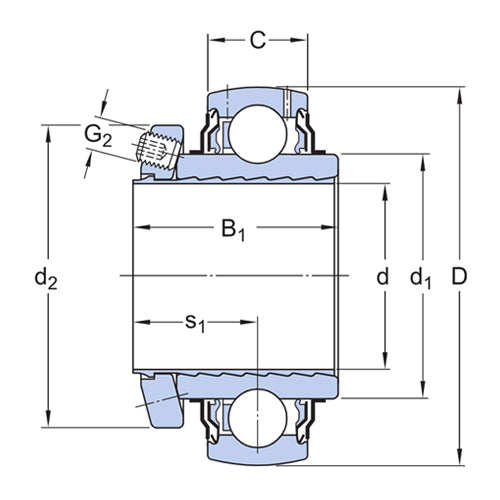

Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B1 | 39.7mm |
| C | 19mm |
| d1 | 46.1mm |
| d2 | 57mm |
| s1 | 24.5mm |
| Basic Dynamic Load Rating C | 25.5 kN |
| Basic Static Load Rating C0 | 15.3 kN |
| Fatigue Load Limit Pu | 0.655 kN |
| Limiting Speed | 5300 r/min |
| Calculation Factor | 14 |
| Weight | 0.450 kg |
