SKU: YAT209-SKF

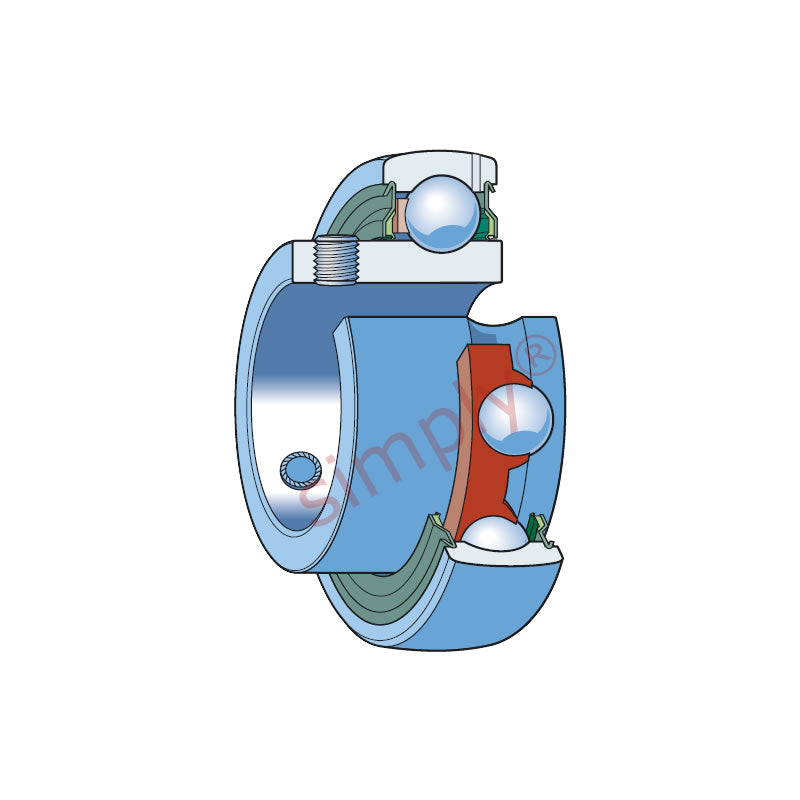

SKF YAT209 Grub Screw Type Bearing Insert with 45mm Bore 85mm Outside Diameter
SKF YAT209 Grub Screw Type Bearing Insert with 45mm Bore 85mm Outside Diameter
Regular price
$51.43
ex VAT
Regular price
Sale price
$51.43
ex VAT
In stock
Price Break
10+
$45.77
19+
$43.20
29+
$42.69
39+
$42.17
49+
$41.66
74+
$41.14
99+
$38.57
199+
$38.06
249+
$37.54
499+
$37.03
999+
$36.00
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Style:
- YAT
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 37mm |
| C | 22mm |
| d1 | 56.8mm |
| s1 | 25.8mm |
| r1r2 min | 1mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 0.48 kg |
