SKU: YAR212-207-2FW/VA201-SKF

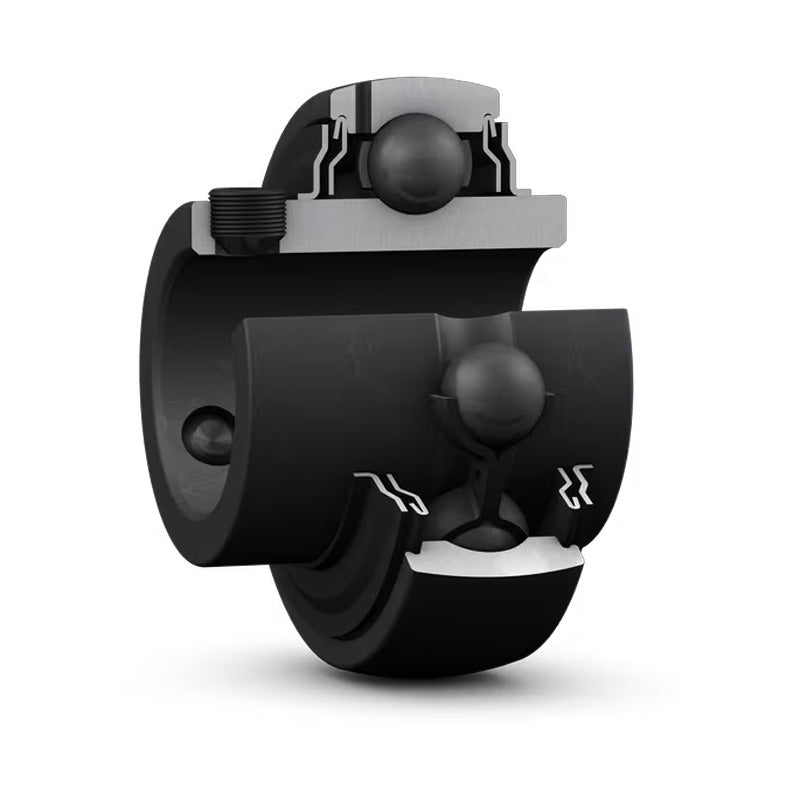

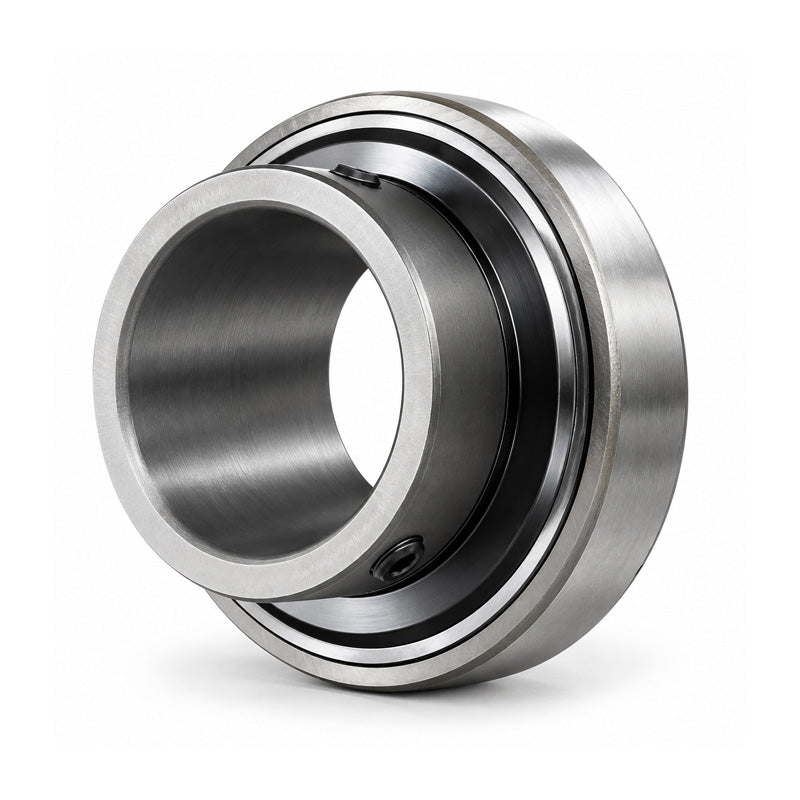

SKF YAR2122072FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 2-7/16 inch shaft
SKF YAR2122072FWVA201 Y Bearing Insert for High Temperature Application with Pressed Steel Cage and Grub Screw Location 2-7/16 inch shaft
Regular price
$546.38
ex VAT
Regular price
Sale price
$546.38
ex VAT
In stock
Price Break
10+
$486.28
19+
$458.96
29+
$453.50
39+
$448.03
49+
$442.57
74+
$437.10
99+
$409.79
199+
$404.32
249+
$398.86
499+
$393.39
999+
$382.47
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Temperature Range:
- High Temp
- Type:
- Spherical Outer
Technical
Technical
| d | 2-7/16 inch |
|---|---|
| D | 110mm |
| B | 65.1mm |
| C | 26mm |
| d1 | 75.6mm |
| s1 | 39.7mm |
| r1r2 min | 1.5mm |
| Dynamic load C | 52.7 kN |
| Static load Co | 36 kN |
| Weight | 1.35 kg |
