SKU: YAR207-104-2FW/VA228-SKF

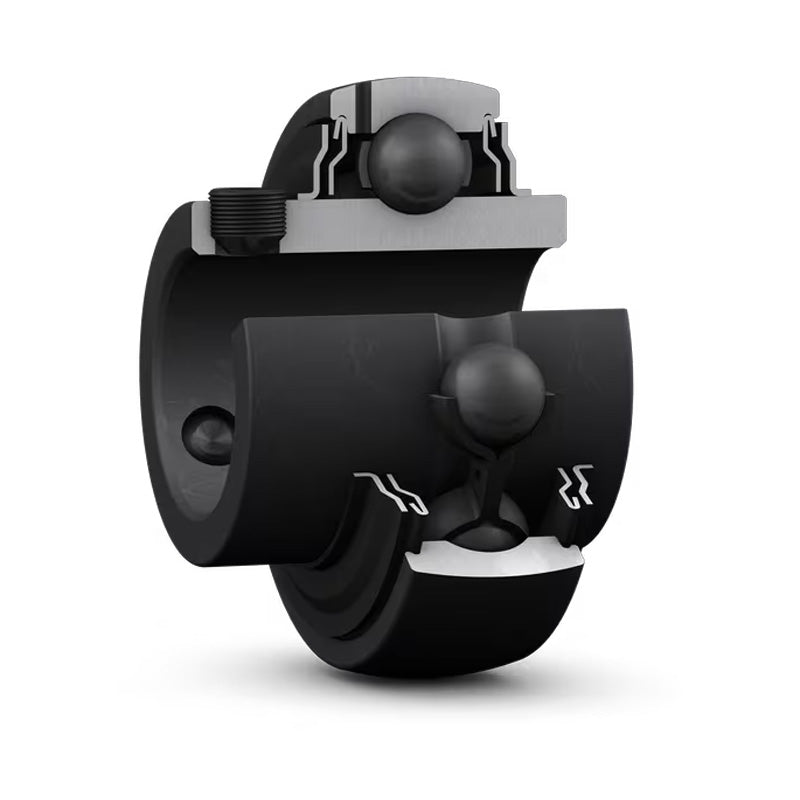

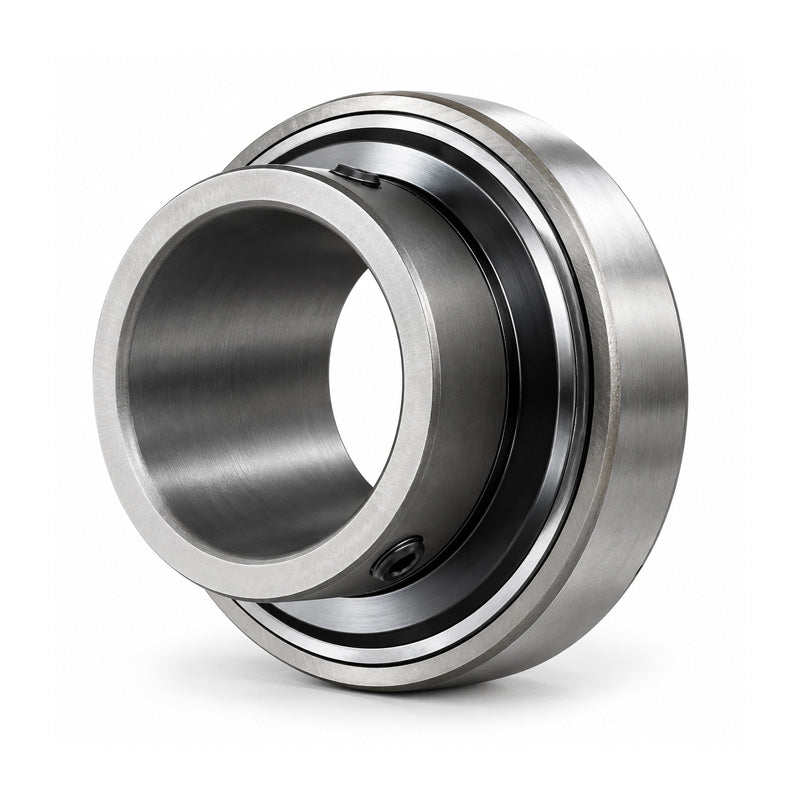

SKF YAR2071042FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-1/4 inch shaft
SKF YAR2071042FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-1/4 inch shaft
Regular price
$395.12
ex VAT
Regular price
Sale price
$395.12
ex VAT
In stock
Price Break
10+
$351.66
19+
$331.90
29+
$327.95
39+
$324.00
49+
$320.05
74+
$316.10
99+
$296.34
199+
$292.39
249+
$288.44
499+
$284.49
999+
$276.58
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Temperature Range:
- High Temp
- Type:
- Spherical Outer
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| D | 72mm |
| B | 42.9mm |
| C | 19mm |
| d1 | 46.1mm |
| s1 | 25.4mm |
| r1r2 min | 1mm |
| Dynamic load C | 25.5 kN |
| Static load Co | 15.3 kN |
| Weight | 0.52 kg |
