SKU: YAR206-103-2FW/VA228-SKF

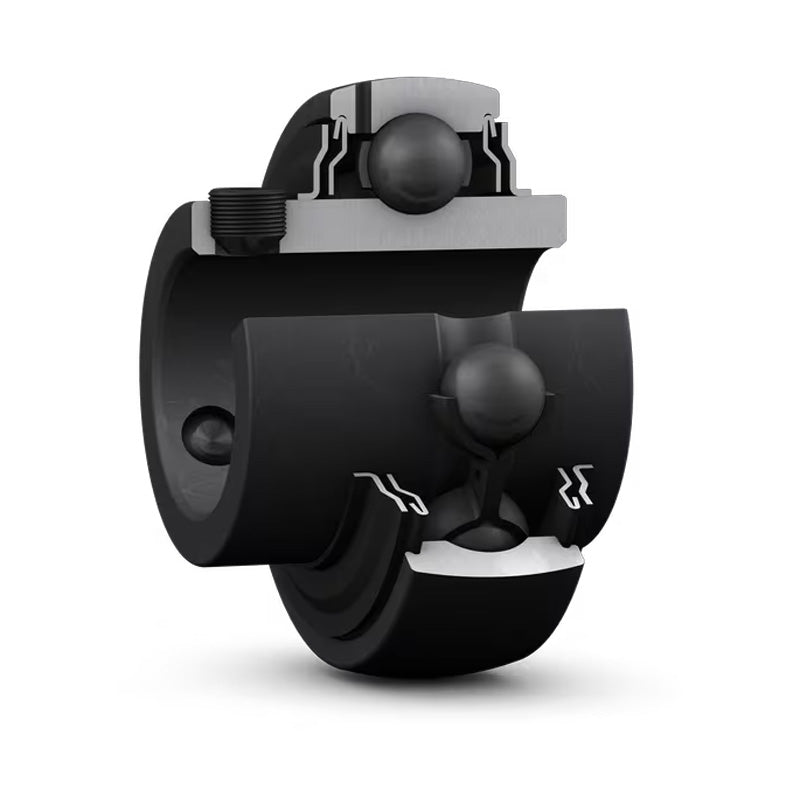

SKF YAR2061032FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-3/16 inch shaft
SKF YAR2061032FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-3/16 inch shaft
Regular price
$295.18
ex VAT
Regular price
Sale price
$295.18
ex VAT
In stock
Price Break
10+
$262.71
19+
$247.95
29+
$245.00
39+
$242.05
49+
$239.10
74+
$236.14
99+
$221.39
199+
$218.43
249+
$215.48
499+
$212.53
999+
$206.63
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| D | 62mm |
| B | 38.1mm |
| C | 18mm |
| d1 | 39.7mm |
| s1 | 22.2mm |
| r1r2 min | 0.6mm |
| Dynamic load C | 19.5 kN |
| Static load Co | 11.2 kN |
| Weight | 0.31 kg |
