SKU: YAR205-2FW/VA228-SKF

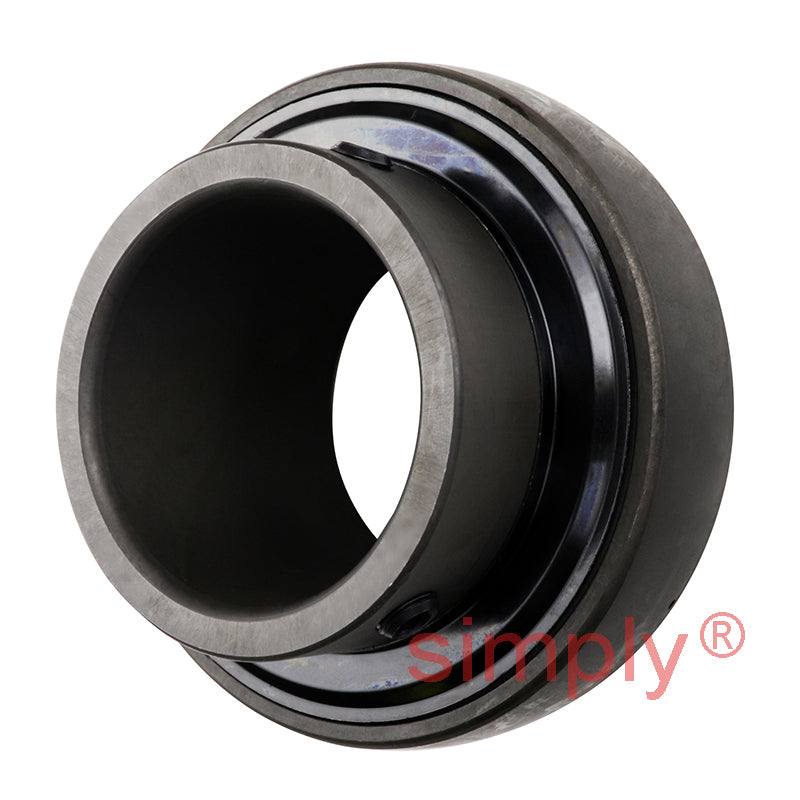

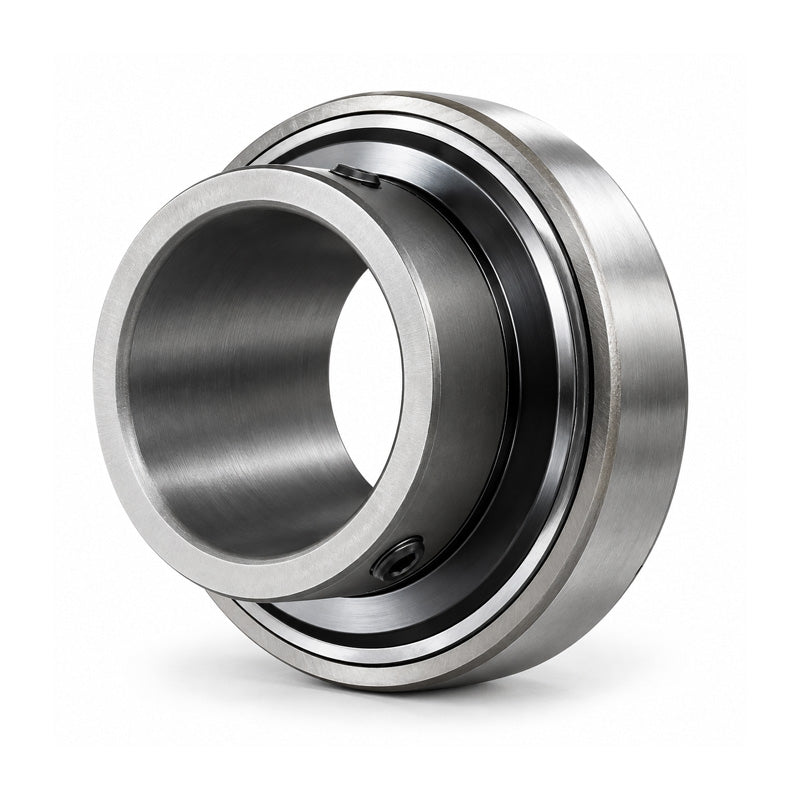

SKF YAR2052FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 25x52x34.1mm
SKF YAR2052FWVA228 Y Bearing Insert for High Temperature Applications with Graphite Cage and Grub Screw Location 25x52x34.1mm
Regular price
$247.17
ex VAT
Regular price
Sale price
$247.17
ex VAT
In stock
Price Break
10+
$219.98
19+
$207.62
29+
$205.15
39+
$202.68
49+
$200.21
74+
$197.74
99+
$185.38
199+
$182.91
249+
$180.43
499+
$177.96
999+
$173.02
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Bearing Inserts: VA201 types have pressed steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Temperature Range:
- High Temp
- Type:
- Spherical Outer
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 34.1mm |
| C | 15mm |
| d1 | 33.7mm |
| s1 | 19.8mm |
| r1r2 min | 0.6mm |
| Dynamic load C | 14 |
| Static load Co | 7.8 kN |
| Weight | 0.17 kg |
