XPZ3170 Pix XPZ-Section Cogged V-Belt

XPZ Section Cogged Type V Belts: Major Brand longer life cogged 10x8mm (3/8x5/16 inch) belts, cogged belts offer increased air flow which can lead to cooler running. As cogged belts aren't wrapped the cross sectional area that would normally be occupied by the cover is used for greater load carrying cord. Cogged belts tend to be more flexible and can be operated with smaller sheaves.
Benefits: Universal classical profile to fit ISO 4183/4184 pulleys, Low stretch polyester tensile member, Oil, ozone and abrasion resistant, Temperature resistance: -20deg C to +70deg C, Static conductive to ISO 1813

Brand / Quality:

Pix - High Quality

Belt Number:

XPZ3170

Inside Length Approx:

3132mm

Outside Length Approx:

3183mm

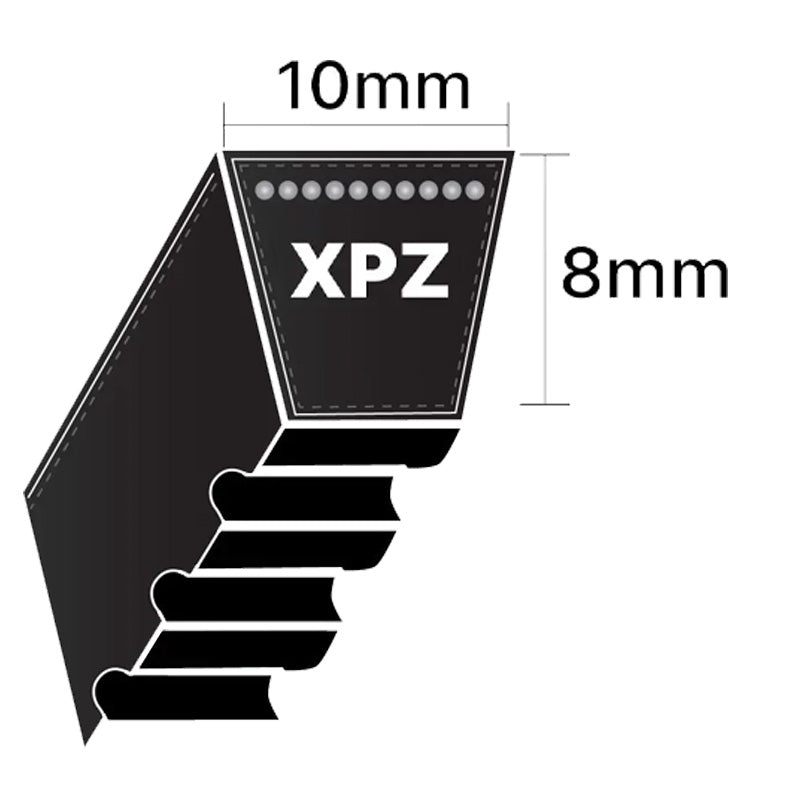

Belt Width Approx:

10mm

Belt Depth Approx:

8mm

Belt Datum Length Approx:

3170mm
