SKU: XLRJ2.1/4

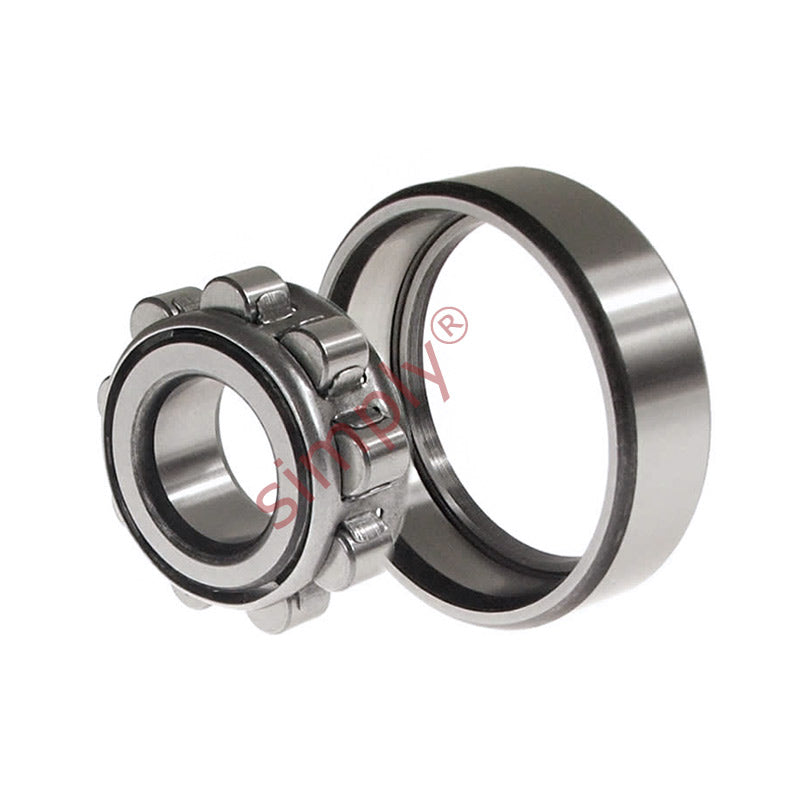

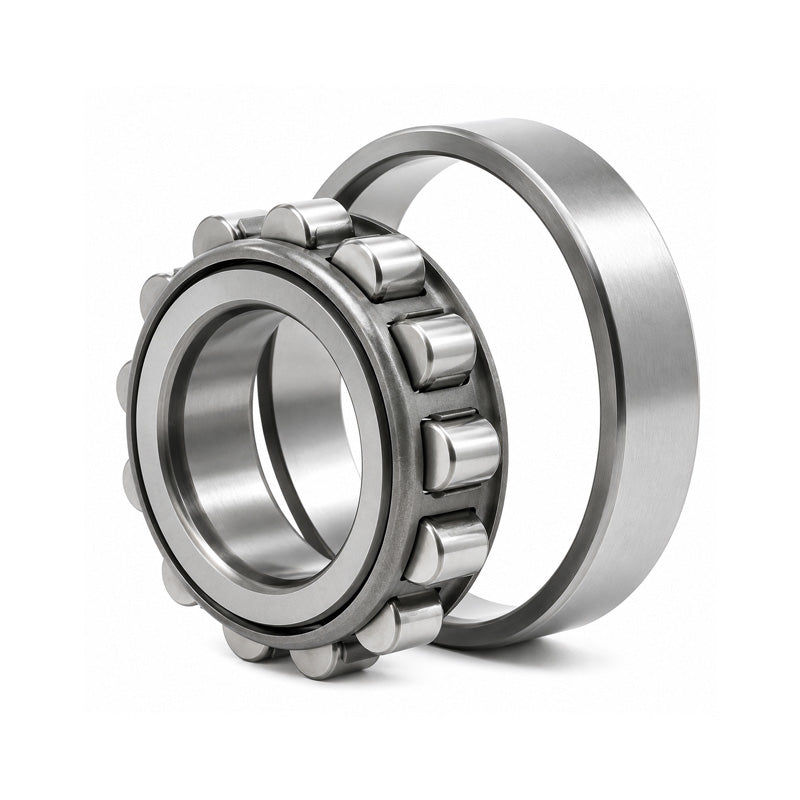

RHP XLRJ2-1/4 Cylindrical Roller Bearing 2-1/4x3-9/16x5/8 inch
RHP XLRJ2-1/4 Cylindrical Roller Bearing 2-1/4x3-9/16x5/8 inch
Regular price
$30.60
ex VAT
Regular price
Sale price
$30.60
ex VAT
In stock
Price Break
10+
$14.45
19+
$13.64
29+
$13.48
39+
$13.32
49+
$13.15
74+
$12.99
99+
$12.18
199+
$12.02
249+
$11.86
499+
$11.69
999+
$11.37
Share this product
Description
Description
LRJ Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the cage and rollers are assembled, the outer raceway has no flanges permitting the ease of assembly and permitting axial expansion in either direction.
Benefits: Permits axial movement / expansion, ease of assembly and fitting
Benefits: Permits axial movement / expansion, ease of assembly and fitting
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Outside Diameter:
- 90.49mm = 3.563 (3-9/16) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| Inside diameter | 2-1/4 inch |
|---|---|
| Outside diameter | 3-9/16 inch |
| Width | 5/8 inch |
| Dynamic load | 39100 N |
| Static load | 45000 N |
| Limiting speed (grease) | 4500 rpm |
| Limiting speed (grease) | 7500 rpm |
| Mass | 0.369 kg |
