SKU: WMOF-1622-30

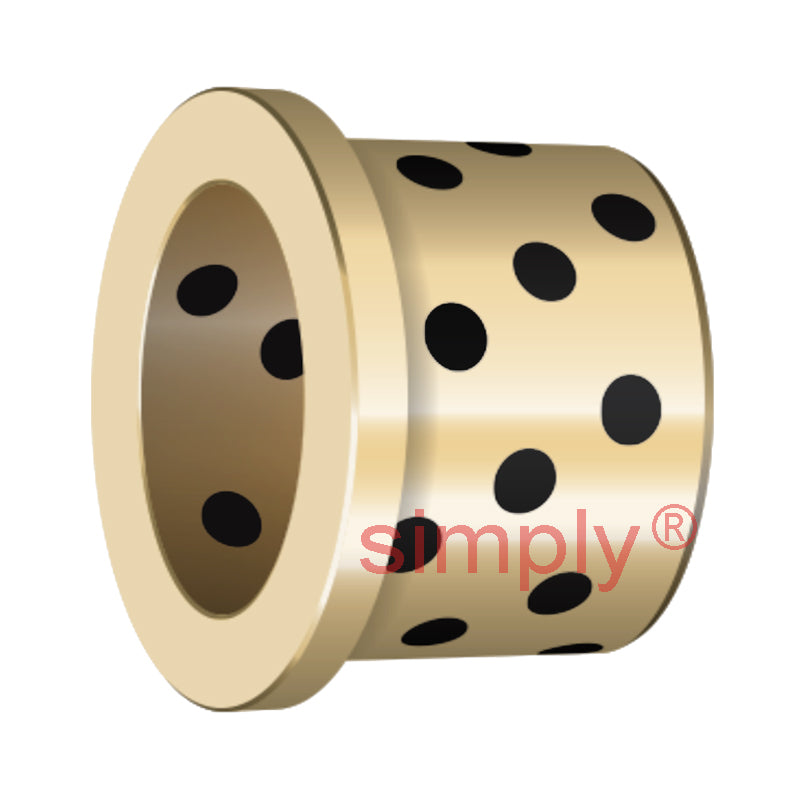

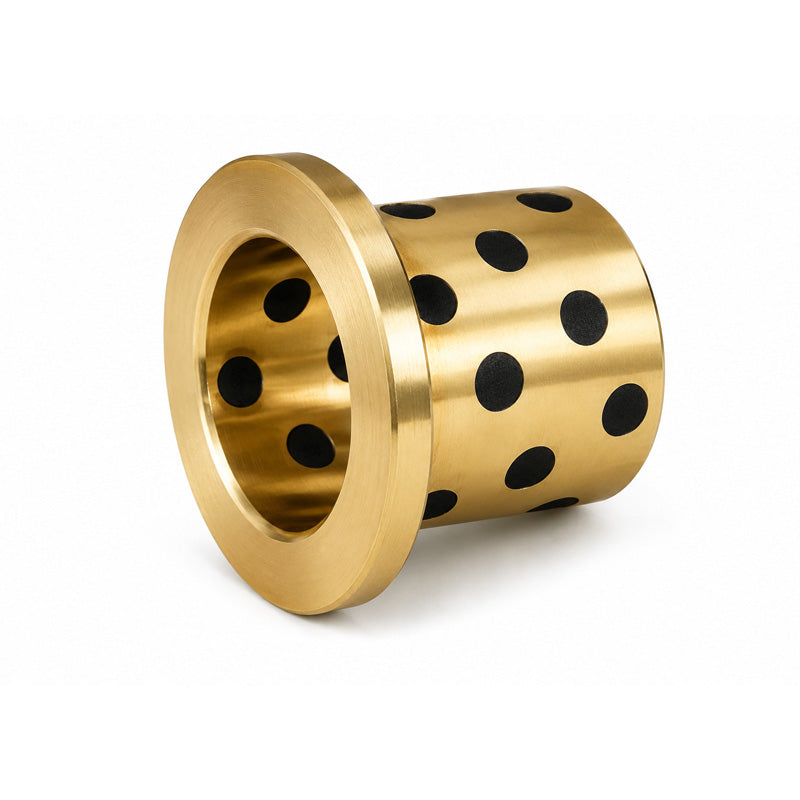

WMOF162230 Flanged Oilless Bronze Bush 16x22x30mm
WMOF162230 Flanged Oilless Bronze Bush 16x22x30mm
Regular price
$23.84
ex VAT
Regular price
Sale price
$23.84
ex VAT
Equivalent to: WMOF162230
Low stock
Price Break
3+
$11.26
5+
$10.63
9+
$10.50
19+
$10.37
49+
$10.25
74+
$10.12
99+
$9.49
199+
$9.36
249+
$9.23
499+
$9.11
999+
$8.86
Description
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Equivalent: WMOF162230
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Length:
- 30mm
- Item Type:
- Flanged
Technical
Technical
| d | 16mm |
|---|---|
| D | 22mm |
| L | 30mm |
| F | 29mm |
| L1 | 3mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 298.416 rpm |
| Max load | 4892.966 kg |
| Housing Tolerance | H7 |
