SKU: WMG45-SKF

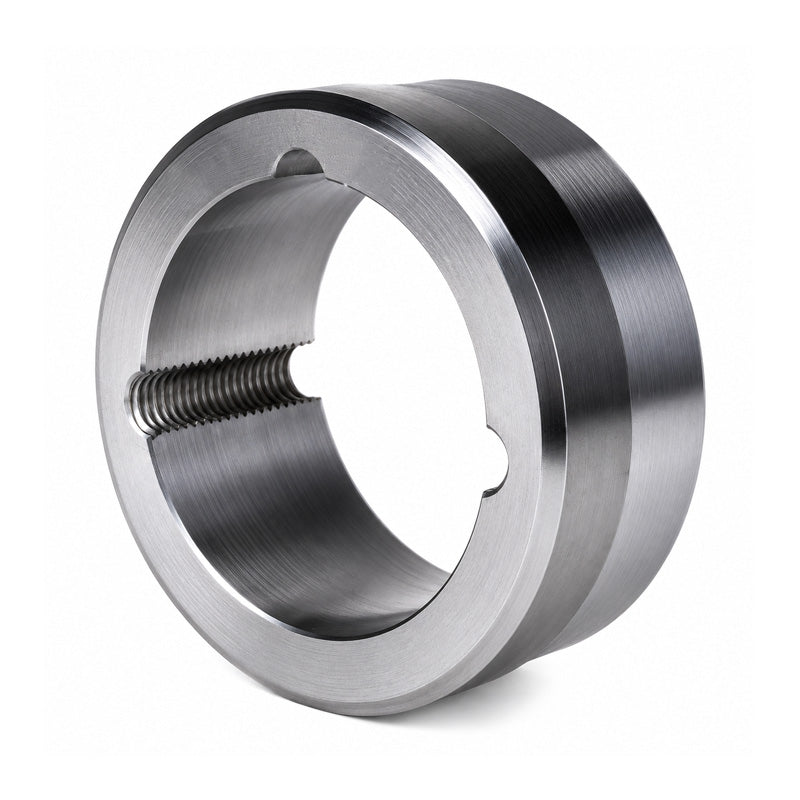

SKF WMG45 Weld on Hub Shaft Fixing with Tapered Bore
SKF WMG45 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
$338.20
ex VAT
Regular price
Sale price
$338.20
ex VAT
In stock
Price Break
10+
$301.00
19+
$284.09
29+
$280.71
39+
$277.32
49+
$273.94
74+
$270.56
99+
$253.65
199+
$250.27
249+
$246.89
499+
$243.50
999+
$236.74
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 4545
- Outside Diameter:
- 254mm
- Width:
- 114mm
Technical
Technical
| Hub Reference | WMG45 |
|---|---|
| Bush Number | 4545 |
| A | 254mm |
| B | 220mm |
| C | 213mm |
| D | 114mm |
| E | 38mm |
| F | 38mm |
| F1 | 38mm |
| X | 38mm |
