SKU: WMG40-SKF

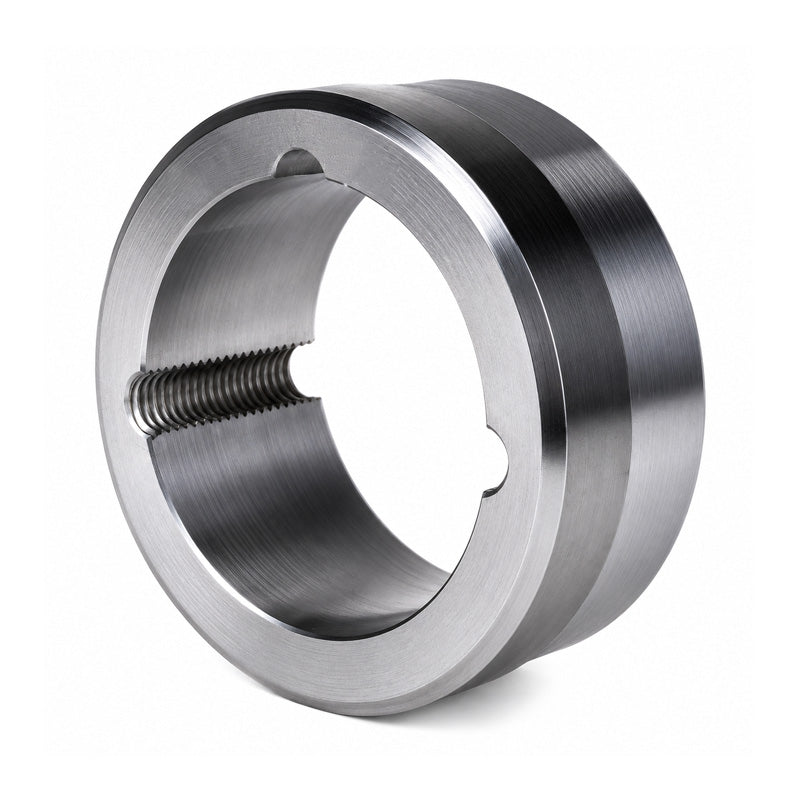

SKF WMG40 Weld on Hub Shaft Fixing with Tapered Bore
SKF WMG40 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
$244.12
ex VAT
Regular price
Sale price
$244.12
ex VAT
In stock
Price Break
10+
$217.27
19+
$205.06
29+
$202.62
39+
$200.18
49+
$197.74
74+
$195.30
99+
$183.09
199+
$180.65
249+
$178.21
499+
$175.77
999+
$170.88
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 4040
- Outside Diameter:
- 225mm
- Width:
- 102mm
Technical
Technical
| Hub Reference | WMG40 |
|---|---|
| Bush Number | 4040 |
| A | 225mm |
| B | 195mm |
| C | 187mm |
| D | 102mm |
| E | 32mm |
| F | 32mm |
| F1 | 34mm |
| X | 34mm |
