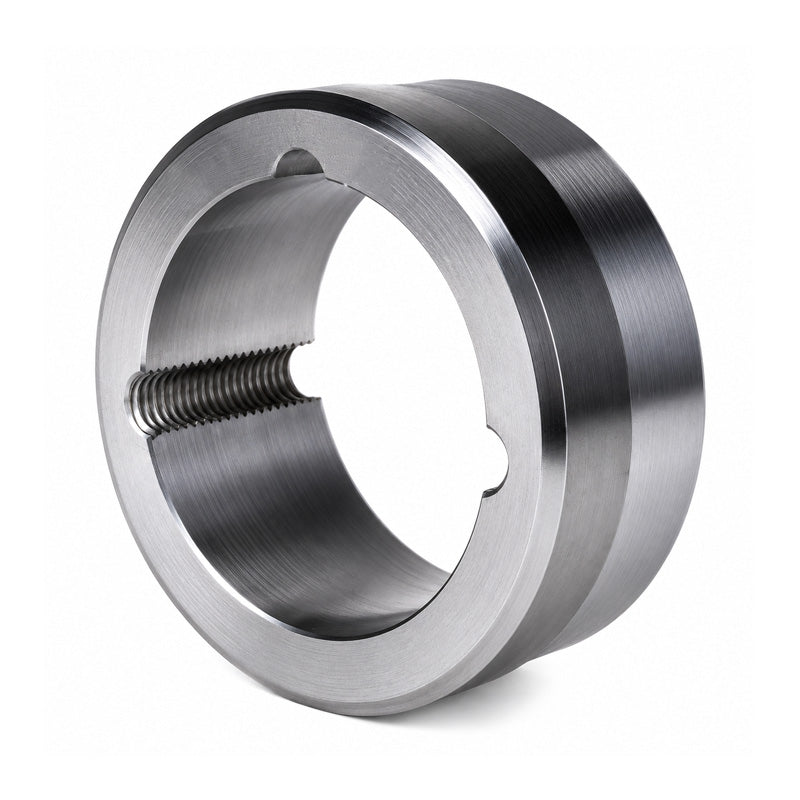

SKF WMG35 Weld on Hub Shaft Fixing with Tapered Bore
SKF WMG35 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
$165.02
ex VAT
Regular price
Sale price
$165.02
ex VAT
In stock
Price Break
10+
$146.87
19+
$138.62
29+
$136.97
39+
$135.32
49+
$133.67
74+
$132.02
99+
$123.77
199+
$122.11
249+
$120.46
499+
$118.81
999+
$115.51
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3535
- Outside Diameter:
- 184mm
- Width:
- 89mm
Technical
Technical
| Hub Reference | WMG35 |
|---|---|
| Bush Number | 3535 |
| A | 184mm |
| B | 155mm |
| C | 151mm |
| D | 89mm |
| E | 32mm |
| F | 25mm |
| F1 | 30mm |
| X | 30mm |
