SKU: WMG30-3-MB

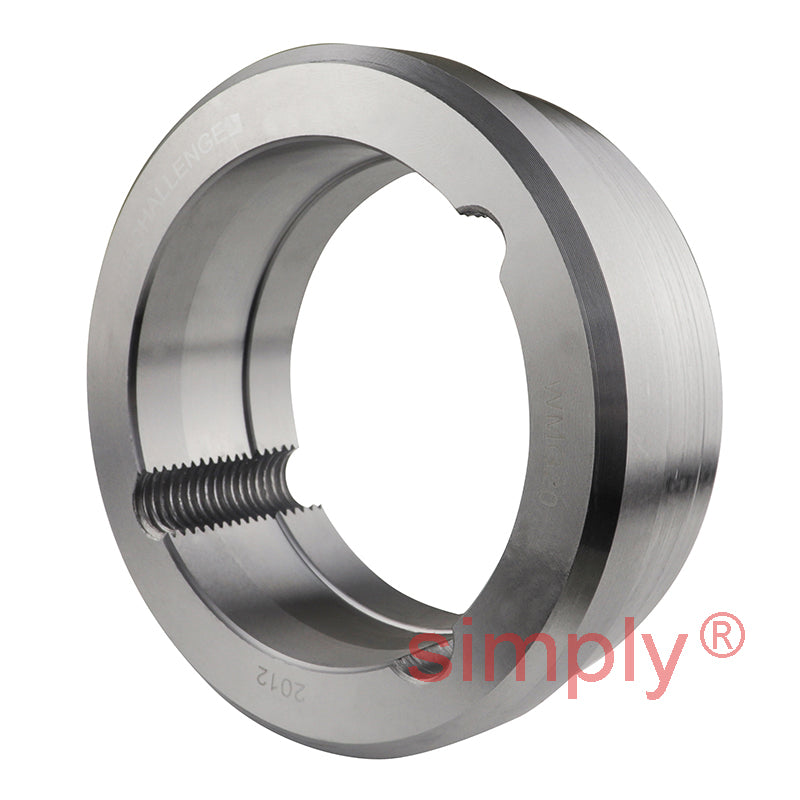

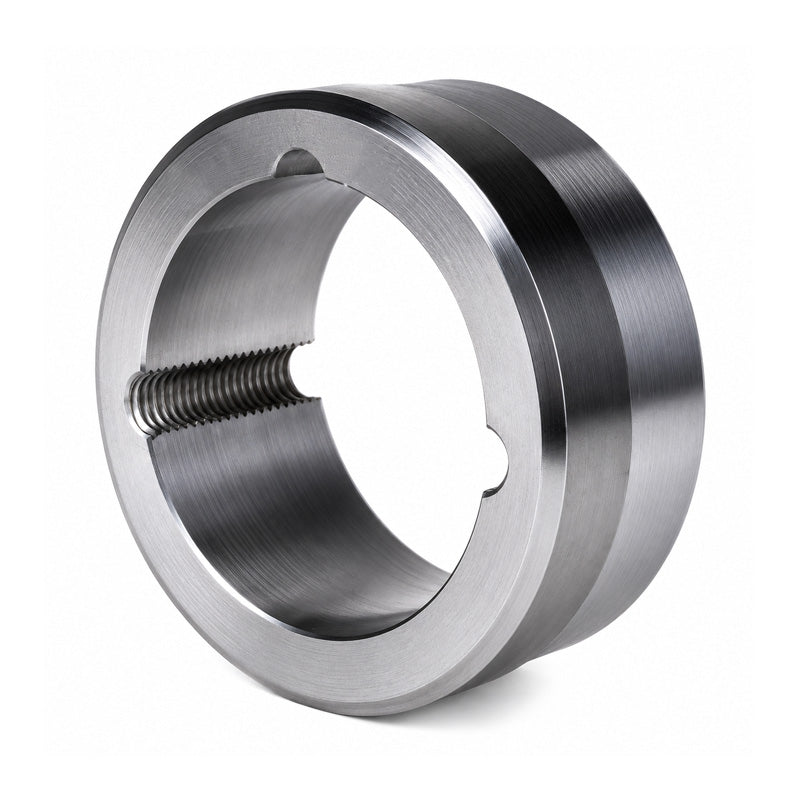

Major Brand WMG30-3 Weld on Hub Shaft Fixing with Tapered Bore
Major Brand WMG30-3 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
$104.10
ex VAT
Regular price
Sale price
$104.10
ex VAT
In stock
Price Break
3+
$49.17
5+
$46.40
9+
$45.85
19+
$45.30
49+
$44.75
74+
$44.19
99+
$41.43
199+
$40.88
249+
$40.33
499+
$39.77
999+
$38.67
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- Major Brand - High Quality
- Bush Size:
- 3030
- Outside Diameter:
- 152mm
- Width:
- 76mm
Technical
Technical
| Hub Reference | WMG30-3 |
|---|---|
| Bush Number | 3030 |
| A | 152mm |
| B | 130mm |
| C | 125mm |
| D | 76mm |
| E | 25mm |
| F | 19mm |
| F1 | 25mm |
| X | 25mm |
