SKU: WMG30-2-MB

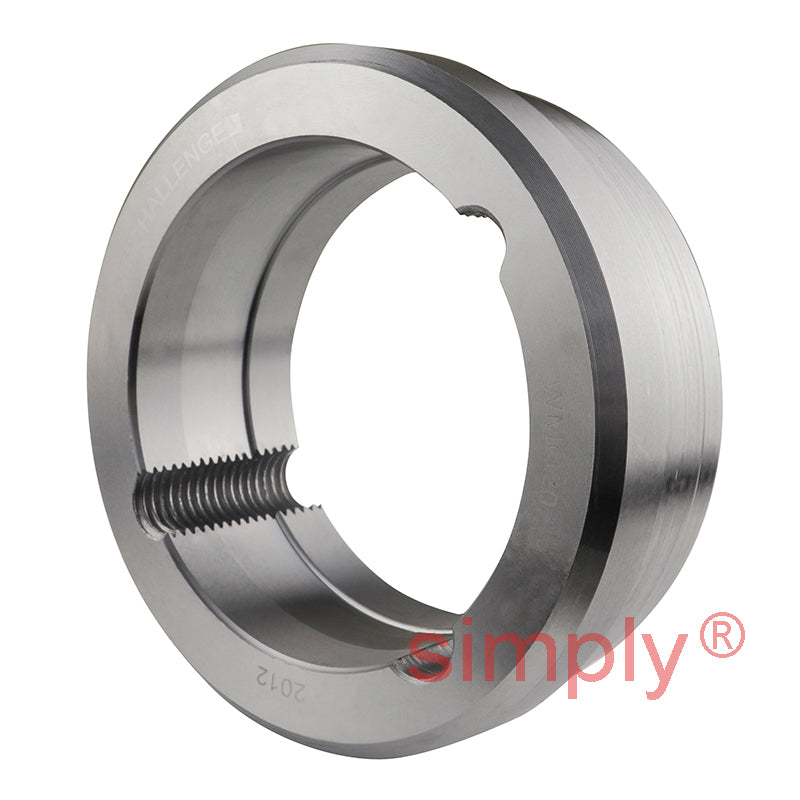

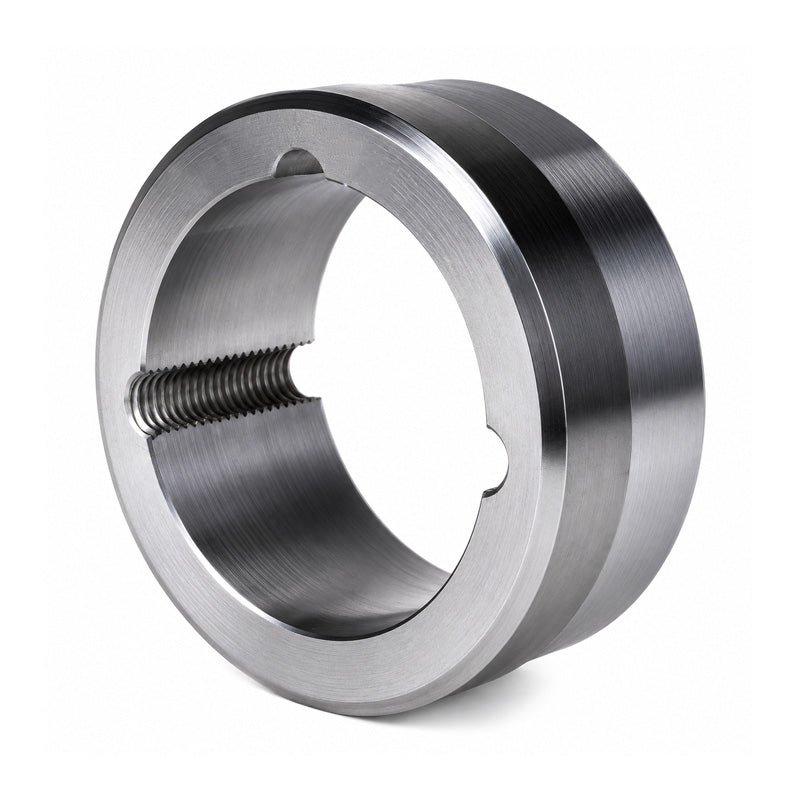

Major Brand WMG30-2 Weld on Hub Shaft Fixing with Tapered Bore
Major Brand WMG30-2 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
$84.12
ex VAT
Regular price
Sale price
$84.12
ex VAT
In stock
Price Break
3+
$39.73
5+
$37.50
9+
$37.06
19+
$36.61
49+
$36.16
74+
$35.72
99+
$33.48
199+
$33.04
249+
$32.59
499+
$32.14
999+
$31.25
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- Major Brand - High Quality
- Bush Size:
- 3020
- Outside Diameter:
- 152mm
- Width:
- 50mm
Technical
Technical
| Hub Reference | WMG30-2 |
|---|---|
| Bush Number | 3020 |
| A | 152mm |
| B | 130mm |
| C | 125mm |
| D | 50mm |
| E | 20mm |
| F | 15mm |
| F1 | 17mm |
| X | 17mm |
