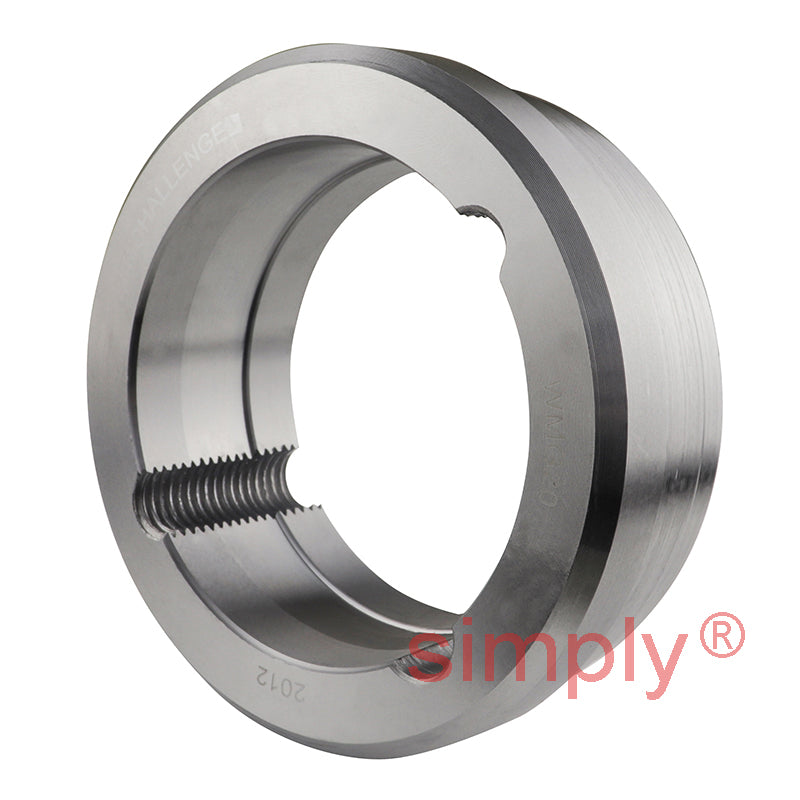

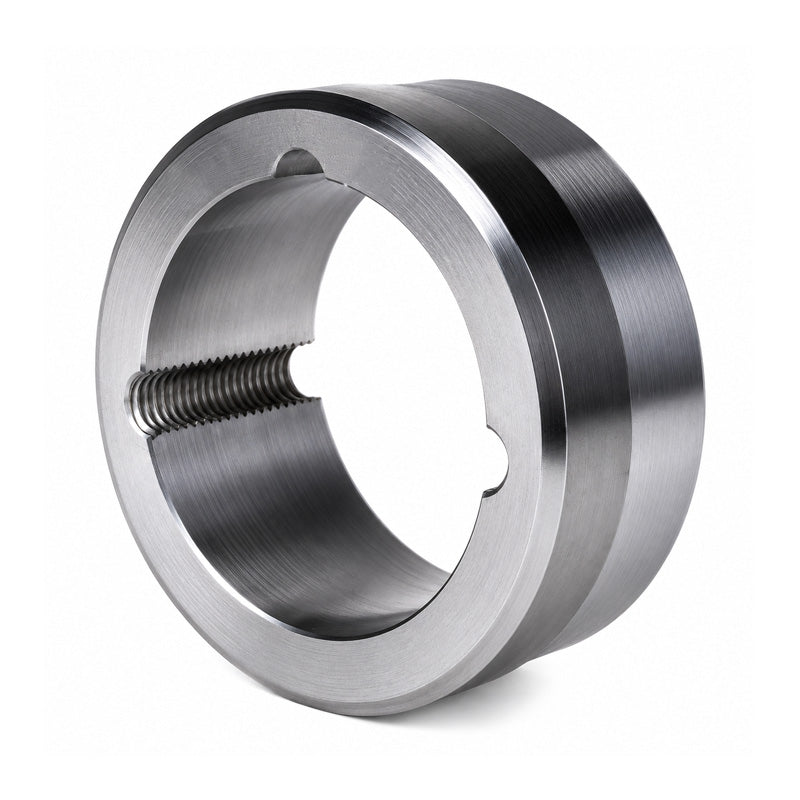

Major Brand WMG25 Weld on Hub Shaft Fixing with Tapered Bore
Major Brand WMG25 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
$59.89
ex VAT
Regular price
Sale price
$59.89
ex VAT
In stock
Price Break
3+
$28.28
5+
$26.70
9+
$26.38
19+
$26.06
49+
$25.74
74+
$25.42
99+
$23.83
199+
$23.52
249+
$23.20
499+
$22.88
999+
$22.25
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- Major Brand - High Quality
- Bush Size:
- 2517
- Outside Diameter:
- 127mm
- Width:
- 44mm

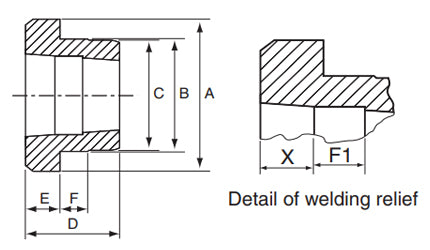

Technical
Technical
| Hub Reference | WMG25 |
|---|---|
| Bush Number | 2517 |
| A | 127mm |
| B | 110mm |
| C | 108mm |
| D | 44mm |
| E | 19mm |
| F | 13mm |
| F1 | 15mm |
| X | 15mm |
