SKU: WHG50-2-SKF

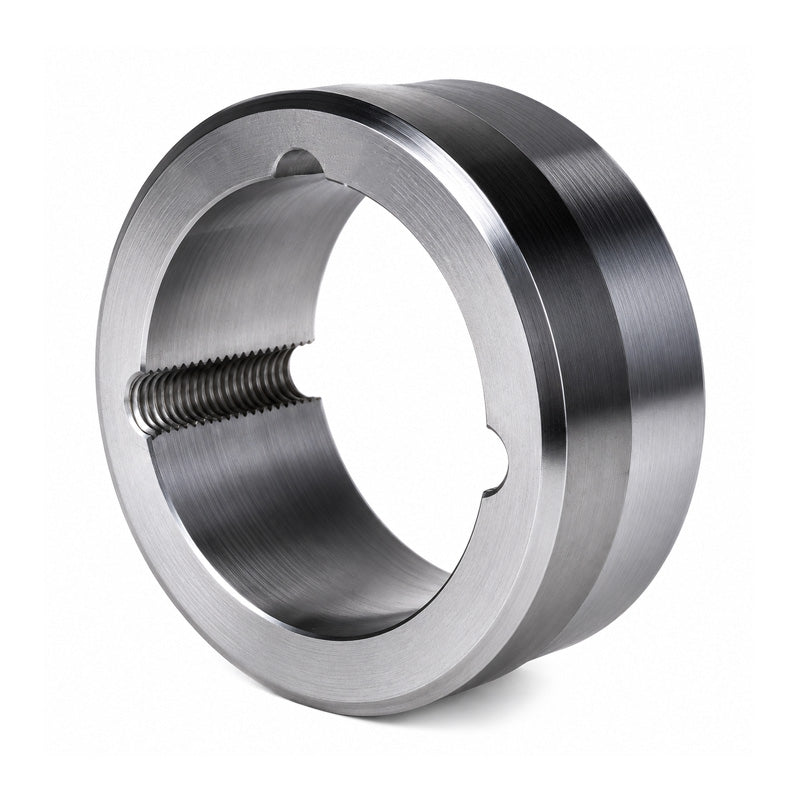

SKF WHG50-2 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG50-2 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
$333.50
ex VAT
Regular price
Sale price
$333.50
ex VAT
In stock
Price Break
10+
$296.82
19+
$280.14
29+
$276.81
39+
$273.47
49+
$270.14
74+
$266.80
99+
$250.13
199+
$246.79
249+
$243.46
499+
$240.12
999+
$233.45
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 5050
- Outside Diameter:
- 230mm
- Width:
- 127mm
Technical
Technical
| Hub Reference | WHG50-2 |
|---|---|
| Bush Number | 5050 |
| A | 230mm |
| B | 220mm |
| C | 219.5mm |
| D | 127mm |
| E | 40mm |
| F | 35mm |
| F1 | 42mm |
| X | 42mm |
