SKU: WHG40-2-MB

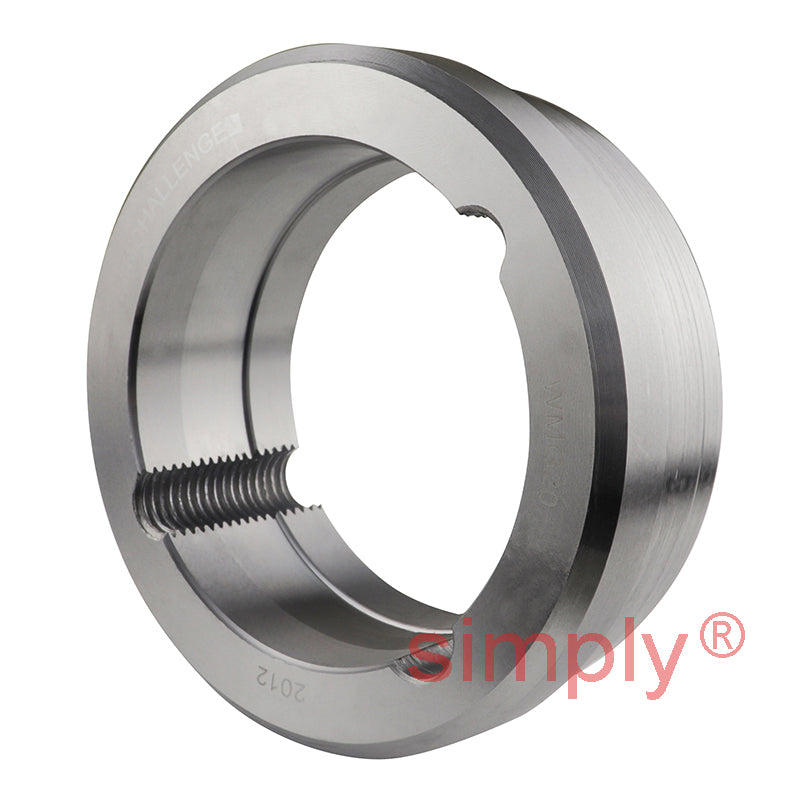

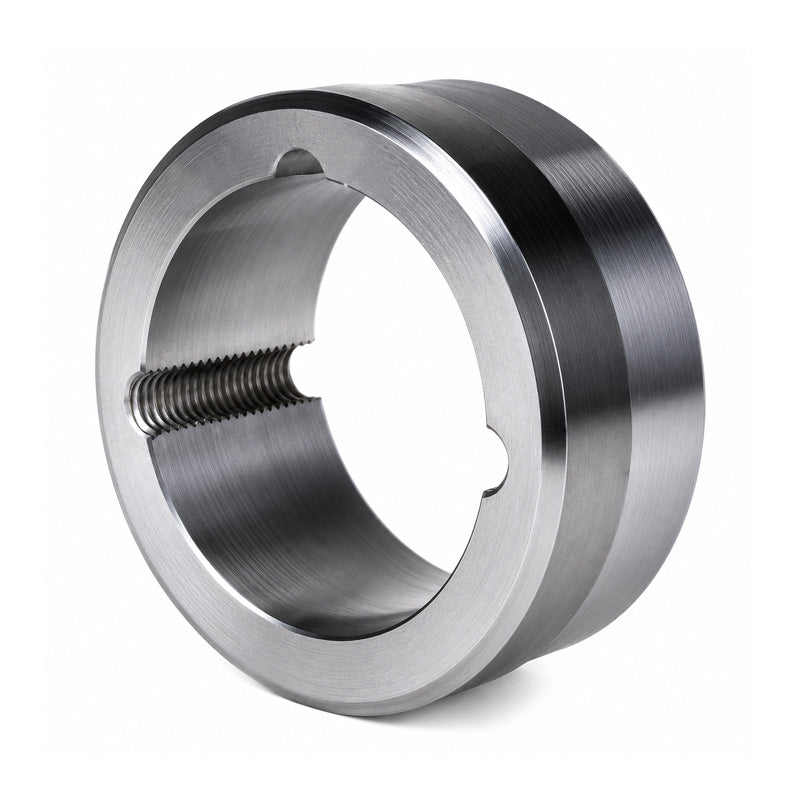

Major Brand WHG40-2 Weld on Hub Shaft Fixing with Tapered Bore
Major Brand WHG40-2 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
$235.73
ex VAT
Regular price
Sale price
$235.73
ex VAT
In stock
Price Break
3+
$111.33
5+
$105.08
9+
$103.83
19+
$102.58
49+
$101.33
74+
$100.07
99+
$93.82
199+
$92.57
249+
$91.32
499+
$90.07
999+
$87.57
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- Major Brand - High Quality
- Bush Size:
- 4040
- Outside Diameter:
- 200mm
- Width:
- 101mm
Technical
Technical
| Hub Reference | WHG40-2 |
|---|---|
| Bush Number | 4040 |
| A | 200mm |
| B | 190mm |
| C | 189.5mm |
| D | 101mm |
| E | 32mm |
| F | 30mm |
| F1 | 34mm |
| X | 34mm |
