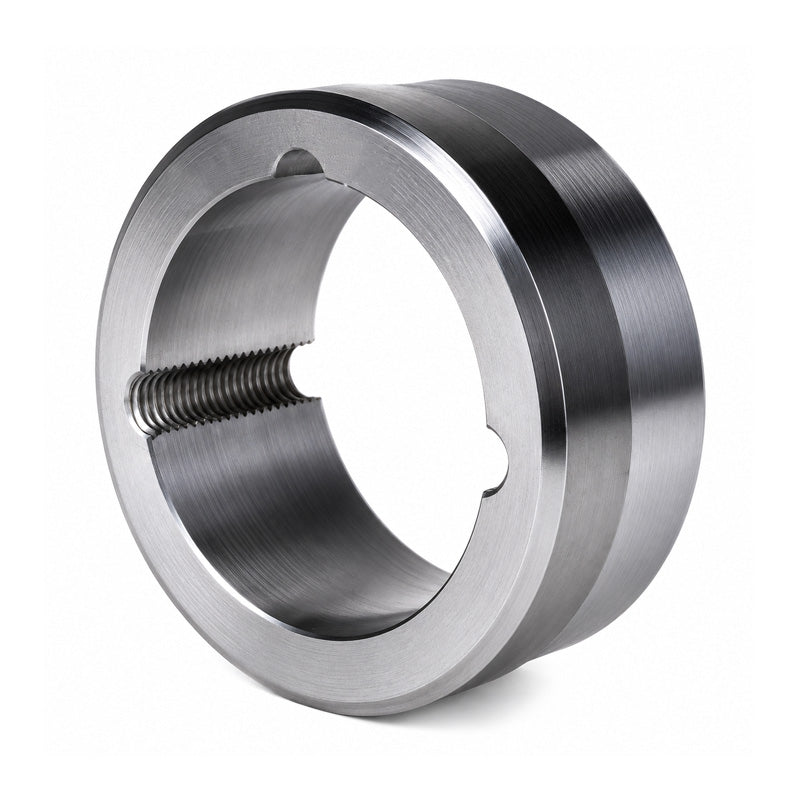

SKF WH25 Weld on Hub Shaft Fixing with Tapered Bore
SKF WH25 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
$50.43
ex VAT
Regular price
Sale price
$50.43
ex VAT
In stock
Price Break
10+
$44.88
19+
$42.36
29+
$41.86
39+
$41.35
49+
$40.85
74+
$40.34
99+
$37.82
199+
$37.32
249+
$36.81
499+
$36.31
999+
$35.30
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 2517
- Outside Diameter:
- 115mm
- Width:
- 44mm
Technical
Technical
| Hub Reference | WH25 |
|---|---|
| Bush Number | 2517 |
| A | 115mm |
| B | 110mm |
| C | 109.5mm |
| D | 44mm |
| E | 19mm |
| F | 15mm |
