SKU: WH20-MB

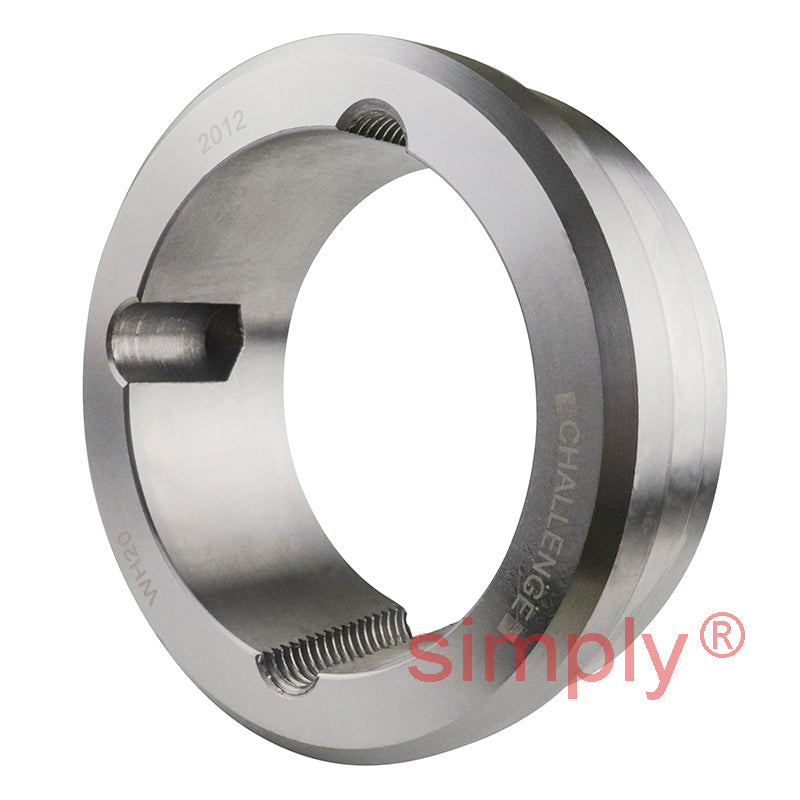

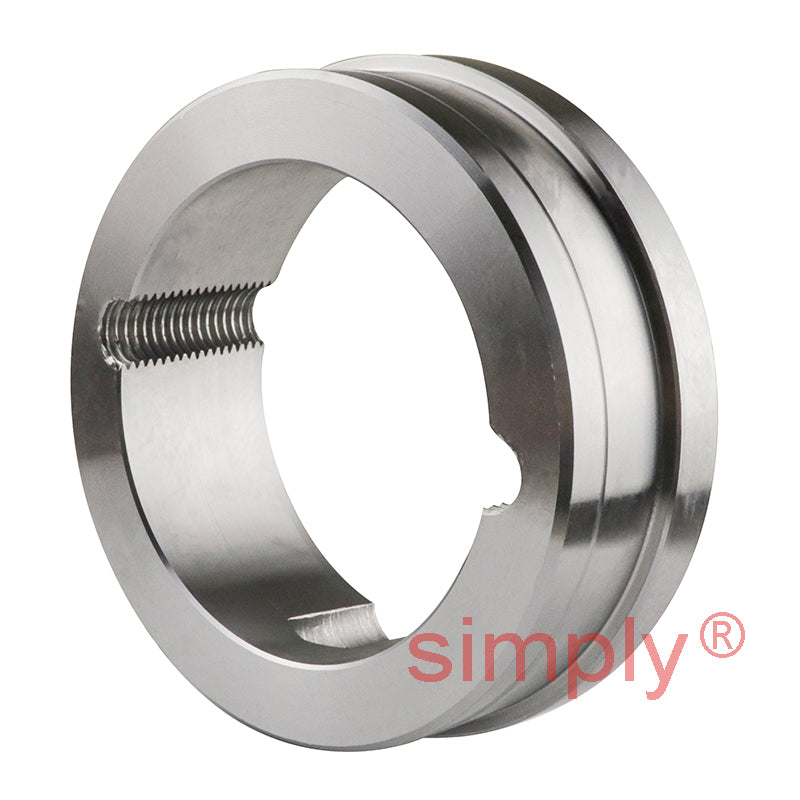

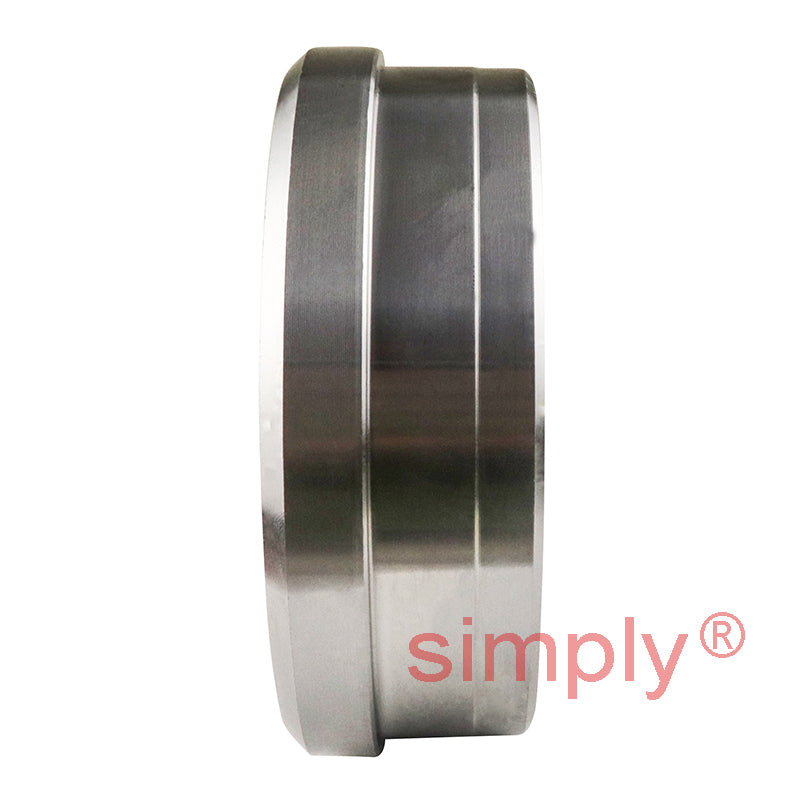

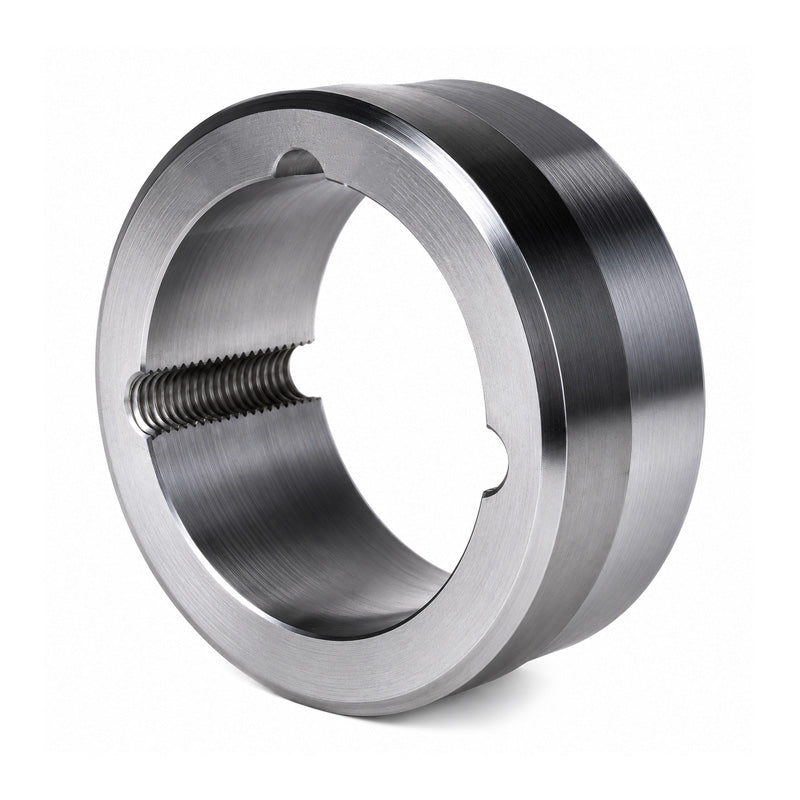

Major Brand WH20 Weld on Hub Shaft Fixing with Tapered Bore
Major Brand WH20 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
$33.34
ex VAT
Regular price
Sale price
$33.34
ex VAT
In stock
Price Break
10+
$29.67
19+
$28.01
29+
$27.67
39+
$27.34
49+
$27.01
74+
$26.67
99+
$25.01
199+
$24.67
249+
$24.34
499+
$24.00
999+
$23.34
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- Major Brand - High Quality
- Bush Size:
- 2012
- Outside Diameter:
- 95mm
- Width:
- 32mm
Technical
Technical
| Hub Reference | WH20 |
|---|---|
| Bush Number | 2012 |
| A | 95mm |
| B | 90mm |
| C | 89.5mm |
| D | 32mm |
| E | 12mm |
| F | 12mm |
