SKU: WH16-1-MB

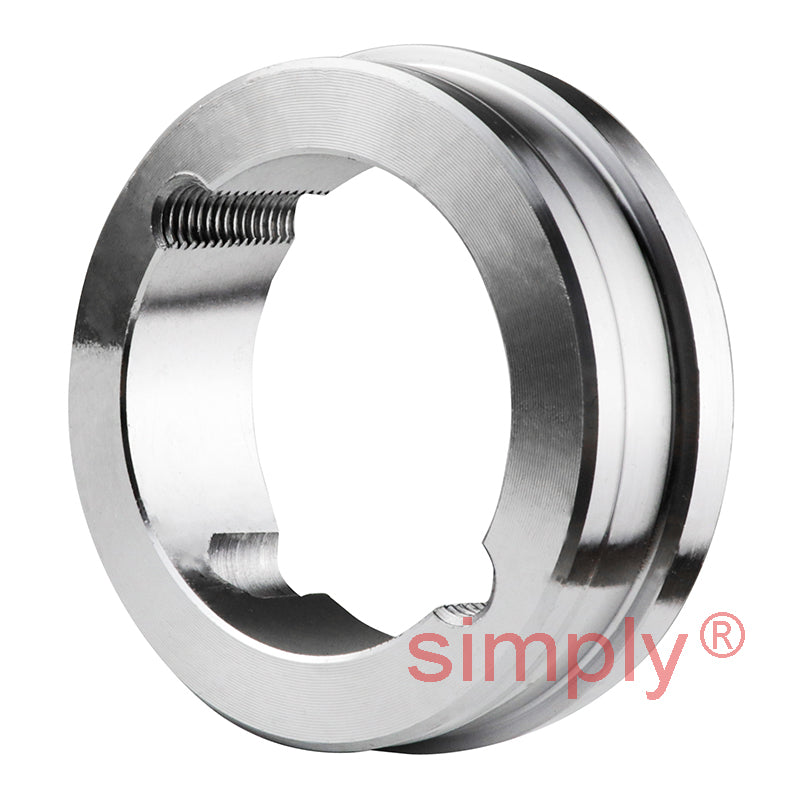

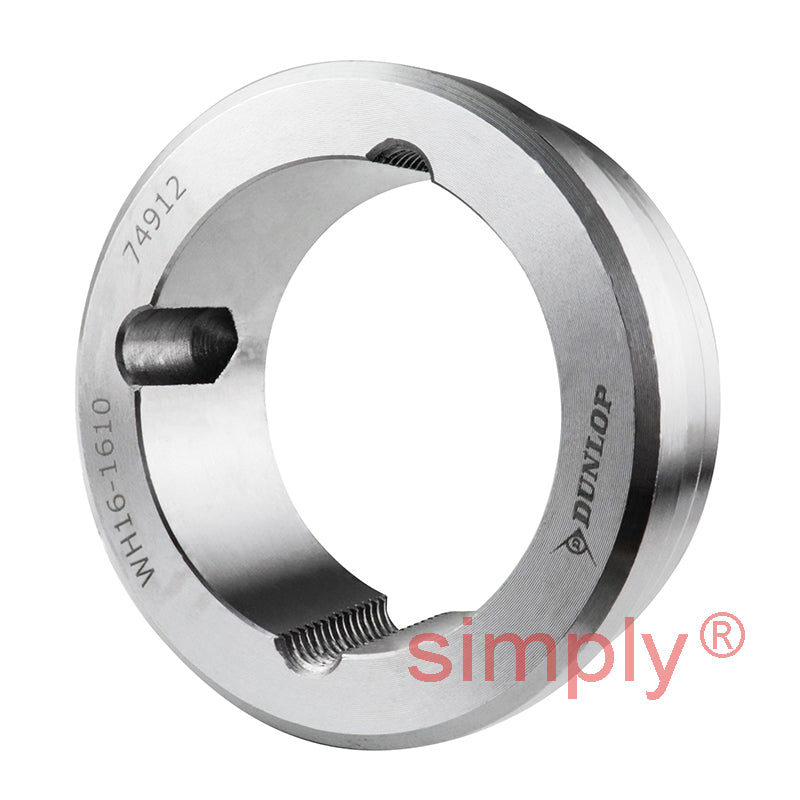

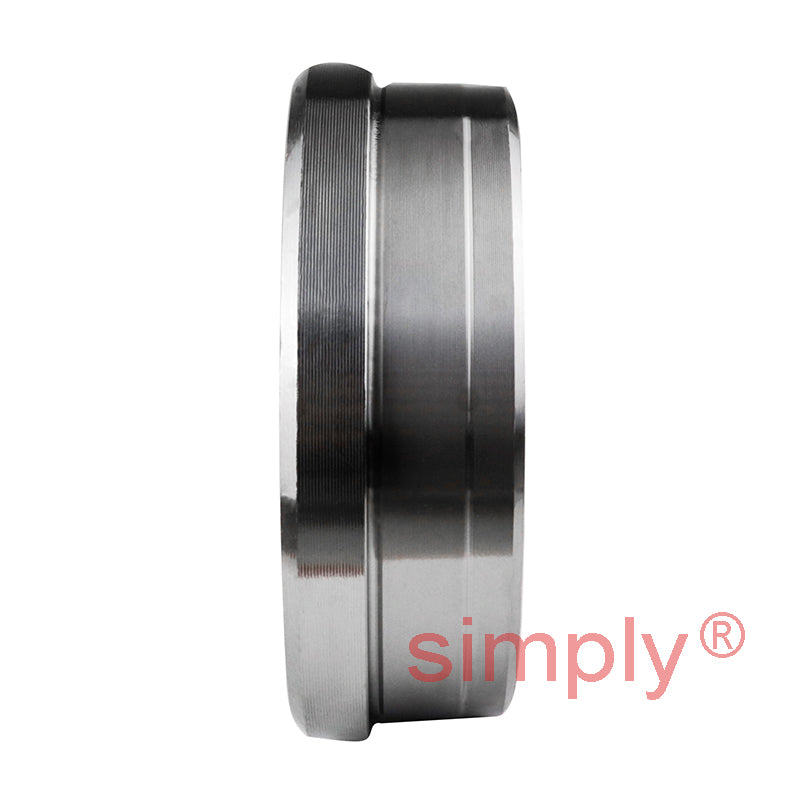

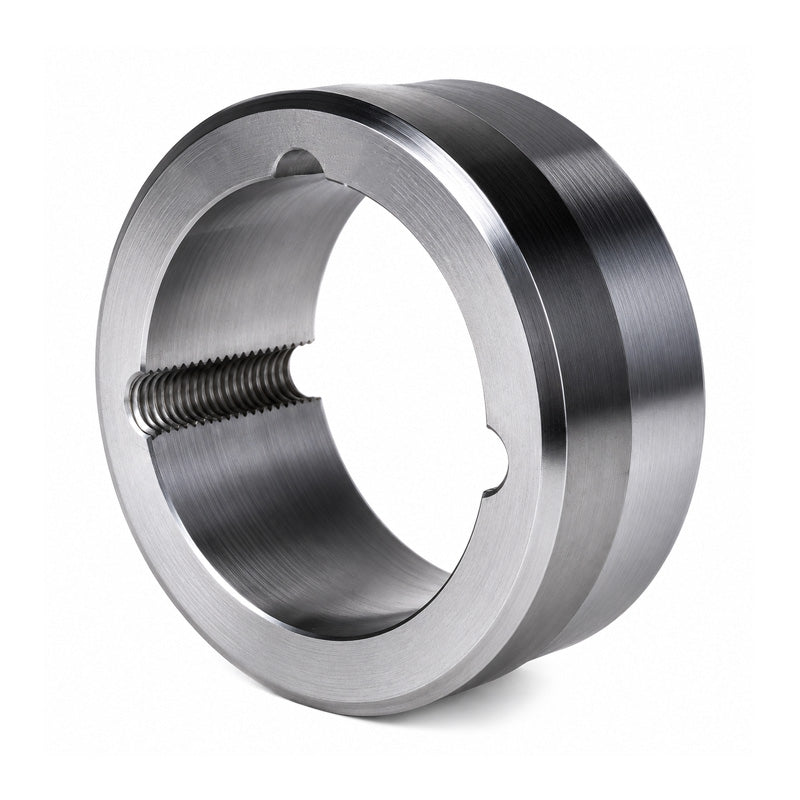

Major Brand WH16-1 Weld on Hub Shaft Fixing with Tapered Bore
Major Brand WH16-1 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
$25.26
ex VAT
Regular price
Sale price
$25.26
ex VAT
In stock
Price Break
10+
$22.48
19+
$21.22
29+
$20.97
39+
$20.71
49+
$20.46
74+
$20.21
99+
$18.95
199+
$18.69
249+
$18.44
499+
$18.19
999+
$17.68
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- Major Brand - High Quality
- Bush Size:
- 1610
- Outside Diameter:
- 80mm
- Width:
- 25mm
Technical
Technical
| Hub Reference | WH16-1 |
|---|---|
| Bush Number | 1610 |
| A | 80mm |
| B | 75mm |
| C | 74.5mm |
| D | 25mm |
| E | 9mm |
| F | 10mm |
