SKU: WH12-SKF

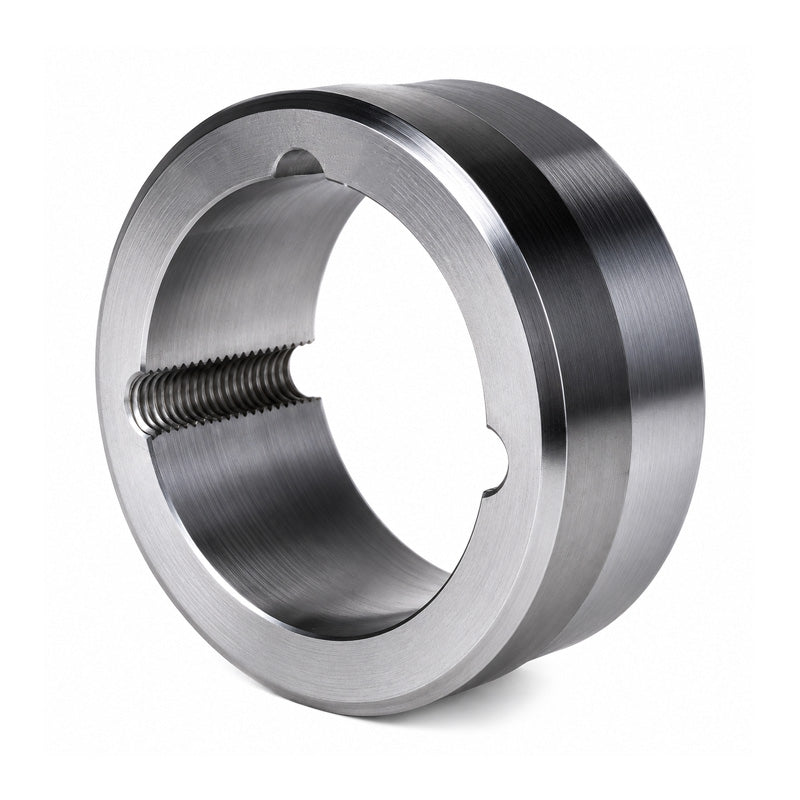

SKF WH12 Weld on Hub Shaft Fixing with Tapered Bore
SKF WH12 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
$70.71
ex VAT
Regular price
Sale price
$70.71
ex VAT
In stock
Price Break
10+
$62.93
19+
$59.40
29+
$58.69
39+
$57.98
49+
$57.28
74+
$56.57
99+
$53.03
199+
$52.33
249+
$51.62
499+
$50.91
999+
$49.50
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 1210
- Outside Diameter:
- 70mm
- Width:
- 25mm
Technical
Technical
| Hub Reference | WH12 |
|---|---|
| Bush Number | 1210 |
| A | 70mm |
| B | 65mm |
| C | 64.5mm |
| D | 25mm |
| E | 9mm |
| F | 10mm |
