SKU: V120S.VIT

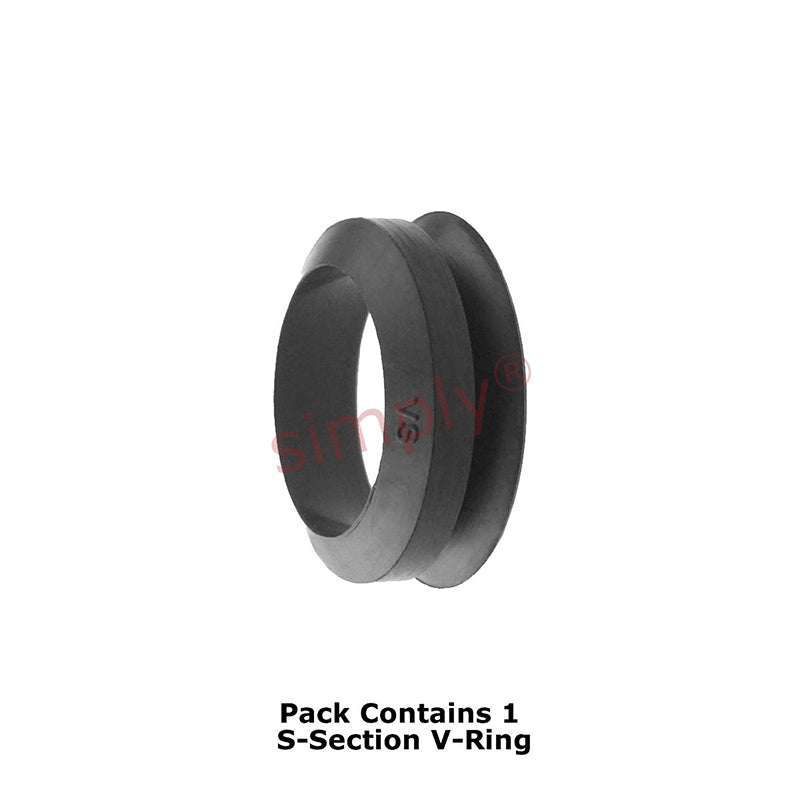

VS120 FKM Rubber V-Ring For Shafts 115-125mm
VS120 FKM Rubber V-Ring For Shafts 115-125mm
Regular price
$14.59
ex VAT
Regular price
Sale price
$14.59
ex VAT
In stock
Price Break
5+
$7.66
10+
$7.35
20+
$7.20
50+
$6.97
100+
$6.81
500+
$6.42
1000+
$5.42
Description
Description
|
S - Section V-Rings - FKM Rubber S-Section V rings have a conical rear face (needs more space than an A section V-ring) and unlike oil seals don't have a rigid steel shell, V-rings are made completely of rubber and therefore can be stretched over fittings, flanges, bearings, couplings, keys etc. They comprise of a single molded body and conical lip. The 'V'-Ring is mounted on and rotates with the shaft, with the lip sealing against the housing or bearing, the body being held in position by its tight grip around the shaft also serving to seal against the shaft. Benefits: Flexible shaft range, inexpensive, durable, accommodates misalignment, deflects greases, oils, liquids, grit, sand etc. |
- Brand / Quality:
- Simply VIT V-Ring - High Quality
- Style:
- S Section V Ring
- Shaft Size:
- 115-125mm
- Hardness:
- * 70 Shore (Most Common)
Technical
Technical
| d1 | 115-125mm |
|---|---|
| d | 108mm |
| c | 7mm |
| B | 18mm |
| d2 | d1 + 4 |
| d3 | d1 + 21 |
| B1 | 15.5mm |
| Axial shaft movement | ?1.5 |
