SKU: UKT208/H2308

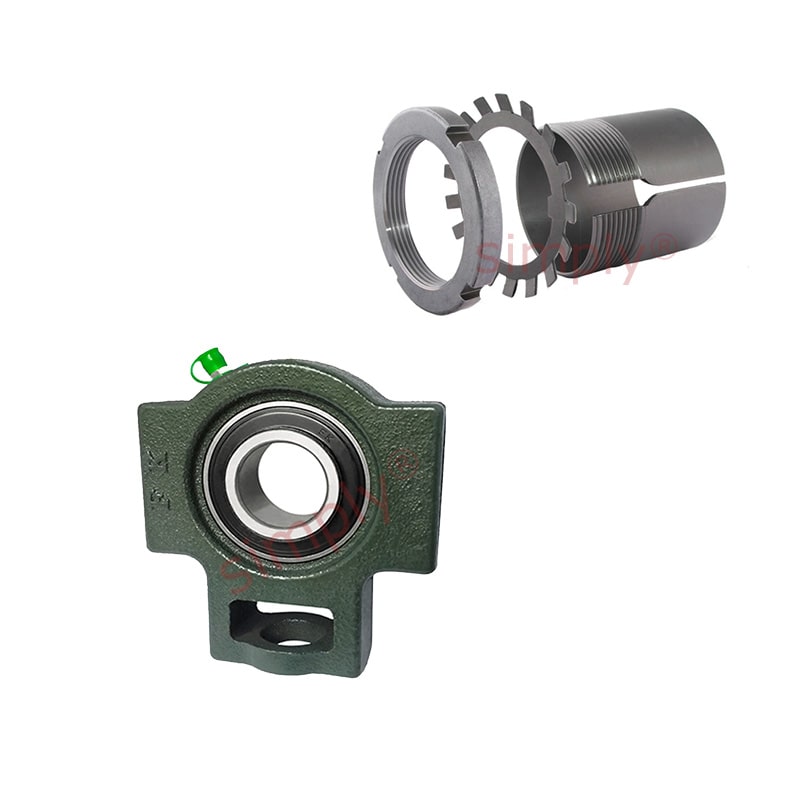

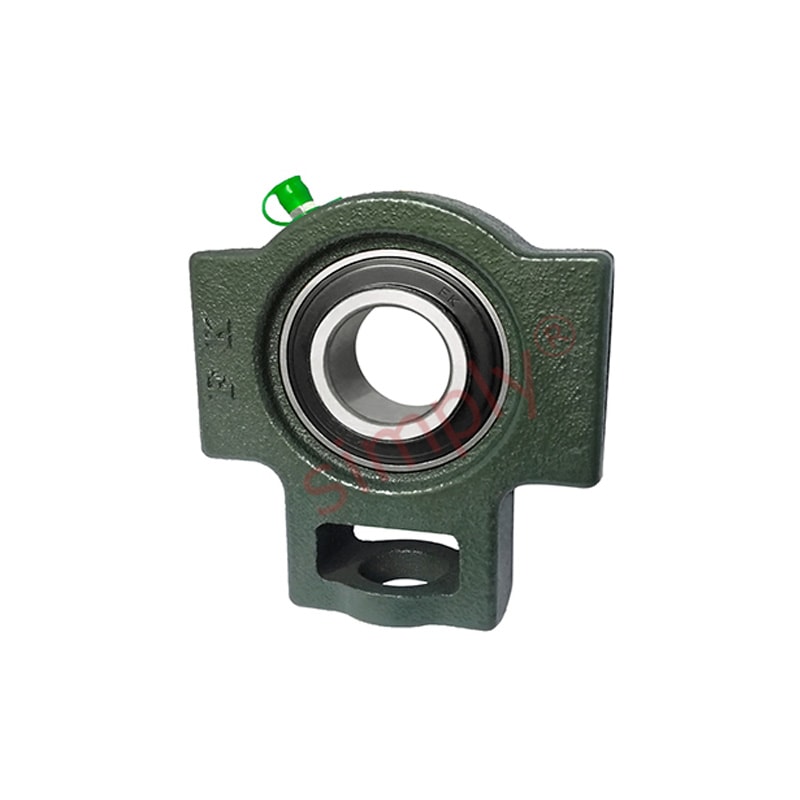

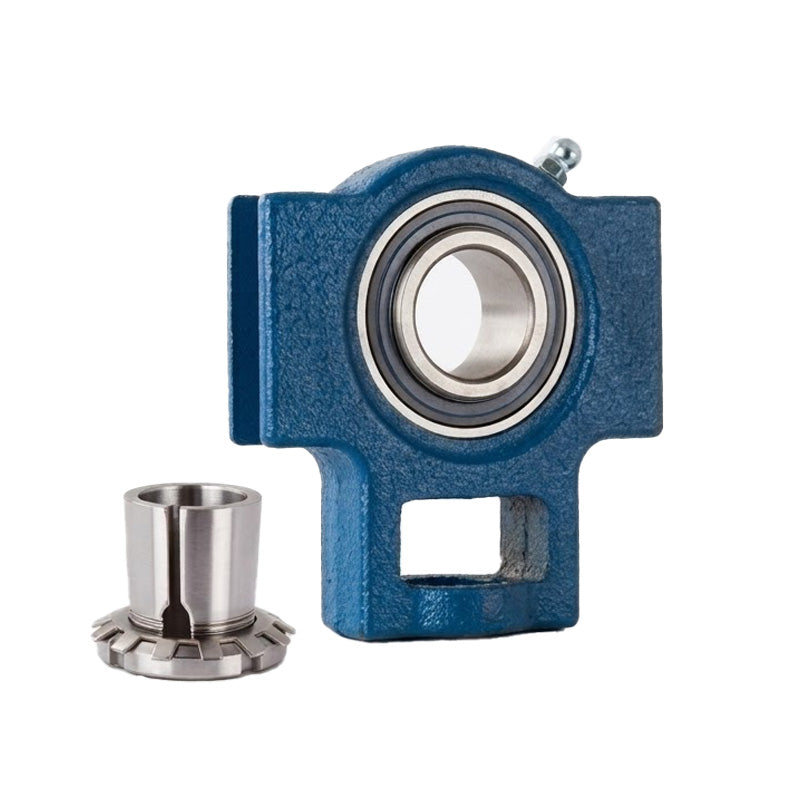

UKT208/H2308 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 35mm Shaft
UKT208/H2308 Metric Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 35mm Shaft
Regular price
$98.15
ex VAT
Regular price
Sale price
$98.15
ex VAT
In stock
Price Break
10+
$87.35
19+
$82.45
29+
$81.46
39+
$80.48
49+
$79.50
74+
$78.52
99+
$73.61
199+
$72.63
249+
$71.65
499+
$70.67
999+
$68.71
Couldn't load pickup availability
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UKT
Technical
Technical
| d | 35mm |
|---|---|
| o | 19mm |
| g | 16mm |
| p | 83mm |
| q | 49mm |
| s | 29mm |
| b | 83mm |
| k | 16mm |
| e | 102mm |
| a | 114mm |
| w | 144mm |
| j | 49mm |
| l | 33mm |
| h | 89mm |
| t | 69mm |
| B1 | 46mm |
| Bearing no | UK208;H2308 |
| Housing no | T208 |
| Weight | 2.5 kg |
