SKU: UKC208/H2308

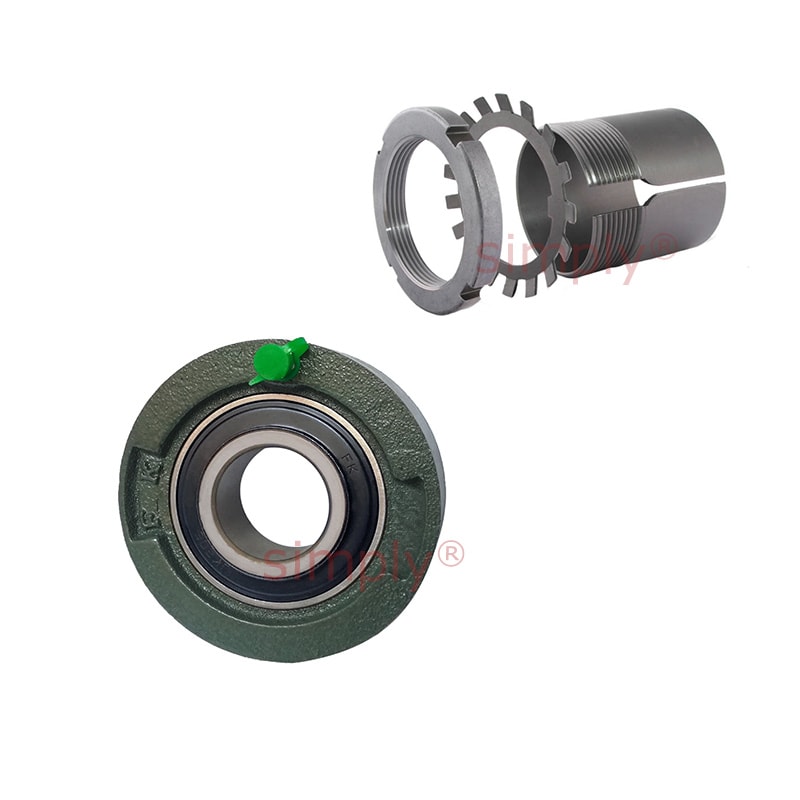

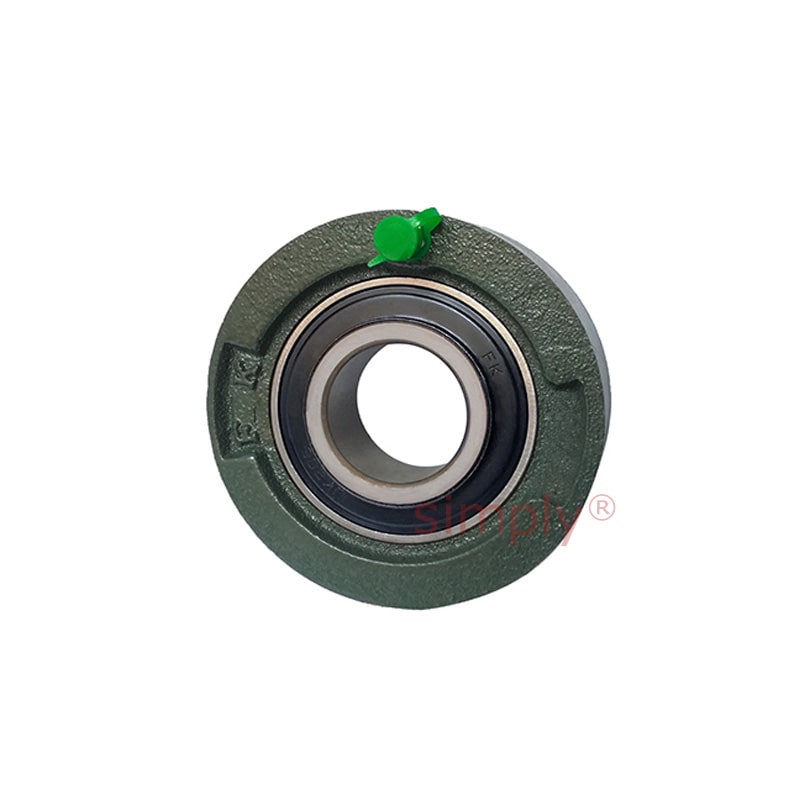

Budget UKC208/H2308 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 35mm Bore Insert 100mm Outside Dia
Budget UKC208/H2308 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 35mm Bore Insert 100mm Outside Dia
Regular price
$79.30
ex VAT
Regular price
Sale price
$79.30
ex VAT
In stock
Price Break
10+
$70.58
19+
$66.61
29+
$65.82
39+
$65.03
49+
$64.23
74+
$63.44
99+
$59.48
199+
$58.68
249+
$57.89
499+
$57.10
999+
$55.51
Couldn't load pickup availability
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 100mm
- Style:
- UKC
Technical
Technical
| Bore d | 35mm |
|---|---|
| Outer Dia a | 100mm |
| g | 30mm |
| r | 2.5mm |
| B | 46mm |
| Bearing No | UK208;H2308 |
| Housing No | C208 |
