SKU: UKC207/HS2307

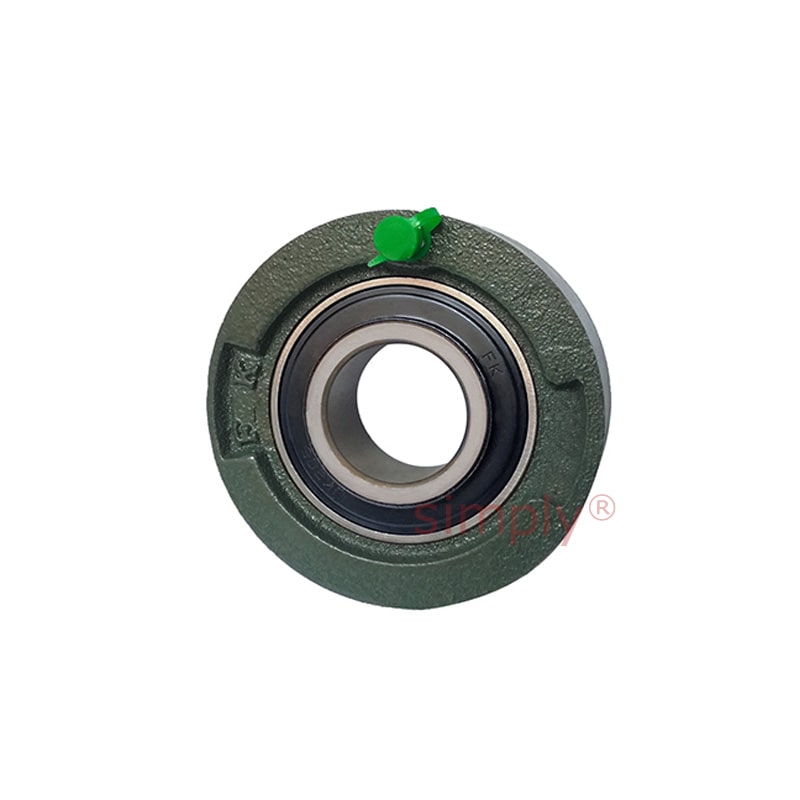

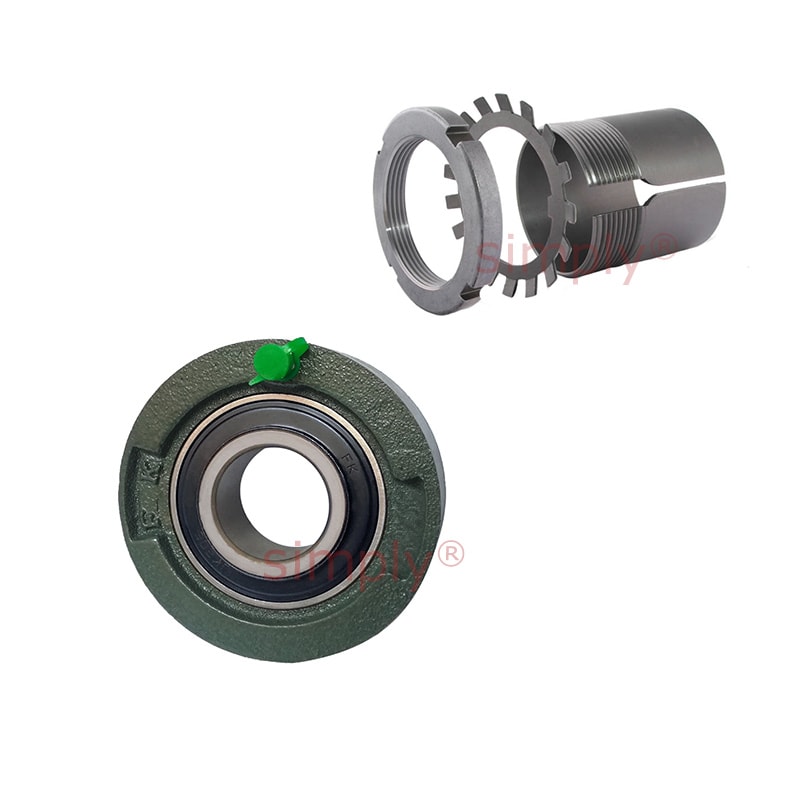

Budget UKC207/HS2307 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-1/8 inch Bore Insert 3.5433 inch Outside Dia
Budget UKC207/HS2307 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-1/8 inch Bore Insert 3.5433 inch Outside Dia
Regular price
$73.64
ex VAT
Regular price
Sale price
$73.64
ex VAT
In stock
Price Break
10+
$65.54
19+
$61.86
29+
$61.12
39+
$60.38
49+
$59.65
74+
$58.91
99+
$55.23
199+
$54.49
249+
$53.76
499+
$53.02
999+
$51.55
Couldn't load pickup availability
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 90mm = 3.5433 inch
- Style:
- UKC
Technical
Technical
| Bore d | 1-1/8 inch |
|---|---|
| Outer Dia a | 3.5433 inch |
| g | 1-7/64 inch |
| r | 0.079 inch |
| B | 1.693 inch |
| Bearing No | UK207;HS2307 |
| Housing No | C207 |
