SKU: UJSPL42X25-MB

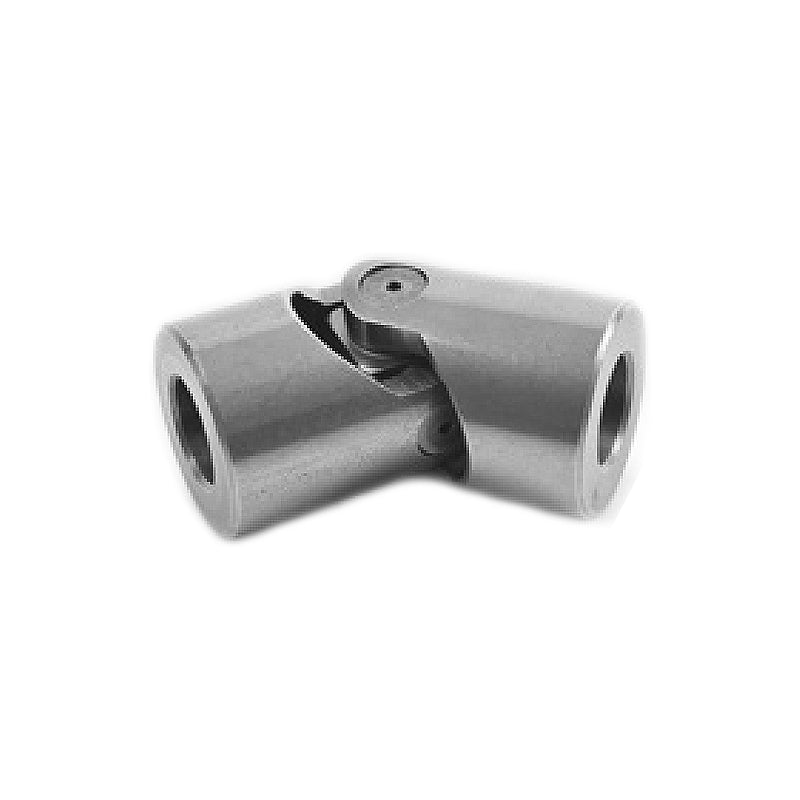

Branded UJSPL42X25 Steel Long Universal Single Joint with Plain Bearing 25x42x108mm
Branded UJSPL42X25 Steel Long Universal Single Joint with Plain Bearing 25x42x108mm
Regular price
$138.76
ex VAT
Regular price
Sale price
$138.76
ex VAT
In stock
Price Break
10+
$123.50
19+
$116.56
29+
$115.17
39+
$113.78
49+
$112.40
74+
$111.01
99+
$104.07
199+
$102.68
249+
$101.29
499+
$99.91
999+
$97.13
Couldn't load pickup availability
Description
Description
UJSP Steel Universal Long Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This long universal joint is single-jointed and is made of steel with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Length:
- 108mm
- Style:
- UJSPL
Technical
Technical

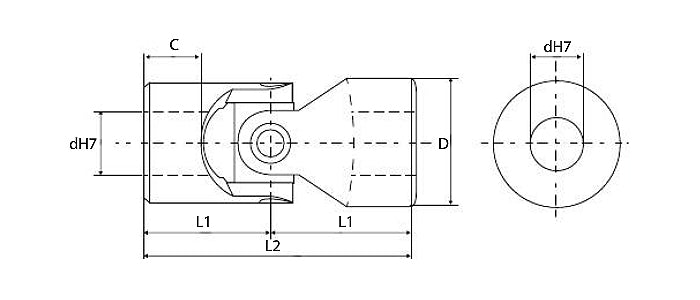

| Bore d H7 | 25mm |
|---|---|
| Diameter D | 42mm |
| Overall length L2 | 108mm |
| Pivot centre L1 | 54mm |
| Hub length C | 31mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Gaiter type | UJG3M42 |
| Weight KG | 0.8 kg |
