SKU: UJSPL25X16-MB

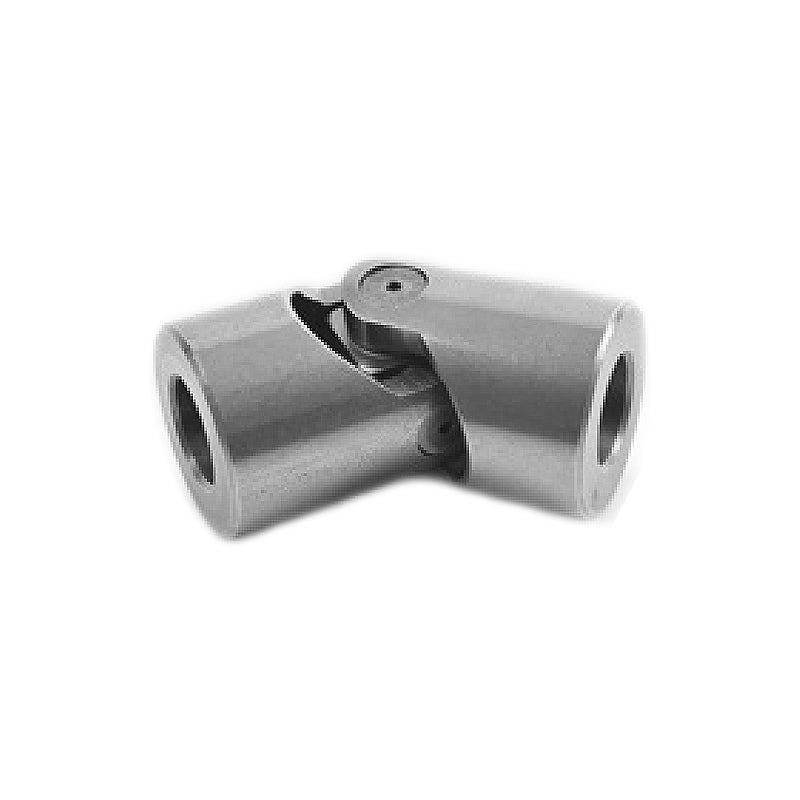

Branded UJSPL25X16 Steel Long Universal Single Joint with Plain Bearing 16x25x74mm
Branded UJSPL25X16 Steel Long Universal Single Joint with Plain Bearing 16x25x74mm
Regular price
$88.11
ex VAT
Regular price
Sale price
$88.11
ex VAT
In stock
Price Break
10+
$78.42
19+
$74.01
29+
$73.13
39+
$72.25
49+
$71.37
74+
$70.49
99+
$66.08
199+
$65.20
249+
$64.32
499+
$63.44
999+
$61.68
Couldn't load pickup availability
Description
Description
UJSP Steel Universal Long Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This long universal joint is single-jointed and is made of steel with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 16mm
- Outside Diameter:
- 25mm
- Length:
- 74mm
- Style:
- UJSPL
Technical
Technical
| Bore d H7 | 16mm |
|---|---|
| Diameter D | 25mm |
| Overall length L2 | 74mm |
| Pivot centre L1 | 37mm |
| Hub length C | 21mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Gaiter type | UJG04M25 |
| Weight KG | 0.2 kg |
