SKU: UJSP58X30-MB

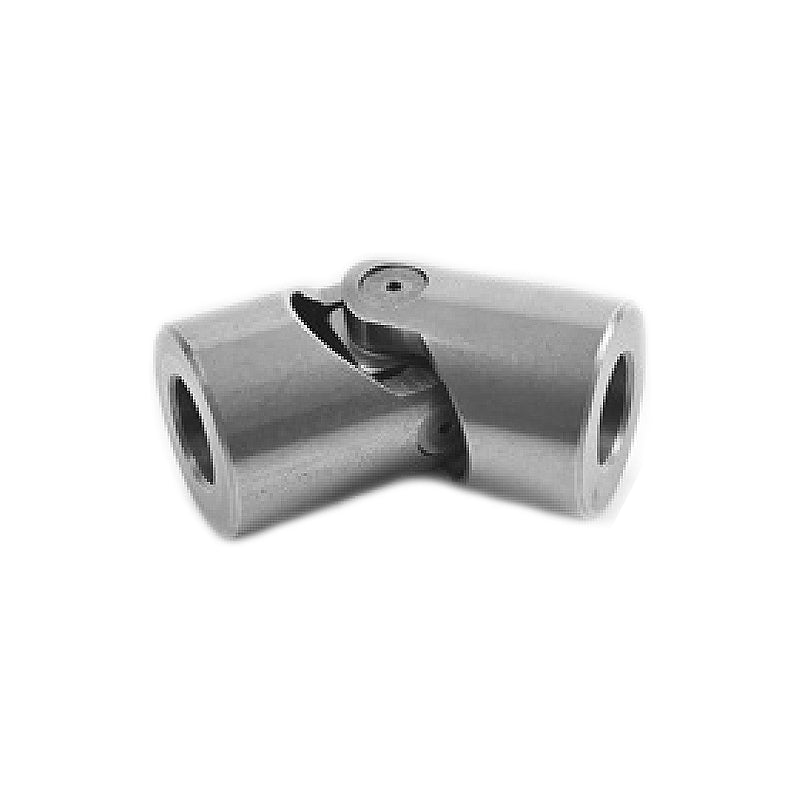

Branded UJSP58X30 Steel Universal Single Joint with Plain Bearing 30x58x122mm
Branded UJSP58X30 Steel Universal Single Joint with Plain Bearing 30x58x122mm
Regular price
$160.85
ex VAT
Regular price
Sale price
$160.85
ex VAT
In stock
Price Break
10+
$143.16
19+
$135.11
29+
$133.51
39+
$131.90
49+
$130.29
74+
$128.68
99+
$120.64
199+
$119.03
249+
$117.42
499+
$115.81
999+
$112.60
Couldn't load pickup availability
Description
Description
UJSP Steel Universal Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of steel with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 30mm
- Outside Diameter:
- 58mm
- Length:
- 122mm
- Style:
- UJSP
Technical
Technical
| Bore d H7 | 30mm |
|---|---|
| Diameter D | 58mm |
| Overall length L2 | 122mm |
| Pivot centre L1 | 61mm |
| Hub length C | 29mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Gaiter type | UJG6M58 |
| Weight KG | 1.85 kg |
