SKU: UJSP45X22-MB

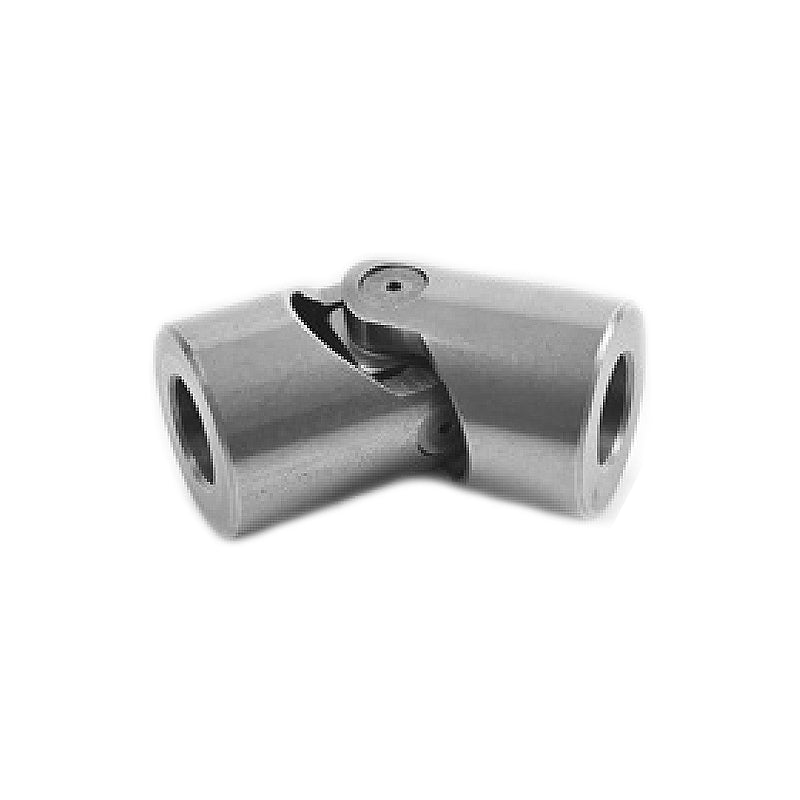

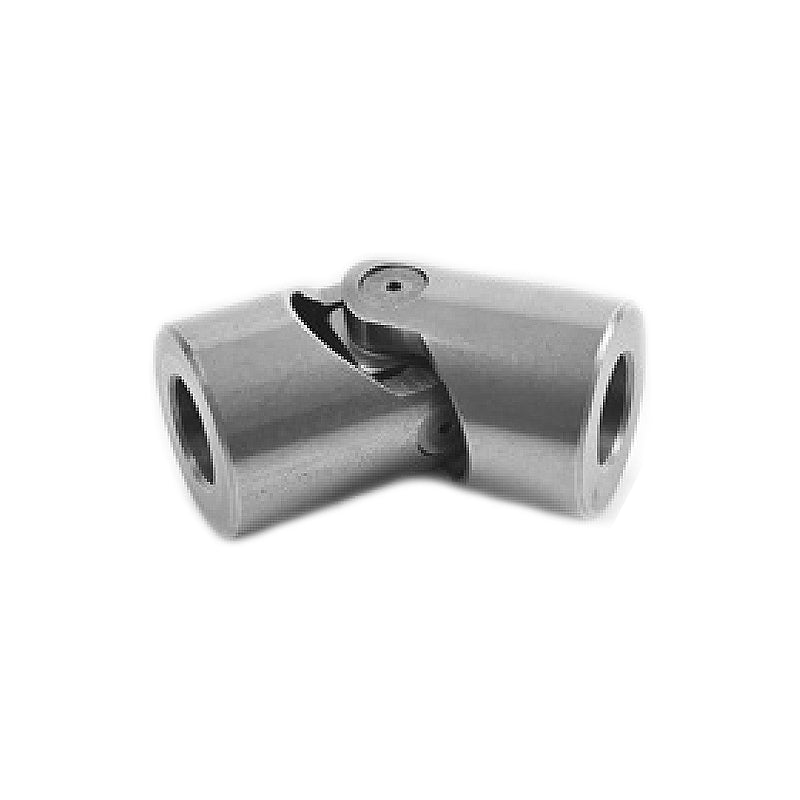

Branded UJSP45X22 Steel Universal Single Joint with Plain Bearing 22x45x95mm - Allow 2-3 Days
Branded UJSP45X22 Steel Universal Single Joint with Plain Bearing 22x45x95mm - Allow 2-3 Days
Regular price
$138.19
ex VAT
Regular price
Sale price
$138.19
ex VAT
In stock
Price Break
10+
$122.99
19+
$116.08
29+
$114.70
39+
$113.32
49+
$111.93
74+
$110.55
99+
$103.64
199+
$102.26
249+
$100.88
499+
$99.50
999+
$96.73
Couldn't load pickup availability
Description
Description
UJSP Steel Universal Single Joint with Plain Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of steel with a plain bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 22mm
- Outside Diameter:
- 45mm
- Length:
- 95mm
- Style:
- UJSP
Technical
Technical

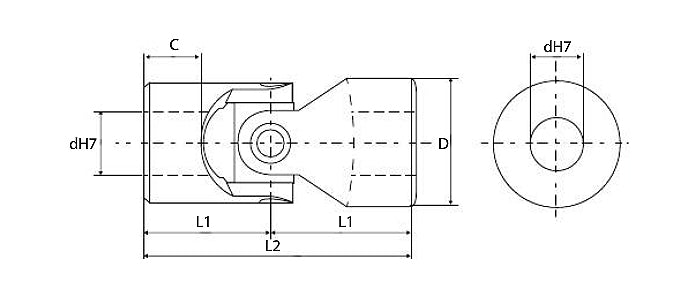

| Bore d H7 | 22mm |
|---|---|
| Diameter D | 45mm |
| Overall length L2 | 95mm |
| Pivot centre L1 | 47.5mm |
| Hub length C | 22mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 1000 rpm |
| Maximum power | 6kW |
| Maximum torque | 600 Nm |
| Gaiter type | UJG4M45 |
| Weight KG | 0.95 kg |
