SKU: UJSN22X10-MB

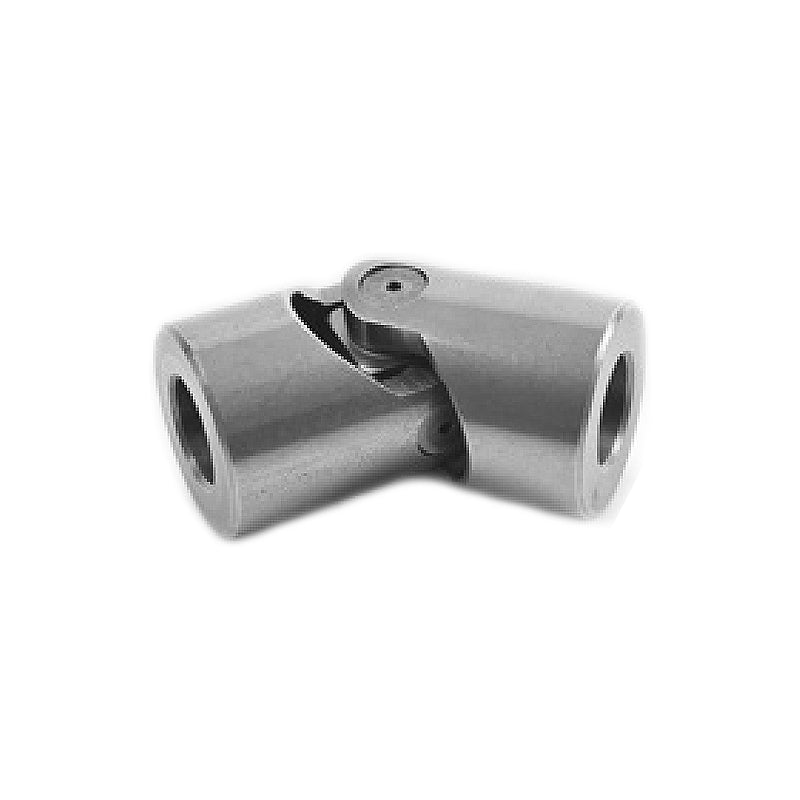

Branded UJSN22X10 Steel Universal Single Joint with Needle Roller Bearing 10x22x48mm
Branded UJSN22X10 Steel Universal Single Joint with Needle Roller Bearing 10x22x48mm
Regular price
$140.33
ex VAT
Regular price
Sale price
$140.33
ex VAT
In stock
Price Break
10+
$124.89
19+
$117.88
29+
$116.47
39+
$115.07
49+
$113.67
74+
$112.26
99+
$105.25
199+
$103.84
249+
$102.44
499+
$101.04
999+
$98.23
Couldn't load pickup availability
Description
Description
UJSN Steel Universal Single Joint with Needle Roller Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features a single hinge at 90 degrees, connected by a cross shaft. This universal joint is single-jointed and is made of steel with a needle roller bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
- Brand / Quality:
- Simply Universal Joints
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Length:
- 48mm
- Style:
- UJSN
Technical
Technical
| Bore d H7 | 10mm |
|---|---|
| Diameter D | 22mm |
| Overall length L2 | 48mm |
| Pivot centre L1 | 24mm |
| Hub length C | 12mm |
| Maximum working angle | 45 degrees |
| Maximum speed | 4000 rpm |
| Maximum power | 40kW |
| Maximum torque | 200 Nm |
| Weight KG | 0.1 kg |
