SKU: UCX.15-48.TS.CHAL

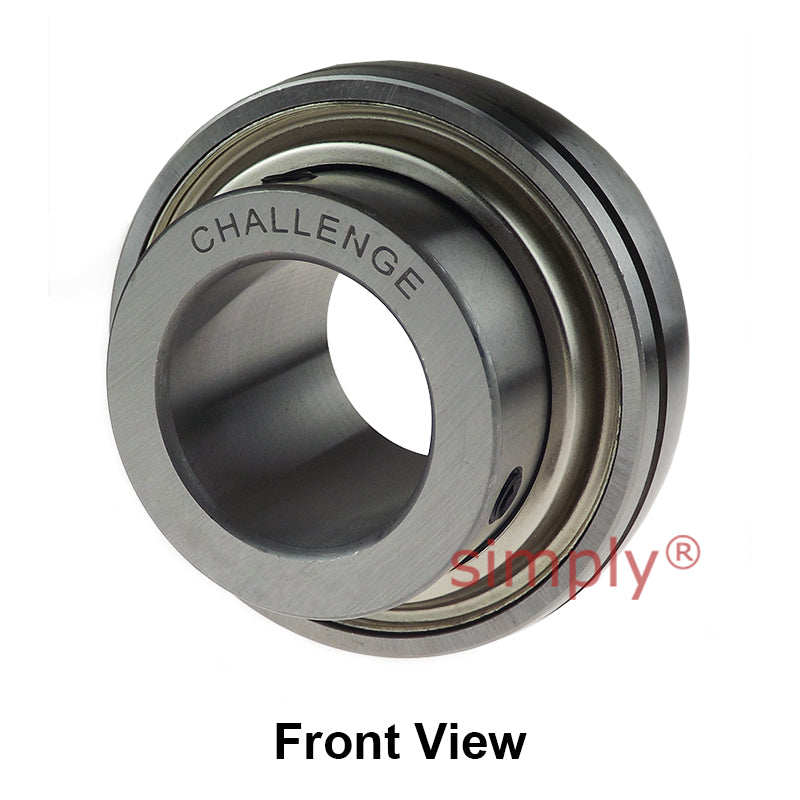

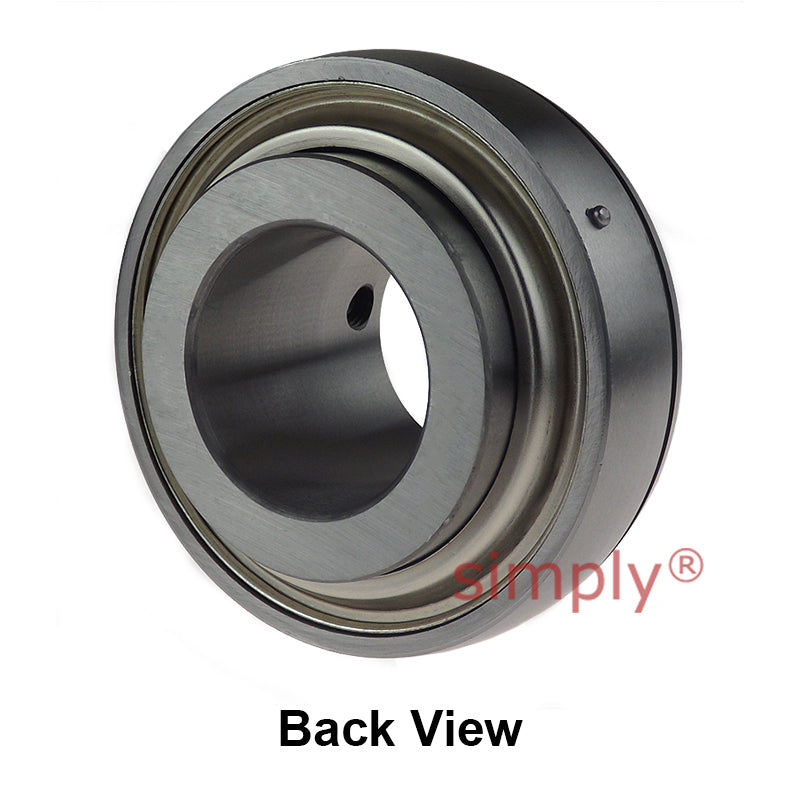

Challenge UCX15-48 Imperial Insert with Grub Screws with 3 inch Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UCX15-48 Imperial Insert with Grub Screws with 3 inch Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
$340.72
ex VAT
Regular price
Sale price
$340.72
ex VAT
Equivalent to: UCX.15-48
In stock
Price Break
10+
$303.24
19+
$286.20
29+
$282.80
39+
$279.39
49+
$275.98
74+
$272.58
99+
$255.54
199+
$252.13
249+
$248.73
499+
$245.32
999+
$238.50
Couldn't load pickup availability
Description
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UCX.15-48
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- UCX
- Type:
- Spherical Outer
Technical
Technical
| Shaft Diameter d | 3 inch |
|---|---|
| Outside Diameter D | 140mm |
| Overall Width Bi | 82.6mm |
| Inner Race Width Be | 33mm |
| Back of Bearing to Centre Line n | 33.3mm |
| Front of Bearing to Centre Line m | 49.3mm |
| Dimension G | 12mm |
| Grub Screws x 2 | 7/16 - 24UNF inch |
| Load Rating (Dynamic) | 5700kg |
| Load Rating (Static) | 4550kg |
| Max Speed | 1200 rev/min |
| Working Temperature | -30°C to +120°C |
