SKU: UCX.06-19
UCX06-19 Imperial Bearing Insert with 1-3/16 inch Bore 72mm Outside Dia
UCX06-19 Imperial Bearing Insert with 1-3/16 inch Bore 72mm Outside Dia
Regular price
$21.14
ex VAT
Regular price
Sale price
$21.14
ex VAT
Equivalent to: 1035-1-3/16G
In stock
Price Break
3+
$9.99
4+
$9.42
9+
$9.31
19+
$9.20
49+
$9.09
99+
$8.98
499+
$8.42
999+
$8.30
1999+
$8.19
2999+
$8.08
4999+
$7.85
Description
Description
|
UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
Equivalent: 1035-1-3/16G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 72mm
- Style:
- UCX

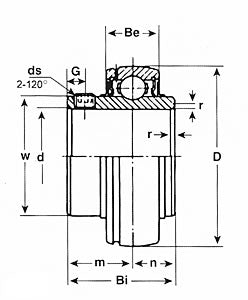

Technical
Technical
| d | 1-3/16 inch |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| n | 17.5mm |
| m | 25.4mm |
| G | 6.5mm |
| Grub screw | 5/16-24-unf |
| Weight | 0.58 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
