SKU: UCTX16D1-NTN

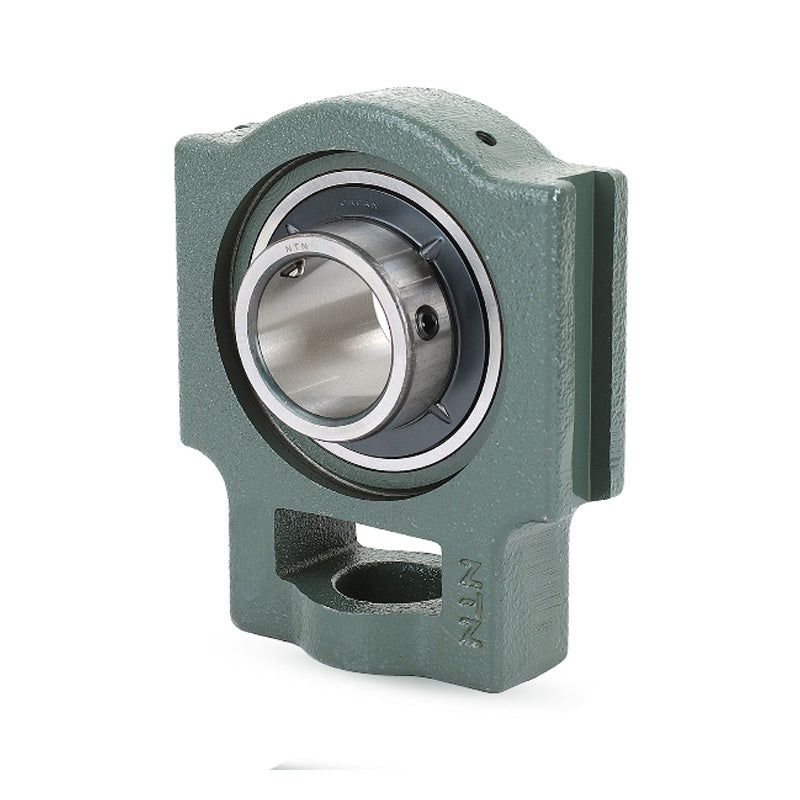

NTN UCTX16D1 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit - Allow 2-3 Days
NTN UCTX16D1 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit - Allow 2-3 Days
Regular price
$425.01
ex VAT
Regular price
Sale price
$425.01
ex VAT
In stock
Price Break
3+
$200.72
4+
$189.45
9+
$187.19
19+
$184.93
49+
$182.68
99+
$180.42
499+
$169.15
999+
$166.89
1999+
$164.64
2999+
$162.38
4999+
$157.87
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCTX
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| N<sub>1</sub> | 38mm |
| L<sub>2</sub> | 30mm |
| H<sub>2</sub> | 124mm |
| N<sub>2</sub> | 73mm |
| N | 48mm |
| L<sub>3</sub> | 157mm |
| A<sub>1</sub> | 28mm |
| H<sub>1</sub> | 173mm |
| H | 198mm |
| L | 260mm |
| A<sub>2</sub> | 54mm |
| A | 73mm |
| r | 98mm |
| L<sub>1</sub> | 162mm |
| B | 85.7mm |
| S | 34.1mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 92 kN |
| Static load C<sub>0r</sub> | 64 kN |
| Fatigue load limit C<sub>u</sub> | 4.6 kN |
| --- | Unit information |
| Mass | 11 kg |
