SKU: UCTX12-38

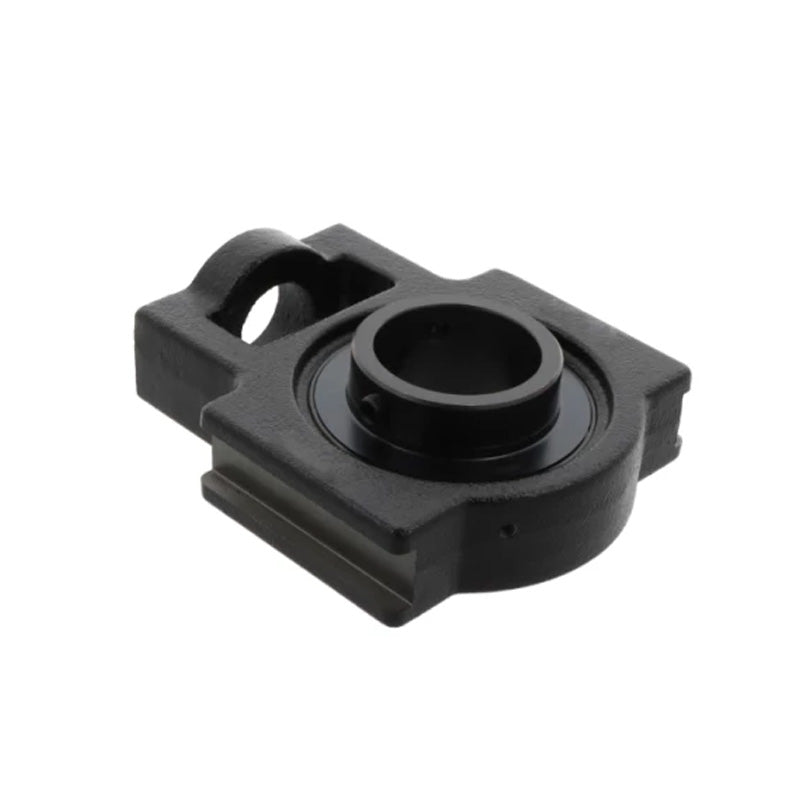

UCTX12-38 Imperial Cast Iron Take Up Unit Housing with 2-3/8 inch Bore Insert
UCTX12-38 Imperial Cast Iron Take Up Unit Housing with 2-3/8 inch Bore Insert
Regular price
$186.93
ex VAT
Regular price
Sale price
$186.93
ex VAT
In stock
Price Break
10+
$166.37
19+
$157.02
29+
$155.15
39+
$153.28
49+
$151.41
74+
$149.54
99+
$140.20
199+
$138.33
249+
$136.46
499+
$134.59
999+
$130.85
Couldn't load pickup availability
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Style:
- UCTX
Technical
Technical
| d | 2-3/8 inch |
|---|---|
| o | 1-17/64 inch |
| g | 29/32 inch |
| p | 4-3/8 inch |
| q | 2-3/4 inch |
| s | 1-39/64 inch |
| b | 4-49/64 inch |
| k | 1.024 inch |
| e | 5-15/16 inch |
| a | 6-37/64 inch |
| w | 8-13/16 inch |
| j | 1-57/64 inch |
| l | 2-3/4 inch |
| h | 5-25/64 inch |
| B | 2.563 inch |
| n | 1 inch |
| Bearing no | UCX12-38 |
| Housing no | TX12 |
| Weight | 7.3 kg |
