SKU: UCTX06-20

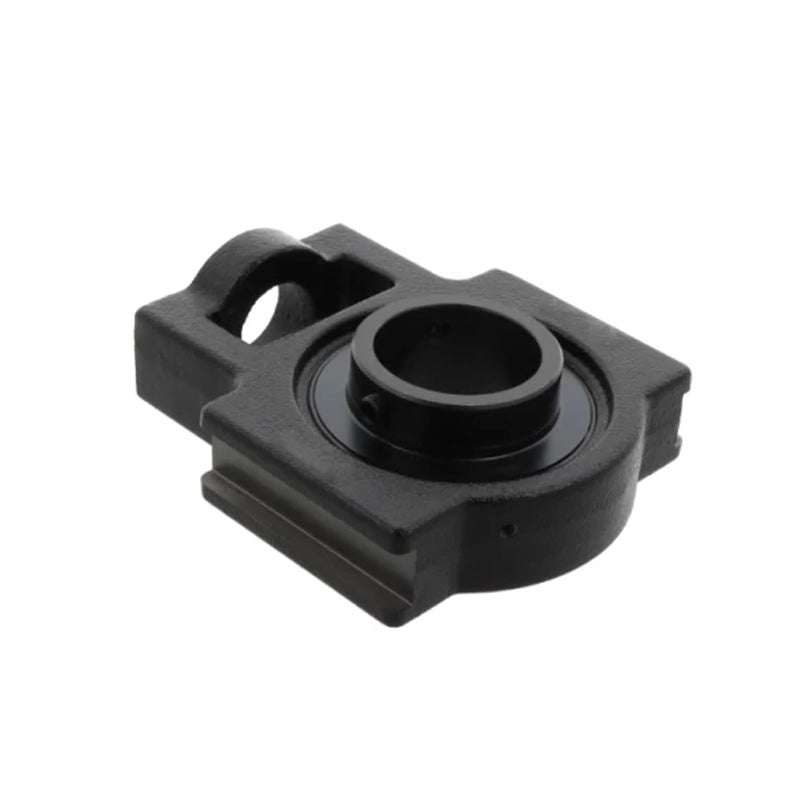

UCTX06-20 Imperial Cast Iron Take Up Unit Housing with 1-1/4 inch Bore Insert
UCTX06-20 Imperial Cast Iron Take Up Unit Housing with 1-1/4 inch Bore Insert
Regular price
$27.49
ex VAT
Regular price
Sale price
$27.49
ex VAT
In stock
Price Break
3+
$12.99
4+
$12.26
9+
$12.11
19+
$11.96
49+
$11.82
99+
$11.67
499+
$10.94
999+
$10.80
1999+
$10.65
2999+
$10.50
4999+
$10.21
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCTX
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| o | 5/8 inch |
| g | 19/32 inch |
| p | 2-33/64 inch |
| q | 1-29/64 inch |
| s | 55/64 inch |
| b | 2-33/64 inch |
| k | 0.472 inch |
| e | 3-1/2 inch |
| a | 4-1/64 inch |
| w | 5-5/64 inch |
| j | 1-3/16 inch |
| l | 1-29/64 inch |
| h | 3-5/64 inch |
| B | 1.689 inch |
| n | 0.689 inch |
| Bearing no | UCX06-20 |
| Housing no | TX06 |
| Weight | 1.6 kg |
