SKU: UCTX06

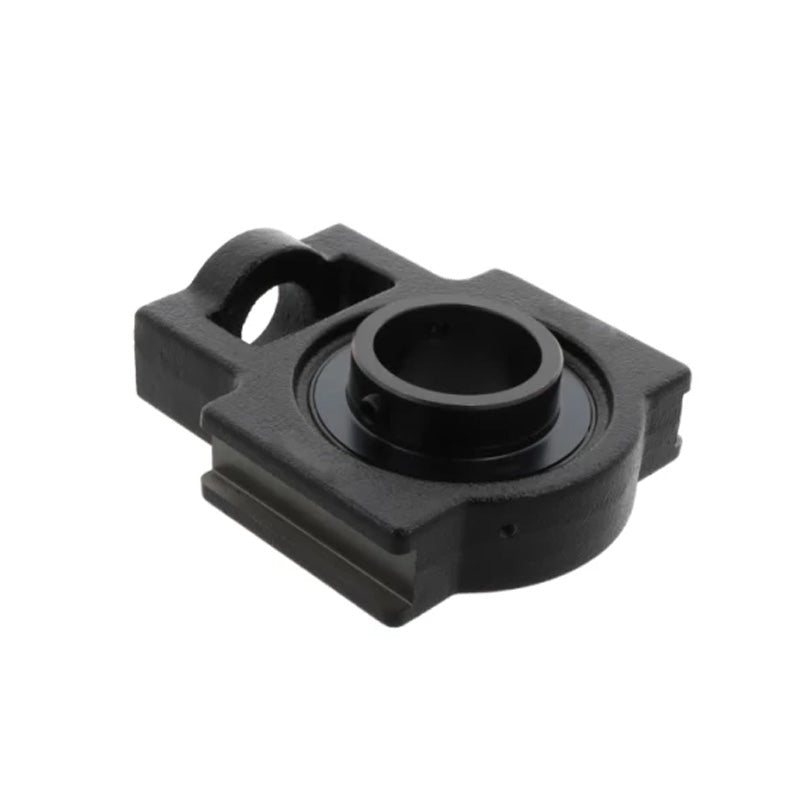

UCTX06 Metric Cast Iron Take Up Unit Housing with 30mm Bore Insert
UCTX06 Metric Cast Iron Take Up Unit Housing with 30mm Bore Insert
Regular price
$45.47
ex VAT
Regular price
Sale price
$45.47
ex VAT
In stock
Price Break
10+
$40.47
19+
$38.19
29+
$37.74
39+
$37.29
49+
$36.83
74+
$36.38
99+
$34.10
199+
$33.65
249+
$33.19
499+
$32.74
999+
$31.83
Couldn't load pickup availability
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCTX
Technical
Technical
| d | 30mm |
|---|---|
| o | 16mm |
| g | 15mm |
| p | 64mm |
| q | 37mm |
| s | 22mm |
| b | 64mm |
| k | 12mm |
| e | 89mm |
| a | 102mm |
| w | 129mm |
| j | 30mm |
| l | 37mm |
| h | 78mm |
| B | 42.9mm |
| n | 17.5mm |
| Bearing no | UCX06 |
| Housing no | TX06 |
| Weight | 1.6 kg |
