SKU: UCT314

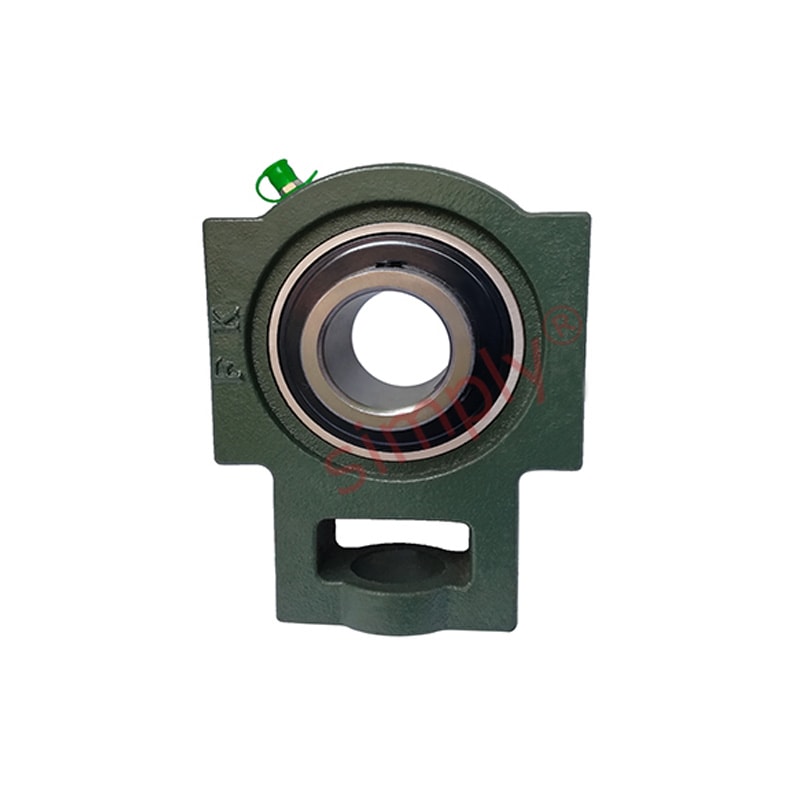

UCT314 Metric Cast Iron Take Up Unit Housing with 70mm Bore Insert
UCT314 Metric Cast Iron Take Up Unit Housing with 70mm Bore Insert
Regular price
$198.52
ex VAT
Regular price
Sale price
$198.52
ex VAT
In stock
Price Break
10+
$176.68
19+
$166.76
29+
$164.77
39+
$162.79
49+
$160.80
74+
$158.82
99+
$148.89
199+
$146.90
249+
$144.92
499+
$142.93
999+
$138.96
Couldn't load pickup availability
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- UCT

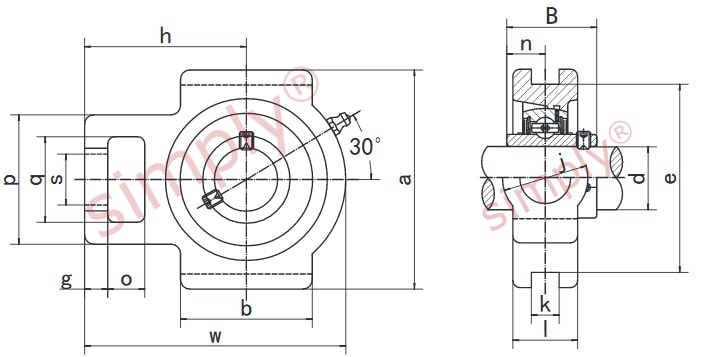

Technical
Technical
| d | 70mm |
|---|---|
| o | 36mm |
| g | 27mm |
| p | 130mm |
| q | 85mm |
| s | 46mm |
| b | 140mm |
| k | 26mm |
| e | 180mm |
| a | 202mm |
| w | 252mm |
| j | 90mm |
| l | 52mm |
| h | 155mm |
| B | 78mm |
| n | 33mm |
| Bearing no | UC314 |
| Housing no | T314 |
| Weight | 10.9 kg |
