SKU: UCT212D1-NTN

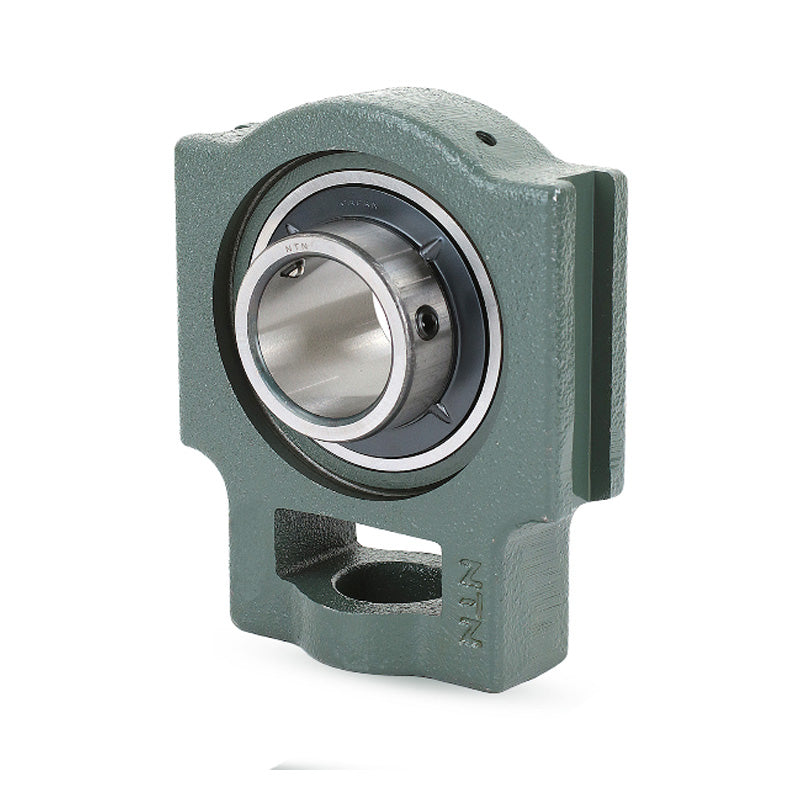

NTN UCT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit - Allow 2-3 Days
NTN UCT212D1 Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit - Allow 2-3 Days
Regular price
$135.40
ex VAT
Regular price
Sale price
$135.40
ex VAT
In stock
Price Break
10+
$120.51
19+
$113.74
29+
$112.38
39+
$111.03
49+
$109.67
74+
$108.32
99+
$101.55
199+
$100.20
249+
$98.84
499+
$97.49
999+
$94.78
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| N<sub>1</sub> | 32mm |
| L<sub>2</sub> | 21mm |
| H<sub>2</sub> | 102mm |
| N<sub>2</sub> | 64mm |
| N | 35mm |
| L<sub>3</sub> | 102mm |
| A<sub>1</sub> | 22mm |
| H<sub>1</sub> | 130mm |
| H | 146mm |
| L | 194mm |
| A<sub>2</sub> | 42mm |
| A | 64mm |
| r | 75mm |
| L<sub>1</sub> | 119mm |
| B | 65.1mm |
| S | 25.4mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58 kN |
| Static load C<sub>0r</sub> | 36 kN |
| Fatigue load limit C<sub>u</sub> | 2.83 kN |
| --- | Unit information |
| Mass | 4.8 kg |
