SKU: UCT.207-23

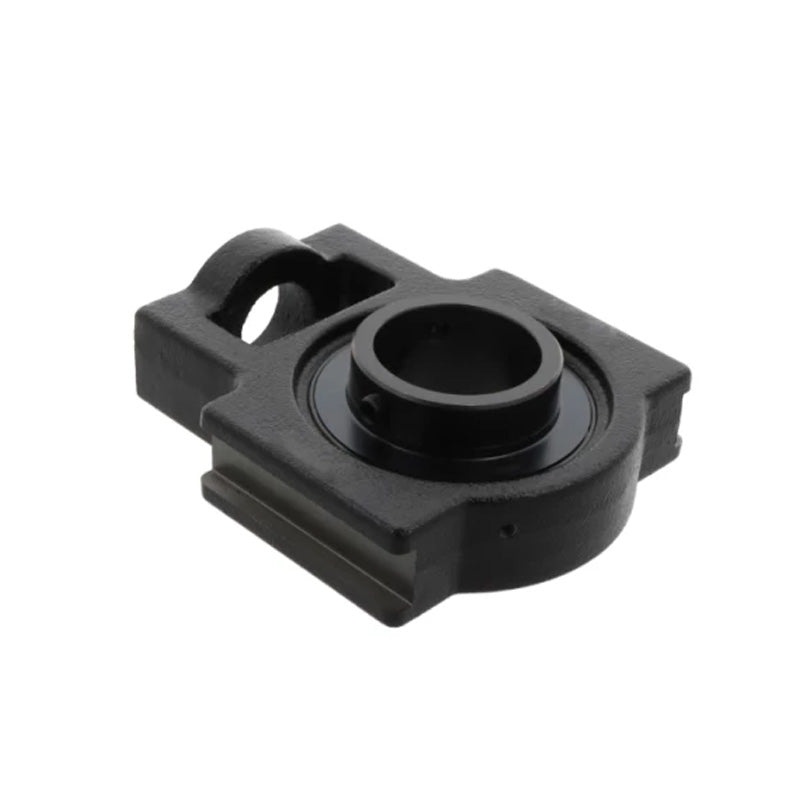

UCT207-23 Metric Series Cast Iron Take Up Unit Housing with 1-7/16 inch Bore Bearing Unit
UCT207-23 Metric Series Cast Iron Take Up Unit Housing with 1-7/16 inch Bore Bearing Unit
Regular price
$19.13
ex VAT
Regular price
Sale price
$19.13
ex VAT
In stock
Price Break
3+
$9.03
4+
$8.53
9+
$8.42
19+
$8.32
49+
$8.22
99+
$8.12
499+
$7.61
999+
$7.51
1999+
$7.41
2999+
$7.31
4999+
$7.11
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- UCT
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| o | 16mm |
| g | 13mm |
| p | 64mm |
| q | 37mm |
| s | 22mm |
| b | 64mm |
| k | 12mm |
| e | 89mm |
| a | 102mm |
| W | 129mm |
| j | 37mm |
| L | 30mm |
| h | 78mm |
| Bi | 42.9mm |
| n | 17.5mm |
| Weight | 1.3 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
