SKU: UCT.205-16

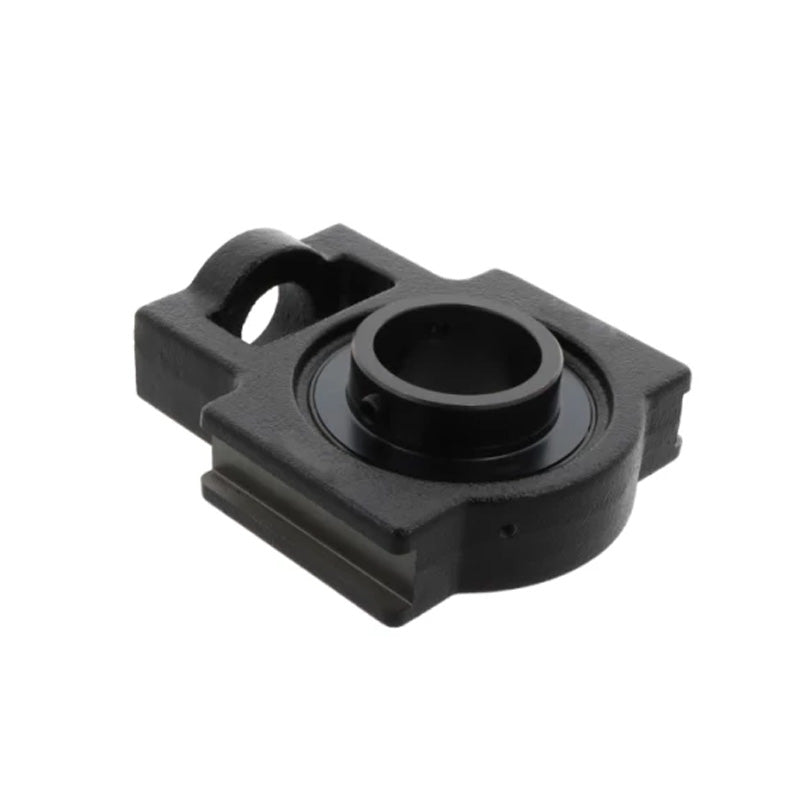

UCT205-16 Metric Series Cast Iron Take Up Unit Housing with 1 inch Bore Bearing Unit
UCT205-16 Metric Series Cast Iron Take Up Unit Housing with 1 inch Bore Bearing Unit
Regular price
$16.77
ex VAT
Regular price
Sale price
$16.77
ex VAT
Equivalent to: ST1
In stock
Price Break
3+
$7.92
4+
$7.48
9+
$7.39
19+
$7.30
49+
$7.21
99+
$7.12
499+
$6.68
999+
$6.59
1999+
$6.50
2999+
$6.41
4999+
$6.23
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: ST1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- UCT
Technical
Technical
| d | 1 inch |
|---|---|
| o | 16mm |
| g | 10mm |
| p | 51mm |
| q | 32mm |
| s | 19.mm |
| b | 51mm |
| k | 12mm |
| e | 76mm |
| a | 89mm |
| W | 97mm |
| j | 32mm |
| L | 24mm |
| h | 62mm |
| Bi | 34mm |
| n | 14.3mm |
| Weight | 0.83 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
