SKU: UCS.202-16

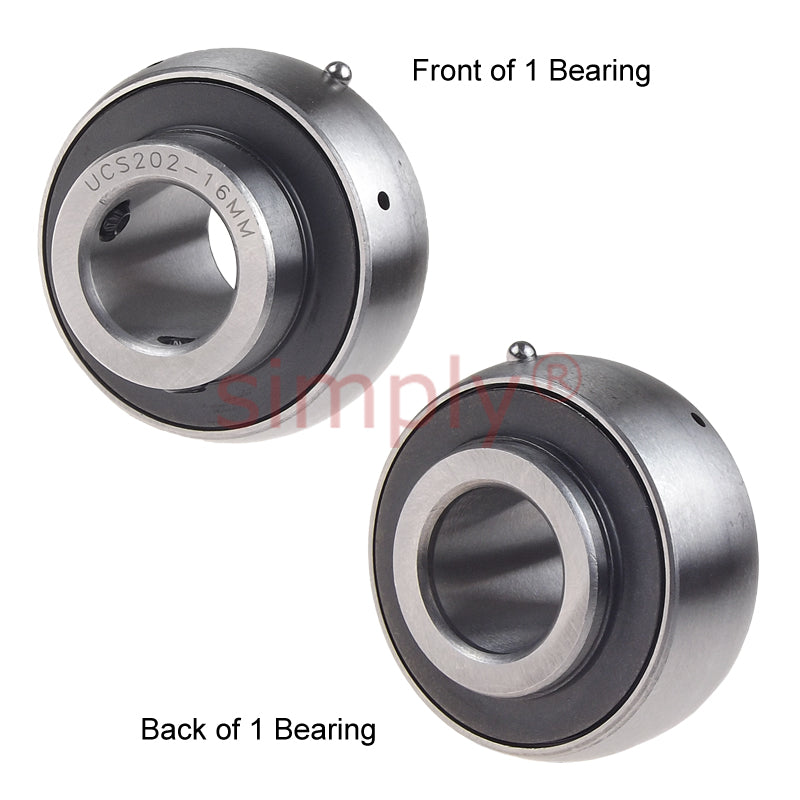

UCS202-16 Metric Spherical Bearing Insert with 16mm Bore 40mm Outside Dia
UCS202-16 Metric Spherical Bearing Insert with 16mm Bore 40mm Outside Dia
Regular price
$13.30
ex VAT
Regular price
Sale price
$13.30
ex VAT
Equivalent to: RB202-16
In stock
Price Break
10+
$11.84
19+
$11.17
29+
$11.04
39+
$10.91
49+
$10.77
74+
$10.64
99+
$9.98
199+
$9.84
249+
$9.71
499+
$9.58
999+
$9.31
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: RB202-16
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 40mm
- Type:
- Spherical Outer
Technical
Technical
| d | 16mm |
|---|---|
| D | 40mm |
| Bi | 27.4mm |
| Be | 14mm |
| N | 11.5mm |
| M | 15.9mm |
| G | 4mm |
| ds | M5x0.8 |
| Dynamic Load | 9600 N |
| Static Load | 4600 N |
| Weight | 0.11 kg |
