SKU: UCPX.18

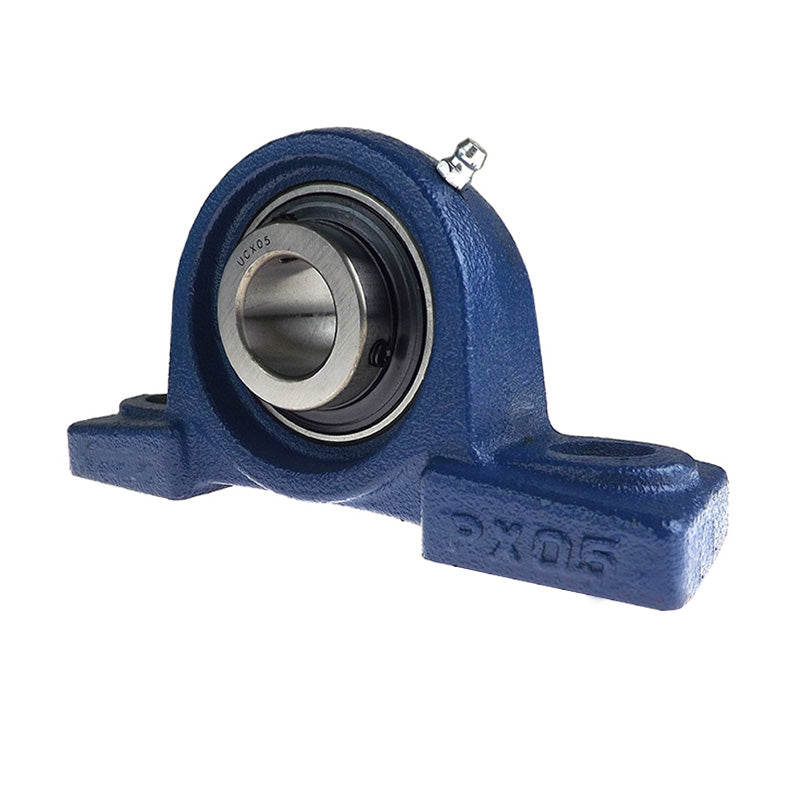

UCPX18 Metric Two Bolt Cast Iron Pillow / Plummer Block Housing with 90mm Bore Insert
UCPX18 Metric Two Bolt Cast Iron Pillow / Plummer Block Housing with 90mm Bore Insert
Regular price
$107.13
ex VAT
Regular price
Sale price
$107.13
ex VAT
In stock
Price Break
3+
$50.60
4+
$47.75
9+
$47.19
19+
$46.62
49+
$46.05
99+
$45.48
499+
$42.64
999+
$42.07
1999+
$41.50
2999+
$40.93
4999+
$39.80
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Style:
- UCPX
- Bolt Hole Centres:
- 283mm
Technical
Technical
| d | 90mm |
|---|---|
| h | 101.6mm |
| a | 381mm |
| e | 283mm |
| b | 111mm |
| s2 | 60mm |
| s1 | 27mm |
| g | 45mm |
| w | 204mm |
| B1 | 104mm |
| n | 42.9mm |
| Bolt Size | M22 |
| Weight | 18 kg |
| Dynamic load | 10900 kgf |
| Static load | 8170 kgf |
