SKU: UCPX.15-48

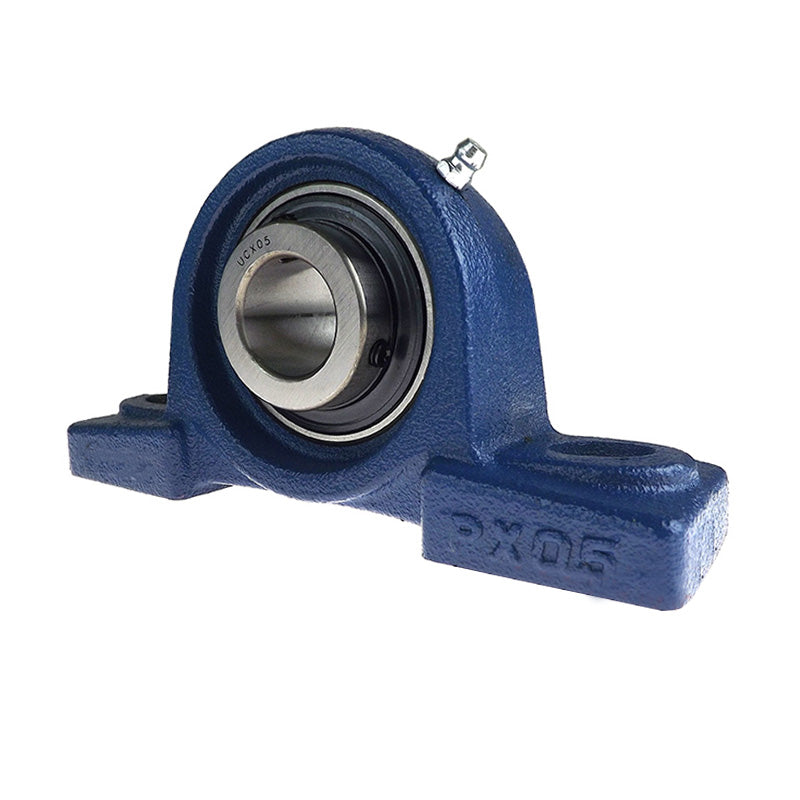

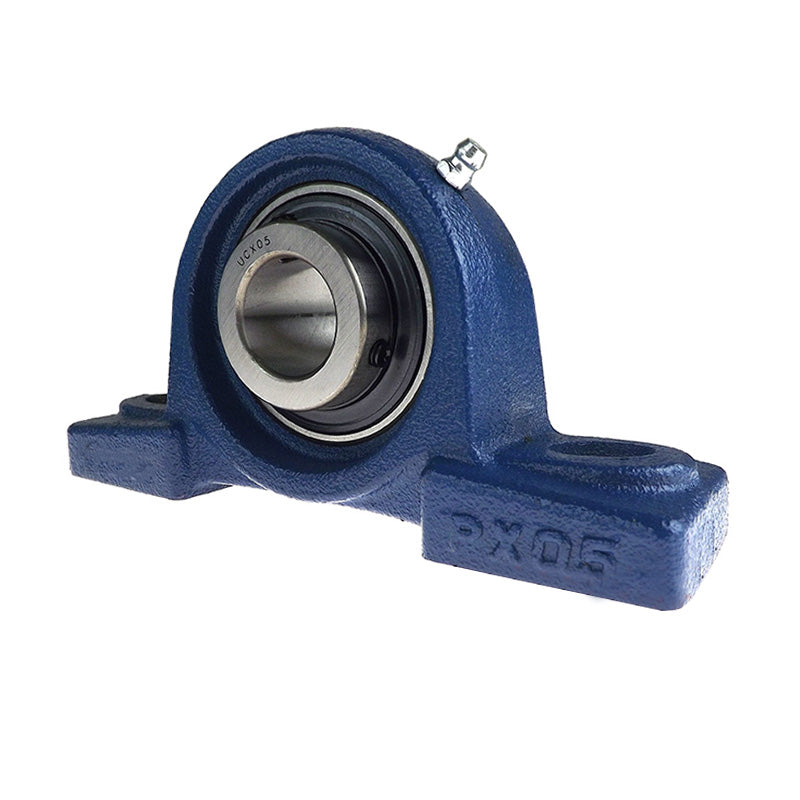

UCPX15-48 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 3 inch Bore Insert
UCPX15-48 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 3 inch Bore Insert
Regular price
$193.14
ex VAT
Regular price
Sale price
$193.14
ex VAT
In stock
Price Break
3+
$91.22
4+
$86.09
9+
$85.07
19+
$84.04
49+
$83.02
99+
$81.99
499+
$76.87
999+
$75.84
1999+
$74.82
2999+
$73.79
4999+
$71.74
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- UCPX
- Bolt Hole Centres:
- 229mm
Technical
Technical
| d | 3 inch |
|---|---|
| h | 88.9mm |
| a | 330mm |
| e | 229mm |
| b | 89mm |
| s2 | 51mm |
| s1 | 27mm |
| g | 35mm |
| w | 175mm |
| B1 | 82.6mm |
| n | 33.3mm |
| Bolt Size | M22 |
| Weight | 11.1 kg |
| Dynamic load | 5700 kgf |
| Static load | 4550 kgf |
